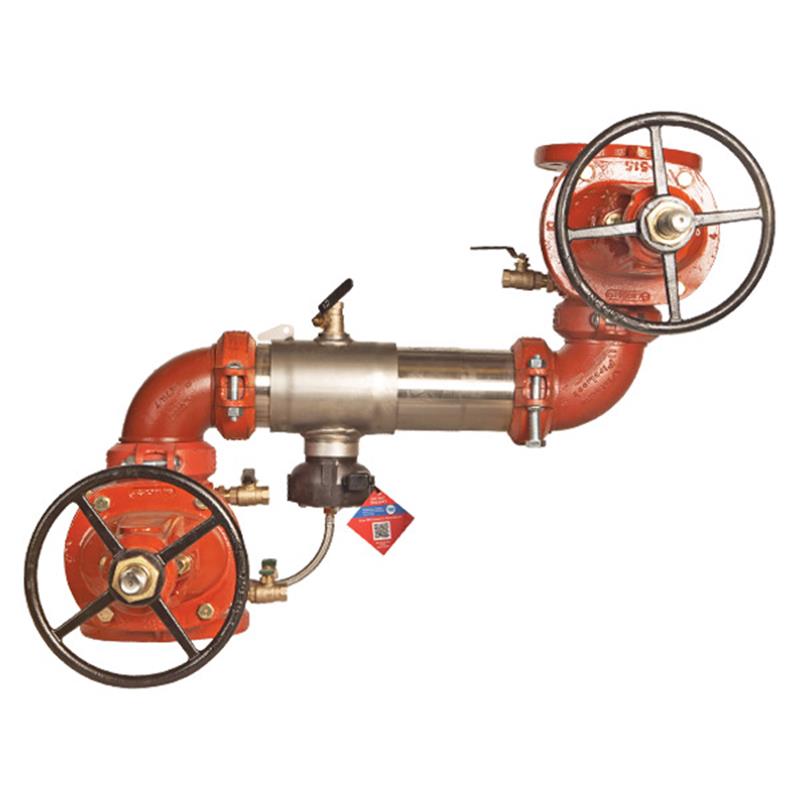

4 C400Z-OSY-FS

Item Number: F0191284
1 1
$9,385.79
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Nominal Size: 4 inch
  • Weight: 252.0 lb
  • Lead Free* construction
  • Housing Material: Type 304 Stainless Steel
  • Flood Sensor: Integrated with SentryPlus Alert® technology
  • Shutoff Valves: OSY Resilient Seated Gate Valves
  • Installation Pattern: Z Pattern Horizontal
  • Maximum Working Pressure: 175 psi
  • Approved: ASSE 1013, CSA B64.4, UL, FM, NSF/ANSI 61-G

Description

This 4-inch Ames C400Z-OSY-FS Reduced Pressure Zone (RPZ) backflow preventer assembly protects potable water systems from contamination caused by backsiphonage or backpressure. Featuring lead-free construction and a Type 304 stainless steel housing, it offers superior durability. The integrated flood sensor with SentryPlus Alert® technology detects excessive relief valve discharge, providing early warning of potential flooding when paired with an add-on connection kit. Its compact Z-pattern horizontal design with OSY shutoffs and grooved connections ensures easy installation and serviceability for continuous pressure applications.

Help Me Connect

Flood Sensor Connectivity

  • An add-on connection kit is required to activate the flood sensor's alert features.
  • Without the connection kit, the flood sensor is a passive component and will not communicate with any other device.
  • Connection kit options include BMS, cellular communication, or the Sensor Control Monitor for integration with BAS via RS‑485 Modbus or the Nexa® platform through Wi-Fi.
View full details

Additional Details

The Colt C400 Reduced Pressure Zone (RPZ) backflow preventer assembly is designed to protect potable water systems from contamination due to backsiphonage and backpressure. This 4-inch lead-free assembly is suitable for health hazard applications and is approved for horizontal Z pattern installation.

This assembly features a stainless steel body with a quick access sleeve, torsion spring check modules, resilient seated gate valves with outside stem and yoke (OSY), test cocks, and a bottom-mounted pressure relief valve. It includes a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve.

Features

  • Lead Free* construction complies with Lead Free* installation requirements (*wetted surface contains less than 0.25% of lead by weight).
  • Extremely compact design, 70% lighter than traditional designs.
  • Type 304 (Schedule 40) stainless steel housing and sleeve.
  • Groove fittings for integral pipeline adjustment and easy installation.
  • Patented link check for lowest pressure loss.
  • Unmatched ease of serviceability with torsion spring check modules.
  • Replaceable check disc rubber.
  • Flood sensor on relief valve for flood detection with SentryPlus Alert® technology.
  • Integrated supervisory switch as an option on each gate valve of the OS&Y model.

NOTICE: An add-on connection kit is required to activate the flood sensor. Without the connection kit, the flood sensor is a passive component and will not communicate with any other device. Use of the flood sensor does not replace the need to comply with all required instructions, codes, and regulations related to installation, operation, and maintenance of this product, including the need to provide proper drainage in the event of a discharge.

Specifications

  • Nominal Size: 4 inch
  • Product Type: Reduced Pressure Zone (RPZ) Backflow Preventer
  • Model: C400Z-OSY-FS
  • Housing & Sleeve Material: Type 304 (Schedule 40) Stainless Steel
  • Elastomers: EPDM, Silicone, Buna 'N'
  • Link Checks: Noryl®, Stainless Steel
  • Check Discs: Reversible Silicone or EPDM
  • Test Cocks: Lead Free* Bronze Body
  • Pins & Fasteners: 300 Series Stainless Steel
  • Springs: Stainless Steel
  • Shutoff Valves: OSY (Outside Stem and Yoke) Resilient Seated Gate Valves
  • Flood Sensor: Integrated with SentryPlus Alert® technology
  • Installation Pattern: Z Pattern Horizontal
  • Temperature Range: 33°F - 140°F (0.5°C - 60°C)
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Weight (OSY): 187 lb (85 kg)

Certificates & Approvals

  • Approved by the Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • AWWA C511-97
  • ASSE 1013
  • CSA B64.4
  • UL Classified
  • FM Approved
  • NSF/ANSI 61-G Certified

FAQs

What is the primary purpose of the Ames C400Z-OSY-FS backflow preventer?

This backflow preventer is designed to protect potable water systems from contamination due to reverse flow caused by backsiphonage or backpressure, ensuring the safety of the water supply.

What does "Lead Free" mean for this backflow preventer?

"Lead Free" means the wetted surface of this product that contacts consumable water contains less than 0.25% of lead by weight, complying with Lead Free installation requirements.

How does the integrated flood sensor with SentryPlus Alert® technology work?

The flood sensor detects excessive water discharges from the relief valve. When paired with an add-on connection kit, it relays a signal that triggers multichannel alerts (call, email, text) to notify personnel of potential flooding.

What materials are used in the construction of the C400Z-OSY-FS assembly?

The housing and sleeve are made from Type 304 (Schedule 40) stainless steel. Elastomers include EPDM, silicone, and Buna 'N', while test cocks are made of Lead Free* bronze.

What installation configurations are supported by this model?

This particular model is approved for horizontal Z pattern installation.
