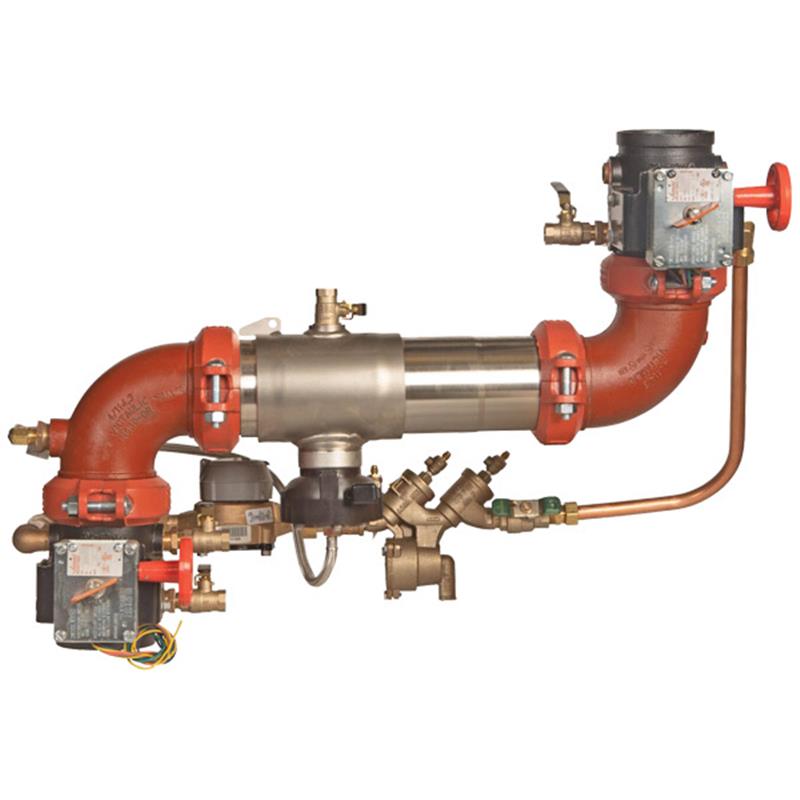

4 C500Z-BFG-C-FS

Item Number: F0191470
1 1
$12,377.99
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • 4 inch Reduced Pressure Detector Backflow Preventer
  • Weight: 166.0 lb
  • Z Pattern, Horizontal installation approved
  • 304 (Schedule 40) Stainless Steel Housing & Sleeve
  • Grooved Gear Operated Butterfly Shutoffs with Tamper Switch
  • SentryPlus Alert® Flood Sensor Technology
  • Cubic Feet Per Minute (CFM) Meter for leak detection
  • Maximum Operating Pressure: 175 psi
  • Temperature Range: 33°F - 140°F

Description

The Colt 4 inch Reduced Pressure Detector Backflow Preventer Assembly with SentryPlus Alert® flood sensor provides critical protection for drinking water supplies against cross-connections in non-potable applications like fire lines or industrial processing. This Z-pattern, horizontal installation assembly features a durable 304 stainless steel housing, grooved gear-operated butterfly shutoff valves with tamper switches, and a CFM meter to detect unauthorized water use or leaks. The integrated flood sensor detects relief valve discharges, activating alerts when paired with an add-on connection kit. It offers a compact design and 175 psi maximum working pressure. Item number F0191470.

Help Me Connect

Connections & Compatibility

  • This 4 inch backflow preventer assembly features grooved gear operated butterfly valves with tamper switches on both the inlet and outlet, allowing for straightforward installation and pipe alignment.
  • The integrated flood sensor with SentryPlus Alert® technology requires an add-on sensor connection kit to activate flood monitoring capabilities and relay alerts. Connection kit options include BMS, cellular communication, and the Sensor Control Monitor which enables integration with BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi.
View full details

Additional Details

The Colt™ 4 inch reduced pressure detector backflow preventer assembly is designed to prevent the reverse flow of fire protection substances and non-potable water into the potable water supply due to backsiphonage and backpressure.

This compact, modular assembly is approved for horizontal Z pattern installation and is specifically designed for fire protection systems and other health-hazard non-potable service applications.

Features

  • Flood sensor with SentryPlus Alert® technology to detect continuous discharge from the relief valve.
  • Add-on sensor connection kit required to activate flood monitoring and relay alerts for potential flooding events.
  • Entire valve body and closure sleeve manufactured from 304 (Schedule 40) stainless steel.
  • Designed for horizontal Z pattern installation.
  • Furnished with a cubic feet per minute meter to detect underground leaks and unauthorized water use.
  • Grooved gear operated butterfly valves with tamper switch for secure shutoff.
  • Bronze body nickel plated test cocks for easy testing.
  • Bottom-mounted corrosive resistant cast stainless steel relief valve.
  • Extremely compact design and 70% lighter than traditional designs.
  • Patented link check for lowest pressure loss.
  • Unmatched ease of serviceability with replaceable check disc rubber.

A WARNING: It is illegal to use this product in a plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Consult local water authority, building, and plumbing codes before installation.

Specifications

  • Product Type: Reduced Pressure Detector Backflow Preventer
  • Nominal Size: 4 inch
  • Configuration: Z Pattern, Horizontal
  • Housing Material: 304 (Schedule 40) Stainless Steel
  • Sleeve Material: 304 (Schedule 40) Stainless Steel
  • Shutoff Valves: Grooved Gear Operated Butterfly Valves with Tamper Switch (BFG model)
  • Link Checks: Noryl®, Stainless Steel with Reversible Elastomer Discs
  • Check Discs: Reversible Silicone or EPDM
  • Test Cocks: Lead Free* Bronze Body, Nickel Plated
  • Pins & Fasteners: 300 Series Stainless Steel
  • Springs: Stainless Steel
  • Relief Valve: Bottom-mounted Cast Stainless Steel
  • Bypass Meter: Cubic Feet Per Minute (CFM)
  • Flood Sensor: SentryPlus Alert® Technology (requires add-on connection kit for activation)
  • Temperature Range: 33°F - 140°F (0.5°C - 60°C)
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Weight (C500BFG): 101 lb (46 kg)

Certificates & Approvals

  • Approved by Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • AWWA C511-97
  • ASSE 1047
  • CSA B64.4
  • UL Classified (BFG Only)
  • FM Approved (BFG Only)

FAQs

What is the primary purpose of the Colt C500 Reduced Pressure Detector Assembly?

The primary purpose is to protect drinking water supplies from dangerous cross-connections, preventing the reverse flow of non-potable water or fire protection substances into the potable water system due to backsiphonage or backpressure.

Does this backflow preventer include a flood sensor?

Yes, this model includes a flood sensor with SentryPlus Alert® technology designed to detect excessive water discharges from the relief valve. An add-on connection kit is required to activate the sensor and enable alert notifications.

What type of connections does this 4 inch C500 model use?

This model comes with grooved gear operated butterfly valves with tamper switches, designed for easy installation and alignment within a pipeline using grooved couplings.

What materials are used in the construction of this backflow preventer?

The housing and sleeve are constructed from 304 (Schedule 40) stainless steel. It also features a bottom-mounted cast stainless steel relief valve, Noryl® and stainless steel link checks, and lead-free bronze body nickel plated test cocks.

What are the approved installation configurations for this specific model?

This 4 inch C500 model, designated with 'Z', is approved for horizontal Z pattern installation.
