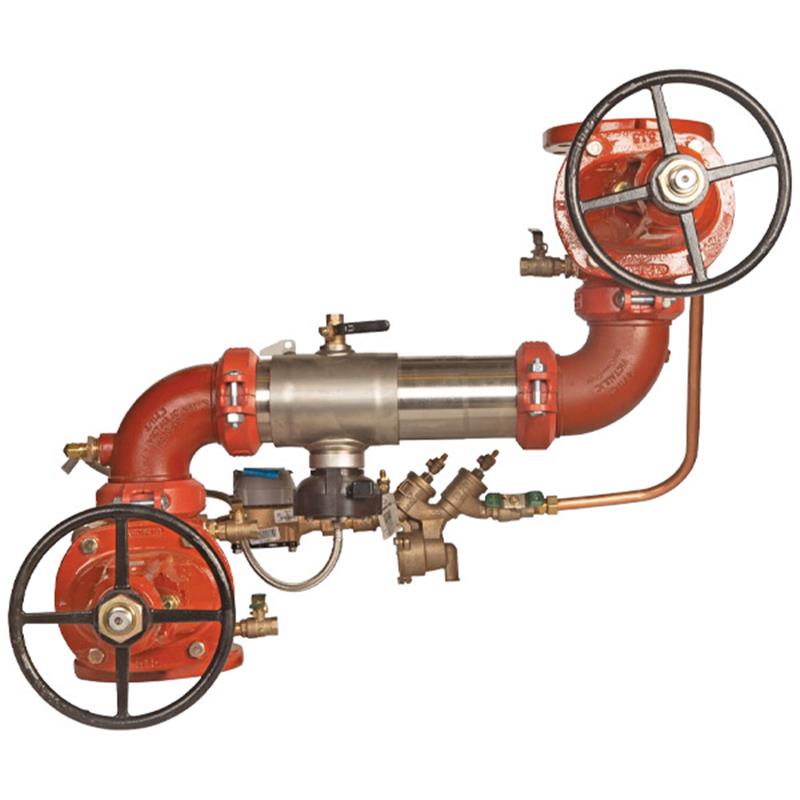

This Colt™ 4 inch reduced pressure detector backflow preventer assembly is designed to prevent the reverse flow of fire protection substances and non-potable water into the potable water supply due to backsiphonage or backpressure.
This compact, modular assembly is approved for horizontal Z pattern installation and includes a flood sensor with SentryPlus Alert® technology for detecting excessive relief valve discharges.
Primary Use
- Provides protection to drinking water supplies from dangerous cross-connections in accordance with national plumbing codes and water authority requirements for health-hazard non-potable service applications such as irrigation, fire line, or industrial processing.
- Monitors unauthorized use of water from the fire protection system.
Features
-
Extremely compact design, 70% lighter than traditional designs.
-
304 (Schedule 40) stainless steel housing and sleeve.
- Groove fittings for integral pipeline adjustment and easy installation.
- Patented link check for lowest pressure loss.
-
Unmatched ease of serviceability with replaceable check disc rubber.
- Bottom-mounted cast stainless steel relief valve.
- Metered bypass to detect leakage or theft of water from the fire sprinkler system.
- Includes OS&Y resilient seated gate valves.
- Approved for horizontal Z pattern installation.
Flood Sensor & Monitoring
- Features a flood sensor with SentryPlus Alert® technology to detect continuous discharge from the relief valve.
- An add-on sensor connection kit is required to activate the flood sensor and enable alerts.
- Sensor Control Monitor integrates smart devices with BAS via RS‑485 Modbus or the Nexa® platform through Wi-Fi.
A WARNING: It is illegal to use this product in a plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing standard material product, consult your local water authority, building and plumbing codes.
