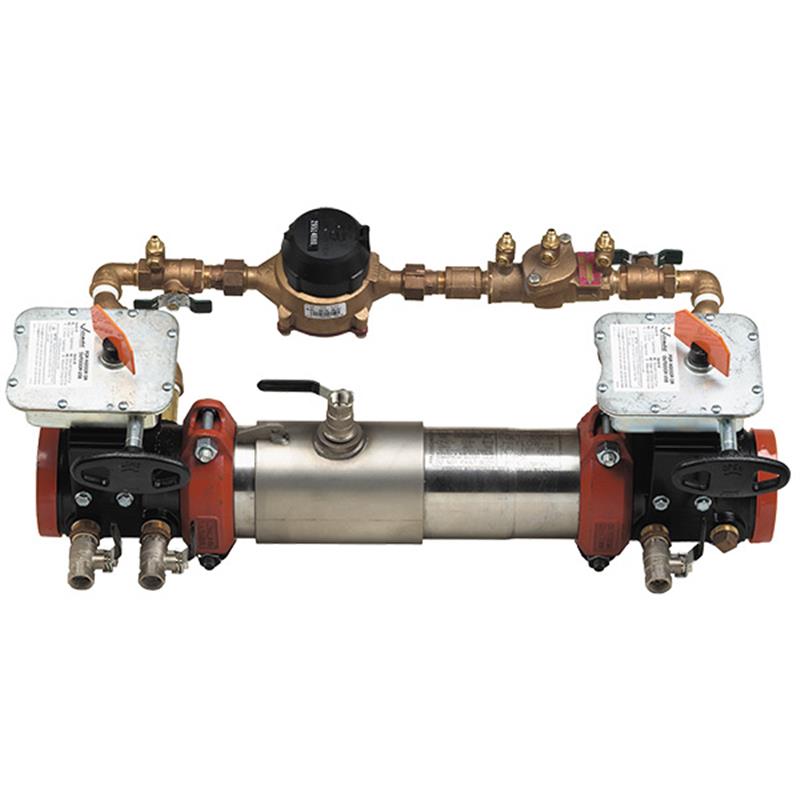

4 LFC300-BFG-GPM

Item Number: 0124585
1 1
$10,290.18
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Product Type: Double Check Detector Backflow Preventer Assembly
  • Weight: 84.0 lb
  • Nominal Size: 4 inch
  • Lead Free: Yes
  • Housing Material: 304 Stainless Steel
  • Valve Type: Grooved Gear Operated Butterfly Valves
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 33°F - 110°F
  • Installation: Horizontal or Vertical

Description

This Colt 4 inch lead free double check detector backflow preventer assembly (LFC300-BFG) prevents non-potable water and fire protection substances from entering the potable water supply. Designed for non-health hazard cross-connections like fire sprinkler systems, it features a durable 304 stainless steel housing and sleeve with grooved end connections. The compact design includes patented Tri-Link checks for low pressure loss and a gallon per minute meter to monitor leaks. It is approved for horizontal or vertical installation and boasts a maximum working pressure of 175 psi, with a temperature range of 33°F to 110°F.

Help Me Connect

Connections

  • This 4 inch backflow preventer assembly features groove end connections for the main assembly.
  • The grooved fittings allow for integral pipeline adjustment during installation.
  • The bypass assembly includes ASME/ANSI flanged end connections.
View full details

Additional Details

This Colt™ 4 inch lead free double check detector backflow preventer assembly is designed to prevent the reverse flow of fire protection substances and water of non-potable quality into the potable water supply due to backsiphonage or backpressure.

It is ideal for protection at cross-connections identified as non-health hazards, such as on fire sprinkler systems and other service line contaminants.

Construction & Design

  • Compact modular design with a single access sleeve for easy maintenance
  • Approved for horizontal or vertical installation, including "N" pattern
  • Consists of a stainless steel body, Tri-Link check valves, grooved gear operated butterfly valves with tamper switch, and four test cocks
  • Features a gallon per minute meter to detect underground leaks and unauthorized water use
  • Extremely compact design, 70% lighter than traditional designs
  • 304 (Schedule 40) stainless steel housing and sleeve
  • Groove fittings allow integral pipeline adjustment
  • Patented Tri-Link check provides lowest pressure loss and unmatched ease of serviceability
  • Available with grooved butterfly valve shutoffs
  • Replaceable check disc rubber
  • Includes an integrated supervisory switch as an option on each gate valve of the OS&Y model

The information provided is not intended to replace full product installation and safety information or the experience of a trained product installer. Thoroughly read all installation instructions and product safety information before installation. Inquire with governing authorities for local installation requirements.

Specifications

General

  • Product Type: Double Check Detector Backflow Preventer Assembly
  • SKU: 0124585
  • Brand: Colt
  • Model: LFC300-BFG
  • Nominal Size: 4 inch
  • Lead Free: Yes (wetted surface contains less than 0.25% lead by weight)
  • Valve Type: Grooved Gear Operated Butterfly Valves with Tamper Switch

Materials

  • Housing & Sleeve: 304 (Schedule 40) Stainless Steel
  • Elastomers: EPDM, Silicone, Buna 'N'
  • Tri-Link Checks: Noryl®, Stainless Steel
  • Check Discs: Reversible Silicone or EPDM
  • Test Cocks Body: Lead Free Bronze
  • Pins & Fasteners: 300 Series Stainless Steel
  • Springs: Stainless Steel

Performance

  • Maximum Working Pressure: 175 psi (12.06 bar)
  • Temperature Range: 33°F - 110°F (5°C - 43°C)

Certificates & Approvals

  • Approved by Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • AWWA C510-97
  • ASSE 1048
  • CSA B64.5
  • UL Classified
  • FM Approved
  • NSF Certified to NSF/ANSI 372

FAQs

What is the primary function of this backflow preventer assembly?

This backflow preventer assembly is designed to prevent the reverse flow of non-potable water and fire protection substances from entering the potable water supply system due to backsiphonage or backpressure. It is suitable for non-health hazard applications.

What type of connections does the main assembly use?

The main assembly features groove end connections, which allow for integral pipeline adjustment. The bypass assembly uses ASME/ANSI flanged end connections.

Can this assembly be installed in different orientations?

Yes, the Colt LFC300-BFG assembly is approved for horizontal, vertical, or "N" pattern installations, offering installation flexibility.

What is the maximum operating pressure and temperature range?

The maximum working pressure for this unit is 175 psi (12.06 bar), and it operates within a temperature range of 33°F to 110°F (5°C - 43°C).

What material is the housing made from?

The housing and sleeve are constructed from durable 304 (Schedule 40) stainless steel, ensuring long-lasting performance and corrosion resistance.
