4 M400Z-NRS

Item Number: 0191486
1 1
$12,241.51
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Nominal Size: 4 Inch
  • Assembly Type: Reduced Pressure Zone Backflow Preventer
  • Shutoff Valves: Non-Rising Stem (NRS)
  • Housing Material: 304 Stainless Steel
  • Installation: Horizontal Z-Pattern approved
  • Compact design for small enclosures
  • 70% lighter than traditional designs
  • Lowest pressure loss with Link Check Modules

Description

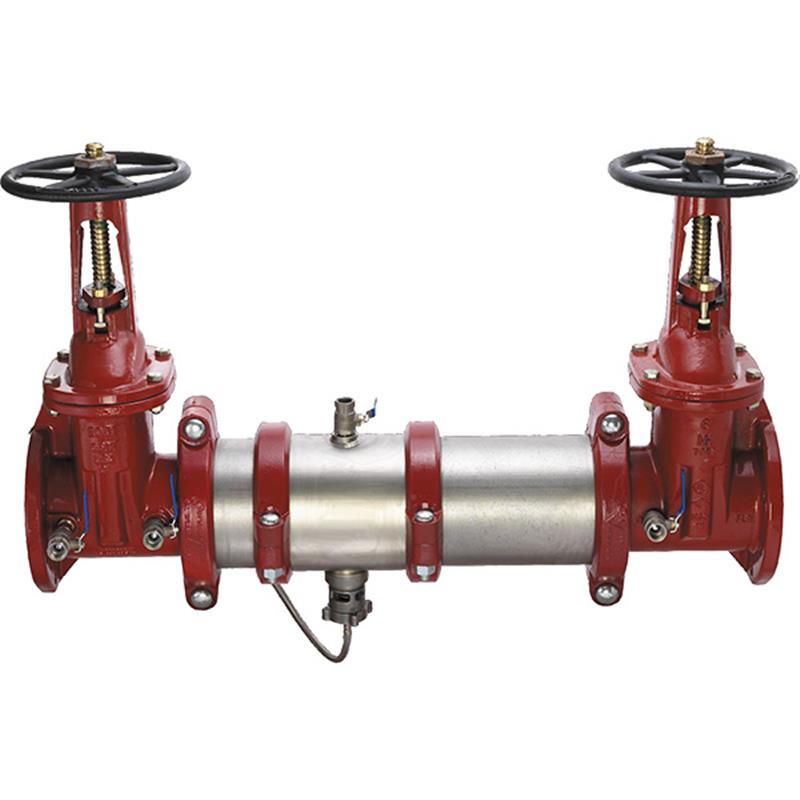

The Maxim™ 4 inch lead free reduced pressure zone backflow preventer assembly (M400Z-NRS) is engineered to prevent the reverse flow of fire protection substances and non-potable water into potable water supplies. Featuring a 304 stainless steel housing and sleeve, it ensures durability and compliance with plumbing codes. Its compact, Z-pattern design is 70% lighter than traditional models, allowing for installation in smaller enclosures. Key features include NRS gate valves, torsion spring link check modules for low pressure loss, replaceable rubber check discs, and easy-to-install groove couplings. This assembly is ideal for continuous pressure applications and health hazard cross-connections.

Help Me Connect

Connections & Installation

  • This assembly utilizes groove couplings for easy installation and pipe alignment.
  • Approved for horizontal Z pattern installation, ensuring the backflow assembly is installed in accordance with the direction of the flow arrow.
  • Ensure adequate clearance around the valve for inspection, testing, and servicing. A 12 inch minimum clearance is recommended between the lower portion of the assembly and the floor or grade.
  • The valve should be protected from freezing.
  • Normal discharge and nuisance spitting can be accommodated by using an Ames air gap fitting and a fabricated indirect waste line, with floor drains of the same size provided in case of excessive discharge.
View full details

Additional Details

This Maxim™ 4 inch lead free reduced pressure zone backflow preventer assembly is designed to prevent the reverse flow of fire protection substances and non-potable water from being pumped or siphoned into the potable water supply due to backsiphonage and/or backpressure, in accordance with national plumbing codes and water authority requirements.

It is ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards and from other contaminants found at the service line entrance.

Construction & Components

  • 304 (Schedule 40) stainless steel housing and sleeve
  • Quick access sleeve
  • Torsion spring check modules
  • Resilient seated gate valves with non-rising stem (NRS) shutoff valves
  • Test cocks
  • Bottom mounted stainless steel pressure relief valve

Key Features

  • Extremely compact design allows for small enclosures to be used
  • 70 percent lighter than traditional designs
  • Groove couplings for easy installation and pipe alignment
  • Link check modules provide lowest pressure loss
  • Replaceable check disc rubber
  • Torsion spring check modules for ease of serviceability
  • Drip tight shutoff valves
  • Approved for horizontal Z pattern installation when installed in accordance with the direction of the flow arrow

NOTICE: The information contained herein is not intended to replace the full product installation and safety information available or the experience of a trained product installer. You are required to thoroughly read all installation instructions and product safety information before beginning the installation of this product.

Specifications

General

  • Nominal Size: 4 Inch
  • Assembly Type: Reduced Pressure Zone (RPZ) Backflow Preventer
  • Model Series: Maxim™ M400Z-NRS
  • Shutoff Valve Type: Non-Rising Stem (NRS) Gate Valves
  • Pattern: Z-Pattern
  • Lead Free: Yes

Materials

  • Housing Material: 304 (Schedule 40) Stainless Steel
  • Sleeve Material: 304 (Schedule 40) Stainless Steel
  • Check Module Type: Torsion Spring Link Check
  • Check Disc Material: Replaceable Rubber
  • Relief Valve Material: Stainless Steel (bottom mounted)

Dimensions (Approximate)

  • Overall Length (Dimension D): 14 3/4 inches (375 mm)
  • Body Width (Dimension A): 9 inches (229 mm)
  • Overall Height (Dimension C): 12 inches (254 mm)

Certificates & Approvals

  • Compliance: National plumbing codes and water authority requirements

FAQs

What is the primary function of this backflow preventer?

This Maxim™ 4 inch reduced pressure zone backflow preventer assembly is designed to prevent the reverse flow of non-potable water and fire protection substances into the potable water supply, protecting against backsiphonage and backpressure.

What type of shutoff valves are included with this assembly?

The assembly features resilient seated gate valves with non-rising stems (NRS), which are known for their durability and reliable drip-tight shutoff capabilities.

What material is the housing and sleeve made from?

The housing and sleeve of this backflow preventer assembly are constructed from durable 304 (Schedule 40) stainless steel, offering excellent corrosion resistance and longevity.

Can this assembly be installed in any orientation?

This assembly is approved for horizontal Z-pattern installation, provided it is installed in accordance with the direction of the flow arrow to ensure proper function.

How does this backflow preventer compare in weight to traditional designs?

This Maxim™ assembly is specifically designed to be extremely compact and is approximately 70 percent lighter than traditional backflow preventer designs, which allows for smaller enclosures and easier handling.
