4 M500-OSY-GPM

Item Number: 0191118
1 1
$13,887.00
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 4 inch
  • Weight: 302.0 lb
  • Housing & Sleeve Material: 304 (Schedule 40) Stainless Steel
  • Maximum Working Pressure: 175 psi
  • OSY Shutoff Valves
  • Includes Gallon per Minute Meter
  • Extremely Compact Design
  • Groove Fittings for Integral Pipeline Adjustment
  • Approvals: ASSE 1047, CSA B64.4, cULus, FM

Description

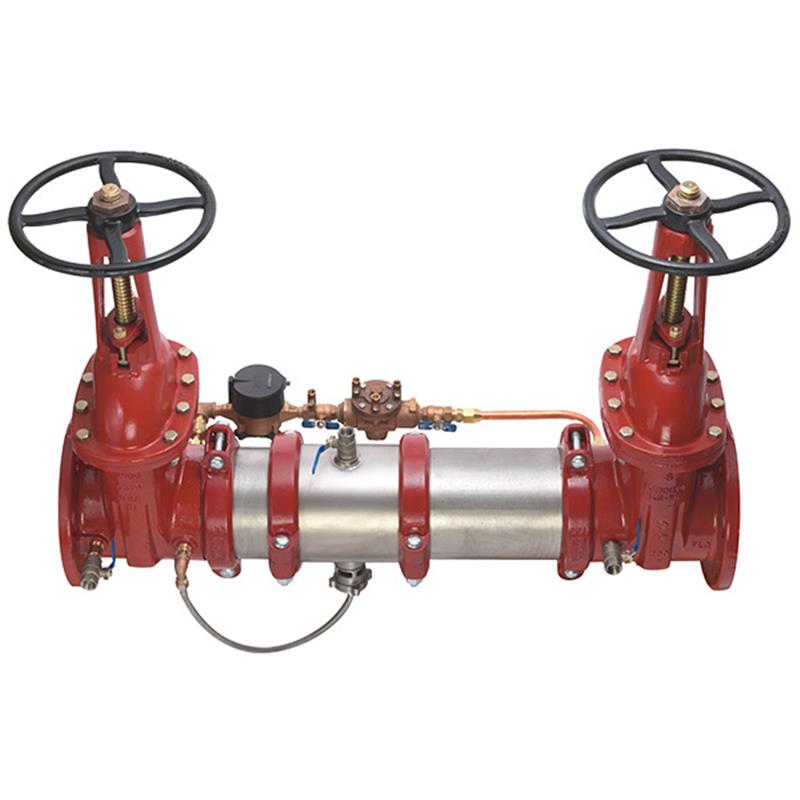

The Maxim™ 4 inch reduced pressure detector backflow preventer assembly (M500-OSY-GPM) is designed for non-potable service applications such as fire sprinkler systems and industrial processing. It protects drinking water supplies from cross-connections caused by backsiphonage or backpressure. This compact, 304 stainless steel assembly features OSY resilient seated gate valves and a bypass with a gallon per minute meter for leak detection. Its grooved fittings facilitate easy installation. Approved by ASSE 1047, CSA B64.4, cULus, and FM, it offers reliable protection against health hazards in various piping configurations.

Help Me Connect

Connections & Installation

  • This assembly is designed for installation in 4 inch piping systems.
  • It utilizes groove end connections for easy installation and integral pipeline adjustment, accommodating various pipe alignments.
  • The product is available for Horizontal or N Pattern Installations, providing flexibility for different site requirements.
  • It includes OSY (Outside Stem and Yoke) resilient seated gate valves for system shutoff.
View full details

Additional Details

This Maxim™ 4 inch reduced pressure detector backflow preventer assembly is designed to prevent the reverse flow of fire protection substances and water of non-potable quality from being pumped or siphoned into the potable water supply due to backsiphonage and or backpressure.

It is ideal for protection at cross-connections identified as health hazards, such as on fire sprinkler systems and from other contaminants found at the service line entrance. This compact modular design features a stainless steel body, quick access sleeve, and a bypass assembly with a gallon per minute meter to detect underground leaks and unauthorized water use.

Features

  • Extremely Compact Design, approximately 70% lighter than traditional designs
  • 304 (Schedule 40) Stainless Steel Housing & Sleeve
  • Groove Fittings allow integral pipeline adjustment and easy installation
  • Patented Link Check provides lowest pressure loss
  • Unmatched Ease of Serviceability with a single access cover
  • Outside Stem and Yoke (OSY) resilient seated gate valves
  • Bottom mounted stainless steel relief valve
  • Available for Horizontal or N Pattern Installations
  • Replaceable Check Disc Rubber and reversible elastomer discs
  • Bronze body nickel plated test cocks (Lead Free)
  • Furnished with a gallon per minute meter to detect unauthorized water use

WARNING: It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dish-washing, in the United States. Before installing standard material product, consult your local water authority, building and plumbing codes.

Specifications

  • Product Type: Reduced Pressure Detector Backflow Preventer Assembly
  • Series: Maxim™ M500, M500N, M500Z
  • Size: 4 inch
  • Housing & Sleeve Material: 304 (Schedule 40) Stainless Steel
  • Elastomers: EPDM, Silicone, Buna 'N'
  • Link Check Material: Noryl®, Stainless Steel
  • Check Discs: Reversible Silicone or EPDMr
  • Test Cock Material: Lead Free* Bronze Body
  • Pins & Fasteners: 300 Series Stainless Steel
  • Spring Material: Stainless Steel
  • Shutoff Valves: OSY (Outside Stem and Yoke) Resilient Seated Gate Valves
  • Temperature Range: 33°F - 110°F (5°C - 43°C)
  • Maximum Working Pressure: 175 psi (12.06 bar)

Certificates & Approvals

  • ASSE 1047
  • CSA B64.4
  • cULus Classified
  • FM Approved (for BFG & OSY Only)
  • AWWA C511-97

FAQs

What is the primary function of the Maxim™ M500-OSY-GPM backflow preventer?

This 4 inch reduced pressure detector backflow preventer assembly is designed to protect potable drinking water supplies from contamination caused by dangerous cross-connections, specifically preventing the reverse flow of non-potable water into the main supply due to backsiphonage or backpressure.

What materials are used for the main housing and components?

The main housing and sleeve are constructed from 304 (Schedule 40) stainless steel. Other components include Noryl® and stainless steel for link checks, reversible silicone or EPDM for check discs, and Lead Free* bronze body for test cocks.

What type of shutoff valves are included with this assembly?

This specific Maxim™ M500-OSY-GPM model comes with OSY (Outside Stem and Yoke) resilient seated gate valves, which are UL/FM approved.

What is the purpose of the included gallon per minute meter?

The bypass assembly includes a gallon per minute meter that registers water flow. This meter is crucial for detecting unauthorized water use or underground leaks within the protected system, enhancing system monitoring capabilities.

What are the installation requirements and approved configurations for this backflow preventer?

This assembly is designed for Horizontal or N Pattern Installations. It features groove fittings for integral pipeline adjustment and easier installation. Consult local water authority, building, and plumbing codes before installation, especially regarding use with potable water systems.
