4 OSY GATE VALVE, FLG X FLG

Item Number: 4-48OSY
Skip to product information
1 of 1
Regular price $2,478.20
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Wilkins

  • Nominal Size: 4 inch
  • Valve Type: Resilient Wedge Gate Valve, OS&Y
  • End Connections: Flanged bolt pattern (ANSI/ASME B16.42 Class 150)
  • Body Material: Ductile Iron
  • Maximum Working Water Pressure: 250 PSI
  • Maximum Working Water Temperature: 140°F
  • Coating: AWWA C550 compliant fusion-bond epoxy finish
  • Certifications: AWWA, UL, C-UL, FM, NSF/ANSI/CAN 61 & 372

Description

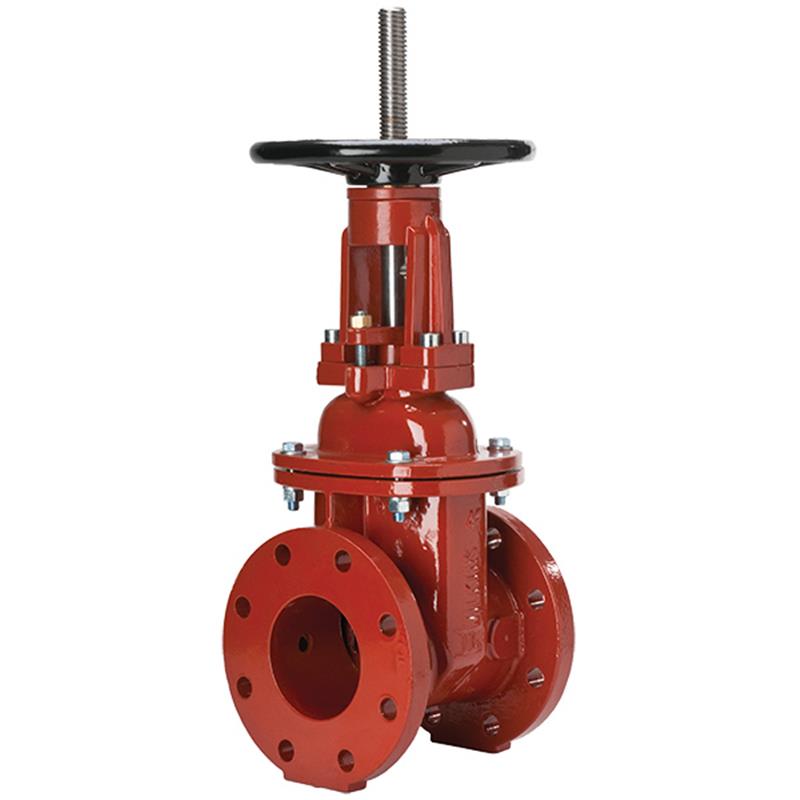

The Wilkins Model 480SY is a 4-inch Resilient Wedge Gate Valve with an Outside Stem & Yoke (OS&Y) design, featuring flanged end connections. It is engineered for reliable flow control in potable water, irrigation, waterworks, and fire systems. Constructed from ductile iron with a corrosion-resistant AWWA C550 epoxy coating and an EPDM-sealed wedge, this valve offers durability and a tight seal. It operates up to 250 PSI working pressure and 140°F, meeting AWWA C515/C550, UL, C-UL, FM, and NSF/ANSI/CAN 61 & 372 standards for lead-free compliance. The OS&Y design provides clear visual confirmation of the valve's position.

Help Me Connect

Connection Information

This Wilkins Model 480SY Gate Valve features 4-inch flanged end connections on both sides, specifically designed to meet ANSI/ASME B16.42 Class 150 bolt patterns. These flanges ensure a secure and robust connection to compatible flanged pipes, fittings, or other system components. It is suitable for systems requiring an Outside Stem & Yoke (OS&Y) type valve with a clear visual indication of its open or closed status.

View full details

Collapsible content

Additional Details

This is a 4-inch Wilkins Model 480SY Resilient Wedge Gate Valve with Outside Stem & Yoke (OS&Y), designed for reliable flow control in various critical systems. It is primarily used in potable water lines, irrigation systems, waterworks connections, and fire systems.

Design & Construction

  • Features an Outside Stem & Yoke (OS&Y) design for clear visual indication of valve position.
  • Flanged end connections for secure and robust installation.
  • Main body and covers are constructed from Ductile Iron ASTM A536 65-45-12.
  • The wedge is also Ductile Iron ASTM A536 65-45-12 W/EPDM, ensuring a resilient seal.
  • Coated with an AWWA C550 compliant fusion-bond epoxy finish for corrosion resistance.

Performance & Reliability

  • Maximum working water pressure of 250 PSI.
  • Suitable for water temperatures up to 140°F.
  • Undergoes a hydrostatic test pressure of 500 PSI to ensure integrity.
  • Stems are made from 300 series Stainless Steel for durability.

Specifications

  • Body Material: Ductile Iron ASTM A536 65-45-12
  • Cover Material: Ductile Iron ASTM A536 65-45-12
  • Wedge Material: Ductile Iron ASTM A536 65-45-12 W/EPDM
  • Stem Material: 300 series Stainless Steel
  • Elastomers: EPDM (FDA approved)
  • Fasteners: Zinc plated steel Grade 8.8 Brass ASTM B584 UNS C83600
  • Handwheel Material: Ductile Iron ASTM A536 65-45-12
  • Internals Material: Stainless Steel ASTM A276 UNS S42000
  • Coating: AWWA C550 compliant fusion-bond epoxy finish
  • Valve Type: Resilient Wedge Gate Valve, OS&Y
  • Nominal Size: 4 inch
  • End Connection Type: Flanged bolt pattern
  • End Connection Standard: ANSI/ASME B16.42 Class 150
  • Maximum Working Water Pressure: 250 PSI
  • Maximum Working Water Temperature: 140°F
  • Hydrostatic Test Pressure: 500 PSI
  • Overall Length (A): 9 inches (229 mm)
  • Flange Diameter (B): 9 inches (229 mm)
  • Distance Face-to-Face (C): 10 1/4 inches (260 mm)
  • Height OS&Y Open (D): 22 1/2 inches (572 mm)
  • Height OS&Y Closed (D): 18 1/4 inches (464 mm)
  • Weight (OS&Y FXF): 81 lbs (37 kg)

Certificates & Approvals

  • AWWA Compliant C515, C-550
  • UL® Listed
  • C-UL® Listed
  • FM® Approved
  • Meets NSF/ANSI/CAN 61 and 372 (less than 0.25% weighted average lead content)

FAQs

What does "OS&Y" mean in the valve's description?

OS&Y stands for "Outside Stem & Yoke." This design means the valve's stem rises and lowers as the valve opens and closes, providing a visible indication of the valve's current position (open or closed) from the outside.

What types of applications is this 4-inch gate valve suitable for?

This Wilkins Model 480SY gate valve is designed for use in potable water lines, irrigation systems, waterworks connections, and fire systems, ensuring reliable flow control in these critical applications.

What are the main materials used in the construction of this valve?

The main body, covers, and handwheel are made from Ductile Iron ASTM A536. The wedge is Ductile Iron with an EPDM seal, and the stem is 300 series Stainless Steel, all coated with AWWA C550 compliant fusion-bond epoxy.

What are the pressure and temperature limits for this gate valve?

This valve has a maximum working water pressure of 250 PSI and can withstand a maximum working water temperature of 140°F. It also has a hydrostatic test pressure of 500 PSI.

What standards and certifications does this Wilkins 480SY valve meet?

This valve is AWWA C515 and C550 compliant, UL® Listed, C-UL® Listed, FM® Approved, and meets the requirements of NSF/ANSI/CAN 61 and 372 for lead-free content (less than 0.25% weighted average).
