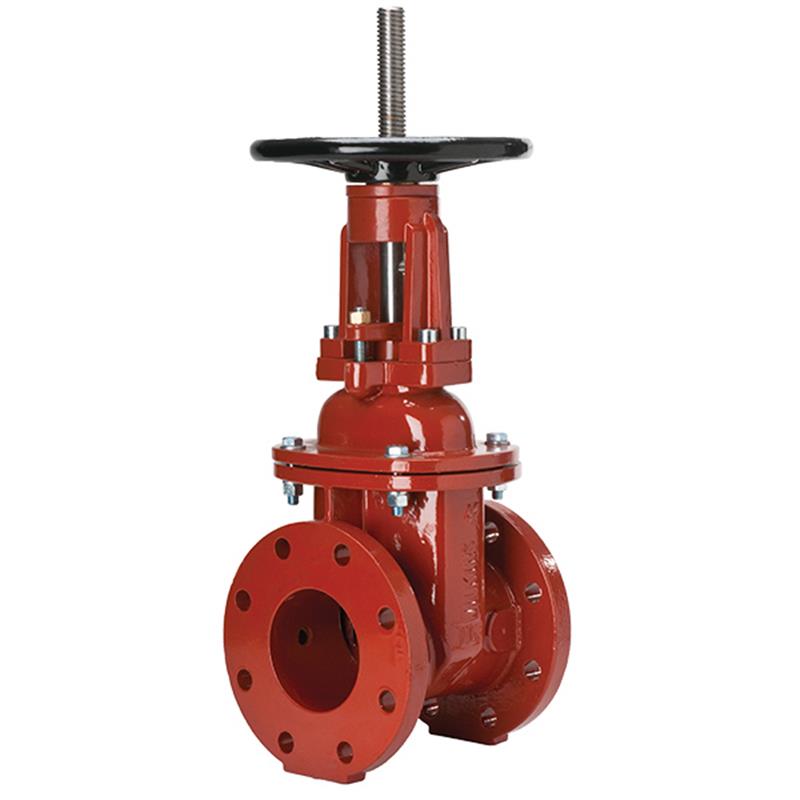

4 OSY GATE VALVE, GRV X FLG

Item Number: 4-48OSYGXF
Skip to product information
1 of 1
Regular price $2,477.75
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Wilkins

  • Valve Type: Resilient Wedge Gate Valve
  • End Connections: 4 inch Grooved x Flanged
  • Maximum Working Pressure: 250 PSI
  • Maximum Working Temperature: 140°F
  • Body Material: Epoxy Coated Ductile Iron
  • Internal Materials: Stainless Steel
  • Compliance: Low-lead law compliant
  • Feature: Outside Stem & Yoke (OS&Y)

Description

The Wilkins 480SY 4-inch Resilient Wedge Gate Valve with Outside Stem & Yoke (OS&Y) is a robust shut-off valve designed for demanding water system applications. It is suitable for potable water lines, irrigation, waterworks, and fire systems, offering reliable performance. Constructed with an epoxy coated ductile iron body and stainless steel internals, this valve resists corrosion and ensures longevity. It features grooved and flanged end connections for installation versatility and is low-lead law compliant. With a maximum working pressure of 250 PSI and a maximum working temperature of 140°F, this valve meets industry standards including AWWA C515, UL, and FM approvals.

Help Me Connect

Connecting the Wilkins 480SY Gate Valve

This Wilkins 480SY gate valve features a versatile combination of end connections to facilitate installation in diverse piping systems:

  • One end is equipped with grooved end connections, designed to mate with corresponding grooved piping components, typically for steel pipe conforming to ANSI/AWWA C606.
  • The other end features flanged end connections, suitable for bolting to other flanged components, adhering to ANSI/ASME B16.42 Class 150 bolt patterns.

This valve can be used as a stand-alone shut-off device or integrated into a system alongside Wilkins Backflow Preventers.

View full details

Collapsible content

Additional Details

The Wilkins 480SY Resilient Wedge Gate Valve with Outside Stem & Yoke (OS&Y) is engineered for reliable shut-off in critical water systems. This 4-inch valve is designed for installation on potable water lines, irrigation systems, and waterworks connections, including fire systems.

Features

  • Utilizes a resilient wedge design for bubble-tight sealing.
  • Constructed with an epoxy coated ductile iron body and stainless steel internals to provide superior resistance against corrosion.
  • Designed with an Outside Stem & Yoke (OS&Y), allowing for visual confirmation of valve position.
  • Features grooved x flanged end connections for versatile integration into various piping configurations.
  • Low-lead law compliant, meeting strict standards for safe potable water use.

Applications

  • Potable water lines
  • Irrigation systems
  • Waterworks connection applications
  • Fire systems
  • Can be used as a stand-alone product or in conjunction with Wilkins Backflow Preventers.

Specifications

  • Valve Type: Gate Valve
  • Series: Wilkins 480SY
  • Size: 4 inch
  • Maximum Working Water Pressure: 250 PSI
  • Maximum Working Water Temperature: 140°F
  • Hydrostatic Test Pressure: 500 PSI
  • Body Material: Epoxy coated ductile iron
  • Main Body Material: Ductile Iron ASTM A536 65-45-12
  • Stem Material: Stainless Steel ASTM A276 UNS S42000 (300 Series)
  • Wedge Material: Ductile Iron ASTM A536 65-45-12 W/EPDM
  • Elastomers: EPDM (FDA approved)
  • Handwheel Material: Ductile Iron ASTM A536 65-45-12
  • Coatings: AWWA C550 compliant fusion-bond epoxy finish
  • Fasteners: Zinc plated steel Grade 8.8 Brass ASTM B584 UNS C83600
  • End Connections: Grooved x Flanged (ANSI/AWWA C606 & ANSI/ASME B16.42 Class 150)

Certificates & Approvals

  • AWWA Compliant C515
  • AWWA Compliant C-550
  • UL® Listed
  • C-UL® Listed
  • FM® Approved
  • Meets NSF/ANSI/CAN 61 and 372 (Low-Lead)
  • IAPMO® Listed

FAQs

What is the primary use of the Zurn Wilkins 48 Series gate valve?

This gate valve is primarily used as a shut-off valve on potable water lines, irrigation systems, and waterworks connection applications. It can also be used with Wilkins Backflow Preventers.

What are the available connection options for this valve?

The Zurn Wilkins 48 Series gate valve offers versatile installation with flanged, grooved, or flanged x grooved connection configurations.

What is the maximum operating pressure and temperature for this gate valve?

This valve has a maximum working water pressure of 250 psi and can handle a maximum working water temperature of 140°F.

What materials are used in the construction of this valve to prevent corrosion?

The valve features an epoxy coated ductile iron body and stainless steel internals, both designed to resist corrosion and ensure durability.

Is this gate valve compliant with lead-free regulations?

Yes, the Zurn Wilkins 48 Series gate valve is low-lead law compliant, making it suitable for potable water applications.
