4 WVS-C Mechanical Joint x Mechanical Joint

Item Number: 0107221
1 1
$2,005.30
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Watts
  • Product Type: Valve Setter
  • Weight: 157.0 lb
  • Size: 4 inch
  • Connection Type: Mechanical Joint x Mechanical Joint
  • Body Material: Ductile Iron
  • Coating: Fusion epoxy coated
  • Maximum Working Pressure: 175 PSI
  • Temperature Range: 32°F to 140°F
  • Lead Content: Less than 0.25% lead by weight

Description

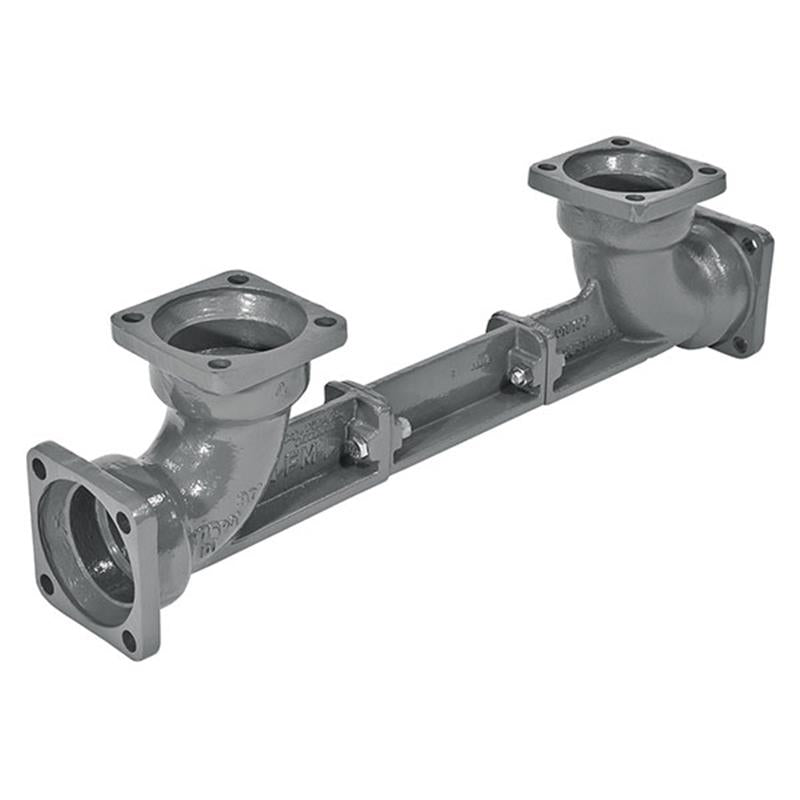

The Watts Series WVS 4 inch Ductile Iron Valve Setter with Mechanical Joint x Mechanical Joint connections is specifically engineered to enhance the installation of N-shape backflow prevention valve assemblies. Constructed from fusion epoxy coated ductile iron, this setter offers superior corrosion resistance and durability. Its integral support design eliminates the need for costly and space-consuming thrust blocks by effectively transferring downstream thrust. Capable of operating up to 175 PSI within a temperature range of 32°F to 140°F, it ensures reliable performance. Wetted surfaces contain less than 0.25% lead by weight, meeting lead-free requirements.

Help Me Connect

System Compatibility

  • This valve setter is designed to augment the installation of Watts "N" series backflow prevention valve assemblies, providing essential structural support.

Connection Details

  • Equipped with mechanical joint (MJ) connections on both ends for secure and reliable attachment to compatible piping systems.
  • The integral ductile iron support within the setter effectively transfers thrust downstream, reducing the need for additional thrust blocks at the connection points.

Please note that mechanical joint accessories, such as bolts, nuts, and gaskets, are not included with this valve setter (except for center joints). These components will need to be supplied separately based on local conditions and installation requirements.

View full details

Additional Details

The Watts Series WVS 4 inch ductile iron valve setter features mechanical joint by mechanical joint connections, engineered to augment the installation of "N" series backflow prevention valve assemblies. It provides a robust, inline support structure for these critical systems.

This valve setter is constructed from fusion epoxy coated ductile iron and incorporates an integral support between elbows. This design effectively transfers thrust downstream, thereby eliminating the need for external thrust blocks or other additional restraints at the point of installation.

Key Features

  • Corrosion resistant thanks to internal and external fusion epoxy coating.
  • Eliminates the need for thrust blocks, simplifying installation and reducing material costs.
  • Integral ductile iron support ensures stability and proper thrust transfer.
  • Wetted surfaces comply with lead-free requirements, containing less than 0.25% lead by weight.

Mechanical joint restraint devices may be required at pipe connections, depending on local conditions and governing authority requirements.

Specifications

  • Product Type: Valve Setter
  • Size: 4 inch
  • Connection Type: Mechanical Joint x Mechanical Joint
  • Body Material: Ductile Iron A536 GR 65-45-12
  • Coating: Fusion epoxy coated (internal and external) to AWWA C550
  • Bolts & Nuts: Stainless Steel
  • Maximum Working Pressure: 175 PSI (12.1 bar)
  • Temperature Range: 32°F to 140°F (0°C to 60°C)
  • Lead Content: Less than 0.25% lead by weight in wetted surfaces

Certificates & Approvals

  • Flange Standard: ANSI B16.1 Class 125 (Standard)
  • Flange Standard: ANSI AWWA C153 A21.53-88

FAQs

What is the primary use of the Watts Series WVS valve setter?

This valve setter is primarily used to augment the installation of Watts "N" series backflow prevention valve assemblies, providing structural support and simplifying the setup process.

What type of connections does this 4 inch valve setter feature?

This specific model features mechanical joint (MJ) connections on both ends, designed for secure integration into piping systems with corresponding MJ connections.

What materials is the Watts Series WVS valve setter constructed from?

The valve setter's body is made from Ductile Iron A536 GR 65-45-12, coated internally and externally with fusion epoxy to AWWA C550 standards for corrosion resistance. The bolts and nuts are stainless steel.

Does this valve setter eliminate the need for thrust blocks during installation?

Yes, its integral ductile iron support between elbows is designed to transfer thrust downstream, thereby eliminating the need for traditional thrust blocks or other external restraints at the point of installation.

What is the maximum operating pressure and temperature range for this valve setter?

The Watts Series WVS valve setter has a maximum working pressure of 175 PSI (12.1 bar) and is suitable for a temperature range of 32°F to 140°F (0°C to 60°C).
