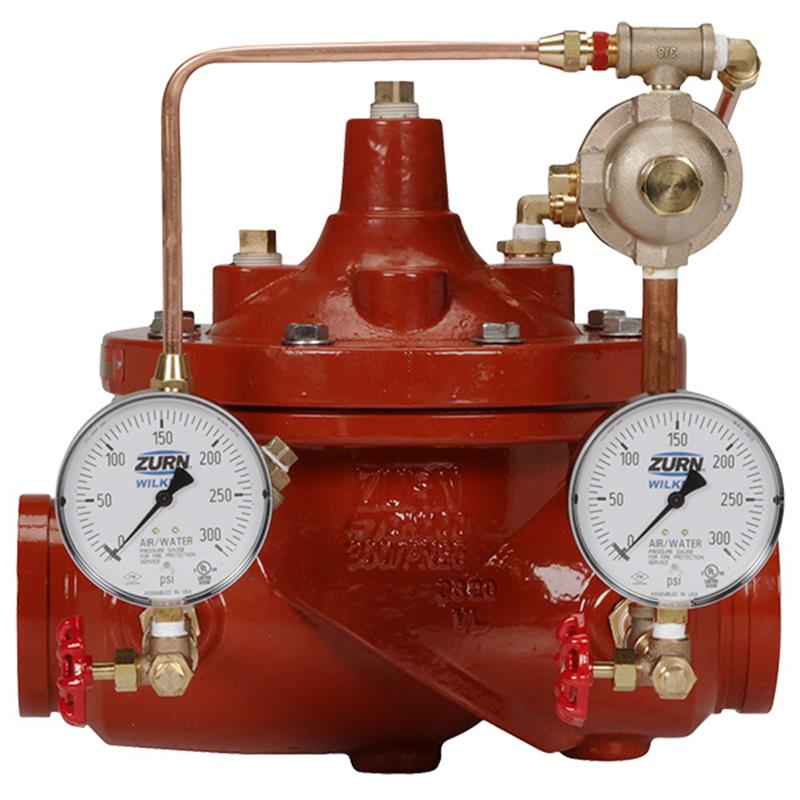

4 ZW209 PRESS REDUC FIRE VLV GLB BODY IPS GRVD SS SEAT 50-165PSI CPR TUBE

Item Number: 4-ZW209FPG
1 1
$9,977.35
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Wilkins
  • Valve Type: Pilot Operated Pressure Reducing Valve
  • Body Style: Globe
  • Nominal Size: 4 inch
  • End Connection: Grooved
  • Maximum Operating Pressure: 300 PSI
  • Pilot Spring Range: 50-165 PSI
  • Body Material: Ductile Iron ASTM A536
  • Corrosion Resistance: Internal/External Red Epoxy Coating
  • Certified Lead Free: NSF/ANSI/CAN 61

Description

The Zurn Wilkins Model ZW209 is a 4-inch pilot-operated pressure reducing valve designed for fire suppression systems. It ensures stable downstream pressure and accommodates high flow rates by modulating the main valve and sealing shut at the preset pilot point. Featuring a durable ductile iron globe body with grooved end connections, this valve is coated internally and externally with red epoxy for superior corrosion resistance. Standard components include isolation valves, inlet/outlet pressure gauges, and a "Wye" type strainer for simplified maintenance. It meets ANSI/AWWA C530 and NSF/ANSI/CAN 61 Lead Free standards, operating within a 33°F to 140°F temperature range. Item number 4-ZW209FPG.

Help Me Connect

The Zurn Wilkins Model ZW209 Pressure Reducing Valve is designed for installation in fire suppression systems. Its grooved end connections are suitable for connecting to corresponding grooved piping systems. The valve is engineered to provide stable downstream pressure for high flow applications in fire safety.

View full details

Additional Details

The Zurn Wilkins Model ZW209 Pilot Operated Pressure Reducing Valve is designed for fire suppression systems requiring stable downstream pressure from high inlet pressures and high flow rates.

This 4-inch valve features a pilot assembly that modulates the main valve to maintain constant downstream pressure, sealing shut once the pilot setting is reached to prevent potential damage downstream.

Construction & Features

  • Features grooved end connections for installation versatility.
  • Ductile iron main valve body and bonnet with stainless steel seat, disc guide, stem, and spring for durability.
  • Red epoxy coating applied internally and externally for enhanced corrosion resistance.
  • Standard equipped with isolation valves, inlet and outlet pressure gauges, and a "Wye" type strainer for easy maintenance and repair.
  • Includes copper tubing and brass fittings in the pilot assembly.
  • Pressure regulation is independent of flow rate, ensuring minimal pressure loss.

The closing speed control (optional) on this valve should always be open at least three (3) turns off its seat.

Specifications

General

  • Model: ZW209
  • Valve Type: Pilot Operated Pressure Reducing Valve
  • Body Style: Globe
  • Nominal Size: 4 inch
  • End Connection: Grooved
  • Minimum Inlet Pressure: 10 PSI
  • Maximum Operating Pressure (Grooved): 300 PSI
  • Pilot Spring Range: 50-165 PSI
  • Temperature Rating: 33°F to 140°F

Materials

  • Main Valve Body: Ductile Iron ASTM A536
  • Main Valve Bonnet: Ductile Iron ASTM A536
  • Disc Guide: Stainless Steel
  • Seat: Stainless Steel
  • Disc: Buna-N Rubber
  • Diaphragm: Nylon Reinforced Buna-N
  • Stem: Stainless Steel
  • Spring: Stainless Steel
  • Coating: Epoxy Coated, FDA Approved
  • Pilot Assembly Fittings: Copper Tubing, Brass Fittings

Certificates & Approvals

  • Standards Compliance: ANSI/AWWA C530
  • Lead Free: NSF/ANSI/CAN 61* (0.25% MAX. WEIGHTED AVERAGE LEAD CONTENT)

FAQs

What is the primary application of the Zurn Wilkins Model ZW209 valve?

The Zurn Wilkins Model ZW209 is primarily designed for fire suppression systems where a consistent and stable downstream pressure is required, especially from high inlet pressures and during high flow rate conditions.

What type of connections does this 4-inch ZW209 valve utilize?

This specific 4-inch ZW209 valve features grooved end connections, which are designed for secure and efficient coupling with grooved piping systems commonly found in fire suppression applications.

What is the maximum operating pressure for this grooved ZW209 valve?

The maximum operating pressure for the Zurn Wilkins Model ZW209 with grooved end connections is 300 PSI, as indicated in the body configurations specifications.

What materials are used for the main valve body and seat?

The main valve body and bonnet are constructed from durable Ductile Iron ASTM A536, while the seat, disc guide, stem, and spring are made from stainless steel, ensuring longevity and resistance to corrosion.

Is this pressure reducing valve suitable for potable water applications?

Yes, the Zurn Wilkins Model ZW209 valve meets the requirements of NSF/ANSI/CAN 61 and is certified as Lead Free (0.25% MAX. WEIGHTED AVERAGE LEAD CONTENT), making it suitable for applications that require compliance with lead-free standards.
