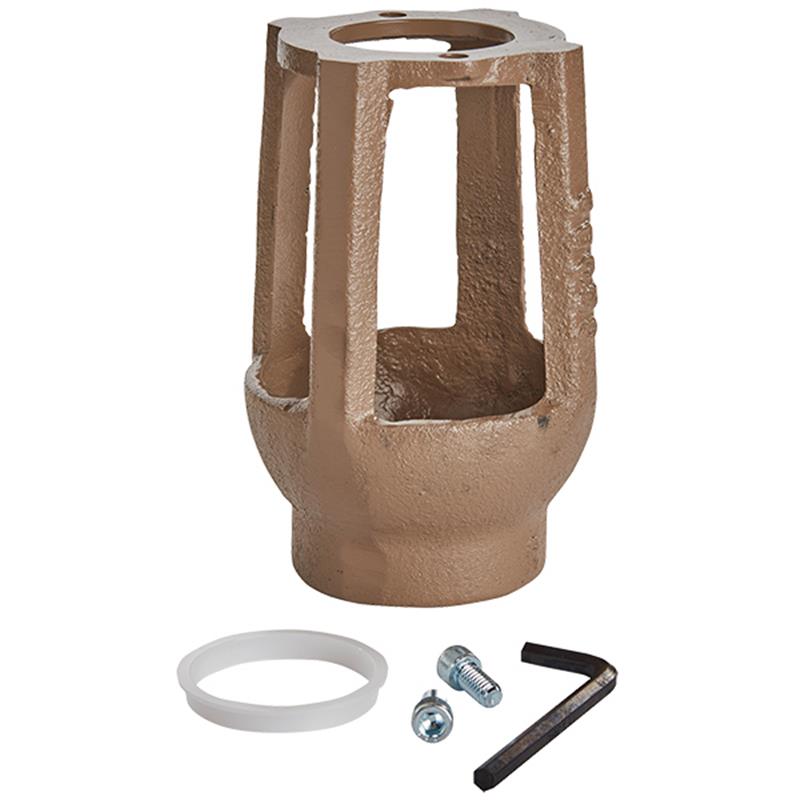

4000B AG-F-AMES

Item Number: 0881393
1 1
$234.73
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 2 inch
  • Weight: 3.7 lb
  • Designed for Ames 4000B Series RPZ assemblies
  • Collects minor relief valve discharges
  • Conforms to air gap installation requirements
  • Factory replacement part

Description

This Ames Air Gap (SKU 0881393) is specifically designed for 2-inch Ames 4000B Series Reduced Pressure Zone (RPZ) assemblies. It functions as a factory replacement part, collecting minor water discharges from the relief valve caused by check valve fouling or pressure fluctuations. Conforming to air gap installation requirements, this component helps funnel relief valve discharges into drains. It weighs 3.7 lbs and has an ANSI/ASME A112.1.2 approval, ensuring reliable performance for maintaining backflow prevention system integrity.

Help Me Connect

This air gap is designed for direct compatibility with 2 inch Ames 4000B Series Reduced Pressure Zone (RPZ) assemblies. It functions to collect water discharged by the relief valve, funnelling it into a drain connection. Ensure the backflow assembly size matches for proper fit and function.

View full details

Additional Details

This Ames Air Gap is designed to collect water discharged by the relief valve of a reduced pressure zone assembly. It addresses minor check valve fouling and line pressure fluctuations.

Compatibility

  • Designed to fit 2 inch Ames 4000B Series reduced pressure zone assemblies

Features

  • Serves as a factory replacement part for compatible assemblies
  • Funnels minor relief valve discharges into appropriate drains
  • Conforms to standard air gap installation requirements

Notice: The air gap drain is not designed to collect the full discharge capacity of the relief valve. It is required to thoroughly read all installation instructions and product safety information before beginning installation.

Specifications

  • Series: 4000B
  • Size: 2 inch
  • Weight: 3.7 lb (1.68 kg)
  • Dimension A: 3 5/8 inch (83 mm)
  • Dimension B: 4 1/2 inch (114 mm)

Certificates & Approvals

  • ANSI/ASME A112.1.2

FAQs

What is the primary purpose of this Ames Air Gap?

The primary purpose is to collect minor water discharges from the relief valve of a reduced pressure zone assembly, helping to manage leaks caused by check valve fouling or line pressure fluctuations.

Which backflow preventer series is this air gap compatible with?

This air gap is specifically designed for use with 2-inch Ames 4000B Series Reduced Pressure Zone (RPZ) assemblies.

What are the key dimensions of this air gap?

This air gap has a Dimension A of 3 5/8 inches (83 mm) and a Dimension B of 4 1/2 inches (114 mm).

Does this air gap collect the full discharge capacity of a relief valve?

No, the air gap drain is not designed to collect the full discharge capacity of the relief valve; it is intended for minor discharges.

What certifications or approvals does this product hold?

This Ames Air Gap is approved to ANSI/ASME A112.1.2 standards.
