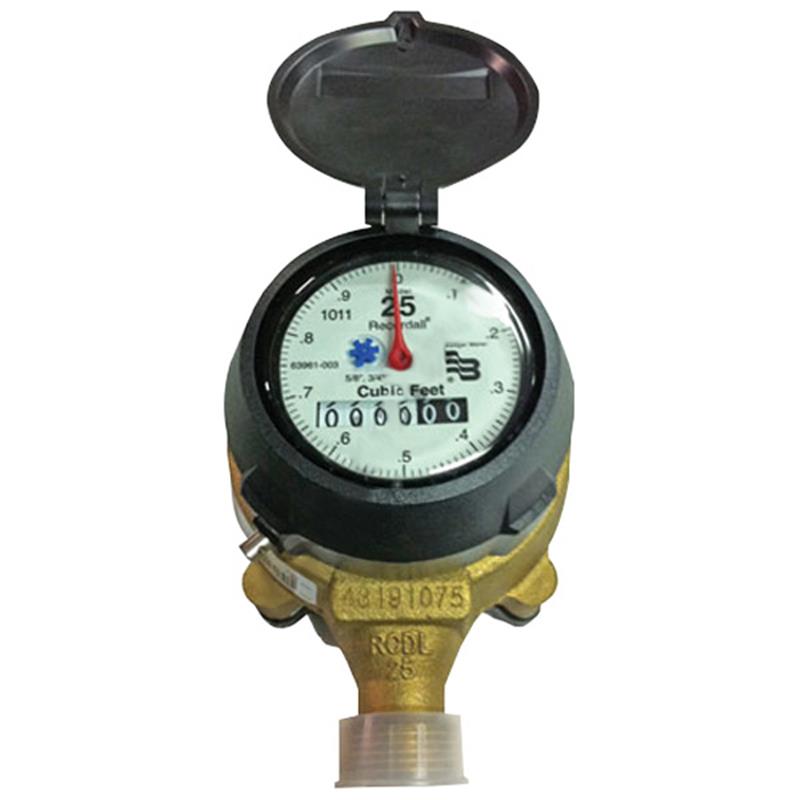

5/8" x 3/4" Badger M-25 Cubic Feet Direct Read

Item Number: BM25L-1
Skip to product information
1 of 1
Regular price $140.41
In Stock (10)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Badger

  • Lead-Free Bronze Alloy Housing
  • Weight: 4.5 lb
  • Meter Size: 5/8" x 3/4"
  • Register Type: Cubic Feet Direct Read
  • Maximum Operating Pressure: 150 PSI
  • Maximum Operating Temperature: 80° F (26° C)
  • NSF/ANSI/CAN Standards 61 and 372 Certified
  • AWWA Standard C700 Compliant
  • Register Capacity: 1,000,000 Cubic Feet

Description

The 5/8" x 3/4" Badger M-25 Cubic Feet Direct Read meter is a lead-free bronze alloy disc meter designed for accurate measurement of potable cold water. Ideal for residential, commercial, and industrial services, it features a nutating disc, positive displacement measuring element, and a permanently sealed, straight-reading register with 1,000,000 cubic feet capacity. Certified to NSF/ANSI/CAN Standards 61 and 372 and AWWA C700 compliant, this durable meter operates up to 150 PSI and 80°F, ensuring reliable, low-maintenance performance. Tamper-proof options enhance security.

Help Me Connect

Connections

  • This meter is designed for installations requiring a 3/4 inch NPT tailpiece pipe thread for connection.
  • Optional tailpieces and unions are available to accommodate various pipe types and sizes, including those that may be slightly misaligned during installation.
  • The meter's spud thread bore diameter is 3/4 inch (DN 15 mm).
View full details

Collapsible content

Additional Details

The Badger Meter Recordall Model 25 is a 5/8" x 3/4" lead-free bronze alloy disc meter designed for accurately measuring potable cold water in residential, commercial, and industrial services where flow is in one direction only.

This meter features a permanent magnetic drive, tamper-proof design, and is built for long-term, low-maintenance operation.

Construction

  • Constructed from lead-free bronze alloy for the meter housing and externally threaded spuds.
  • The measuring chamber utilizes a corrosion-resistant engineered polymer material.
  • Composed of three basic components: meter housing, measuring chamber, and a permanently sealed register.

Operation & Performance

  • Water flows through an integral strainer into the measuring chamber, causing the internal disc to nutate.
  • A drive magnet transmits the disc's motion to a follower magnet within the permanently sealed register.
  • Meets or exceeds AWWA Standard C700 registration accuracy for low flow (95%), normal operating (100 ±1.5%), and maximum continuous operation rates.

Register Features

  • A straight-reading, permanently sealed magnetic drive register is included, eliminating moisture and contaminants.
  • Features a six-odometer wheel totalization display, a 360° test circle with a center sweep hand, and a flow finder to detect leaks.
  • Register gearing is made of self-lubricating engineered polymer for minimized friction and extended life.
  • The multi-position register simplifies installation and reading.
  • Capacity: 1,000,000 cubic feet.

Maintenance & Tamper-Proof Design

  • Designed for minimal maintenance; the register, measuring chamber, and strainer can be replaced without removing the meter housing.
  • Features include an optional tamper detection seal wire screw, TORX® tamper-resistant seal screw, or proprietary tamper-resistant keyed seal screw.
  • A built-in strainer has an effective straining area of twice the inlet size.

Specifications

  • Model: 25
  • Meter Size: 5/8 inch x 3/4 inch
  • Register Type: Cubic Feet Direct Read
  • Laying Length: 7-1/2 in. (190 mm)
  • Height Register: 4-15/16 in. (125 mm)
  • Centerline Base: 1-11/16 in. (42 mm)
  • Width: 4-1/4 in. (108 mm)
  • Approx. Shipping Weight: 4-1/2 lb (2 kg)
  • Maximum Operating Temperature: 80° F (26° C)
  • Maximum Operating Pressure: 150 PSI (10 bar)
  • Measuring Element: Nutating disc, positive displacement
  • Typical Operating Range: 0.5 to 25 GPM (0.11 to 5.7 m³/hr)
  • Low Flow Accuracy: Min. 98.5% at 0.25 GPM (0.057 m³/hr)
  • Maximum Continuous Operation: 15 GPM (3.4 m³/hr)
  • Pressure Loss (at 15 GPM): 2.8 PSI (0.19 bar)
  • Coupling Nut and Spud Thread: 1 (3/4) inch
  • Tailpiece Pipe Thread (NPT): 3/4 inch
  • Meter Connections (Spud Thread Bore Diameter): 3/4 in. (DN 15 mm)
  • Register Capacity: 1,000,000 ft³

Materials

  • Meter Housing: Lead-free bronze alloy
  • Housing Bottom Plates: Cast iron, lead-free bronze alloy, engineered polymer
  • Measuring Chamber: Engineered polymer
  • Disc: Engineered polymer
  • Trim: Stainless steel
  • Strainer: Engineered polymer
  • Disc Spindle: Stainless steel
  • Magnet: Ceramic
  • Magnet Spindle: Engineered polymer
  • Register Lid and Shroud: Engineered polymer, bronze

Certificates & Approvals

  • NSF/ANSI/CAN Standards 61
  • NSF/ANSI/CAN Standards 372
  • AWWA Standard C700
  • AWWA Standard C707
  • Complies with Safe Drinking Water Act lead-free provisions

FAQs

What is the primary application of the Badger M-25 meter?

The Badger M-25 meter is primarily used for accurately measuring potable cold water in residential, commercial, and industrial services where water flows in one direction only.

What certifications does this meter hold?

This meter is certified to NSF/ANSI/CAN Standards 61 and 372. It also meets or exceeds AWWA Standard C700 for registration accuracy and complies with AWWA Standard C707 for registers.

What is the maximum operating pressure and temperature for this meter?

The maximum operating pressure for the Badger M-25 meter is 150 PSI (10 bar), and the maximum operating temperature is 80° F (26° C).

What type of register does the M-25 meter use and what is its capacity?

The M-25 meter uses a straight-reading, permanently sealed magnetic drive register that displays totalization in cubic feet. Its capacity is 1,000,000 cubic feet.

Is this meter made with lead-free materials?

Yes, the Recordall Disc Series meters, including the Model 25, are constructed with a lead-free bronze alloy housing and comply with the lead-free provisions of the Safe Drinking Water Act.
