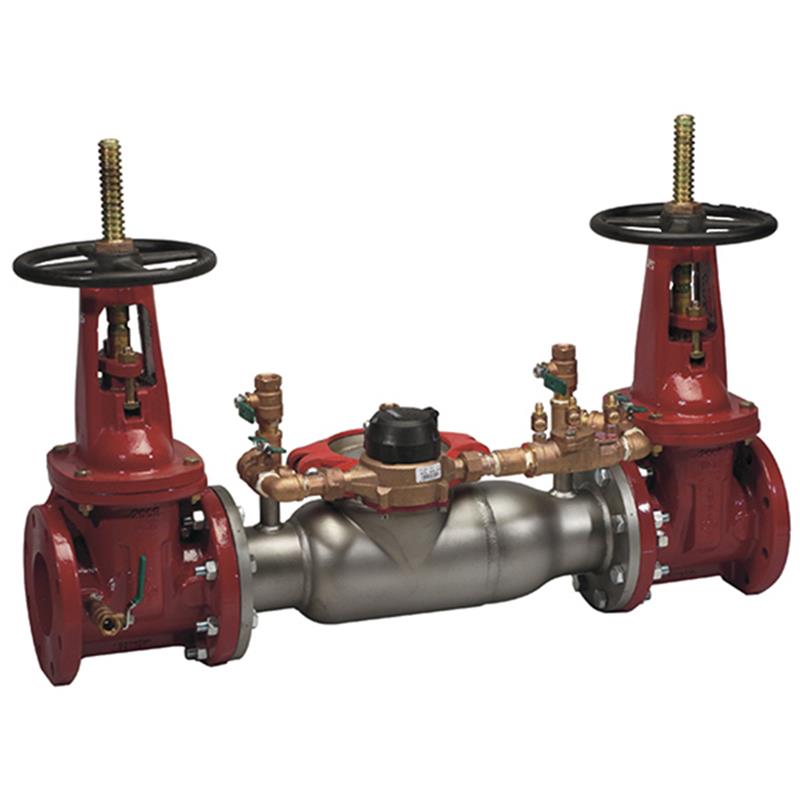

6 3000SS-LG-GPM

Item Number: 0690502
1 1
$9,720.01
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Nominal Size: 6 inch
  • Weight: 107.0 lb
  • Shutoff Valves: Less Shutoff
  • Body Material: Stainless Steel
  • Meter Type: Gallons per Minute (GPM) Meter
  • Maximum Working Pressure: 175 psi
  • Installation: Horizontal or vertical "flow up"
  • Head Loss: Low with Cam-Check Assembly
  • Maintenance: Single top access for easy servicing

Description

This 6 inch double check detector backflow preventer assembly (3000SS-LG) is designed for non-health hazard containment in fire protection systems. It effectively prevents the reverse flow of fire protection substances and non-potable water into the potable water supply due to backsiphonage or backpressure. Featuring a lightweight stainless steel body, it offers long-term corrosion protection and reduces installation costs. The assembly includes a gallon per minute meter for leak detection and is approved for both horizontal and vertical 'flow up' installation. This compact unit has a single top access cover, allowing for easy maintenance without special tools. Item number 0690502.

Help Me Connect

Installation & Use

  • Connects to 6 inch flanged piping at the service line entrance of a fire protection system or other non-health hazard cross-connection.
  • Designed to prevent the reverse flow of non-potable substances into the potable water supply.
  • Approved for horizontal or vertical "flow up" installation.
  • Consult local water authority, building, and plumbing codes for specific installation requirements.
View full details

Additional Details

This 6 inch double check detector backflow preventer assembly is designed to prevent the reverse flow of fire protection substances and non-potable water into the potable water supply due to backsiphonage or backpressure. It is ideal for protecting non-health hazard cross-connections, such as fire protection systems and other service line contaminants.

This compact, modular backflow preventer is approved for horizontal or vertical "flow up" installation and features a single access cover for easy maintenance.

Features

  • Cam-Check Assembly valve provides low head loss.
  • Stainless steel body provides long term corrosion protection and maximum strength.
  • Lightweight stainless steel construction reduces installation and shipping costs.
  • Single top access cover with two-bolt grooved style coupling ensures ease of maintenance.
  • No special tools required for servicing.
  • Compact construction allows for smaller vaults and enclosures.
  • Furnished with a gallon per minute meter for detecting underground leaks and unauthorized water use.
  • Approved for horizontal or vertical "flow up" position.

WARNING: It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Consult your local water authority, building, and plumbing codes before installation.

Specifications

  • Product Type: Double Check Detector Backflow Preventer Assembly
  • Nominal Size: 6 inch
  • Model: 3000SS-LG
  • Shutoff Valves: Less Shutoff
  • Body Material: 300 Series Stainless Steel
  • Internal Metal Parts: 300 Series Stainless Steel
  • Check Assembly Material: Noryl®
  • Meter Type: Gallons per Minute (GPM)
  • Installation Orientation: Horizontal or Vertical "Flow Up"
  • Temperature Range: 33°F – 110°F (0.5°C – 43°C)
  • Maximum Working Pressure: 175 psi (12 bar)

Certificates & Approvals

  • Standards: ASSE 1048, AWWA C510-92, CSA B64.5, UL 1469
  • Approvals: USC Foundation for Cross-Connection Control and Hydraulic Research

FAQs

What is the primary purpose of this backflow preventer?

This 6 inch double check detector backflow preventer assembly is designed to prevent the reverse flow of fire protection substances and non-potable water into the potable water supply, protecting against backsiphonage and backpressure.

What are the key features of its construction?

It features a lightweight, 300 Series stainless steel body for long-term corrosion protection and reduced installation costs. The assembly includes Cam-Check valves for low head loss and a single top access cover for easy maintenance.

Can this assembly be installed in any orientation?

Yes, this backflow preventer is approved for installation in both horizontal and vertical "flow up" positions, providing flexibility for various system configurations.

What kind of meter is included with this assembly?

This model is furnished with a gallon per minute (GPM) meter, which helps detect underground leaks and unauthorized water use within the system.

What is the maximum operating pressure and temperature range for this device?

The maximum working pressure for this assembly is 175 psi (12 bar). It operates effectively within a temperature range of 33°F to 110°F (0.5°C to 43°C).
