6 3000SS-OSY-TS-GPM

Item Number: 88003096
1 1
$13,637.89
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 6 inch
  • Weight: 535.0 lb
  • Body Material: Stainless Steel (300 Series)
  • Cam-Check valves for low head loss
  • OSY shutoffs with tamper switch
  • Integrated GPM meter for leak detection
  • Approved for horizontal or vertical "flow up" installation
  • UL Classified (OSY Only) and FM Approved
  • Compact and lightweight for easier installation

Description

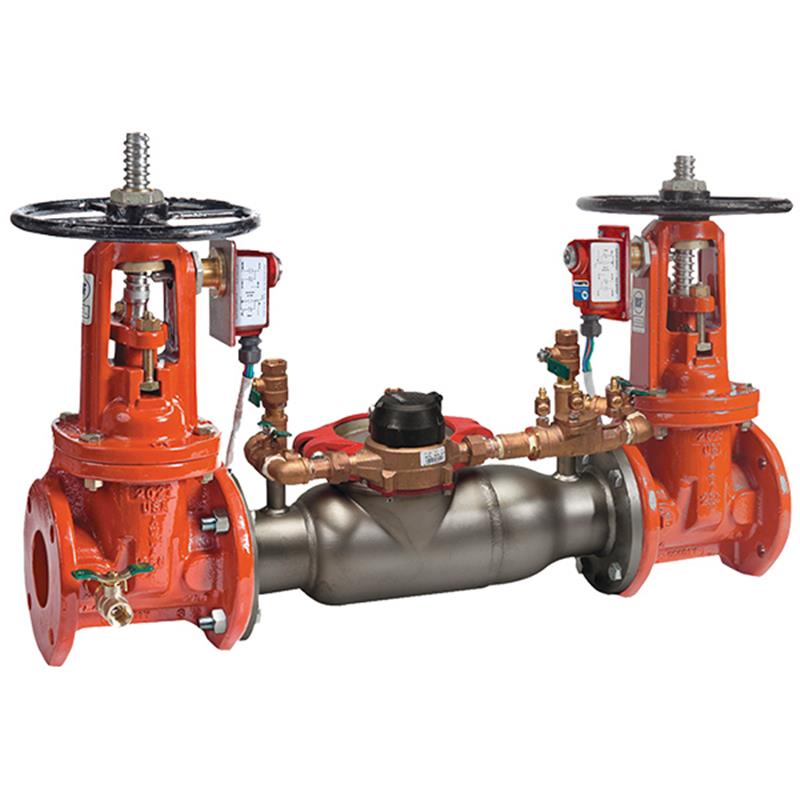

This 6 inch 3000SS Double Check Detector Backflow Preventer Assembly is designed to protect potable water supplies from non-health hazard contaminants, such as those found in fire protection systems. Featuring a lightweight stainless steel body, it offers excellent corrosion protection and durability. The assembly includes OSY shutoffs with an integrated tamper switch and Cam-Check valves for low head loss. A gallon per minute meter is furnished to detect leaks and unauthorized water use. Approved for both horizontal and vertical "flow up" installation, it is UL Classified and FM Approved. Item number 88003096.

Help Me Connect

This 6 inch 3000SS Double Check Detector Backflow Preventer Assembly is specifically designed for installation on fire protection systems to prevent the reverse flow of non-potable substances (such as glycerin wetting agents or stagnant water) into the public potable water supply. It is used at cross-connections identified as non-health hazards to ensure water safety. The OSY shutoffs with integrated supervisory switches facilitate connection into existing alarm or monitoring systems.

View full details

Additional Details

This 6 inch 3000SS Double Check Detector Backflow Preventer Assembly with OSY Shutoffs and Tamper Switch is designed to prevent the reverse flow of fire protection system substances and non-potable water into the potable water supply, in accordance with water utility non-health hazard containment requirements. It protects against backsiphonage and backpressure from contaminants found at service line entrances or within fire protection systems.

Features

  • Cam-Check Assembly valves provide low head loss.
  • Short lay length is ideally suited for retrofit installations.
  • Stainless steel body is half the weight of competitive designs, reducing installation and shipping costs.
  • Stainless steel construction provides long term corrosion protection and maximum strength.
  • Single top access cover with two-bolt grooved style coupling for ease of maintenance.
  • No special tools required for servicing.
  • Compact construction allows for smaller vaults and enclosures.
  • Furnished with a 5/8" x 3/4" bronze meter (gpm or cfm) to detect underground leaks and unauthorized water use.
  • May be installed in horizontal or vertical "flow up" position (ASSE Only).
  • Includes an integrated supervisory switch as an option on each gate valve of the OS&Y model (on the OS&Y model with tamper switch).

WARNING: It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing, consult your local water authority, building, and plumbing codes.

Specifications

  • Size: 6 inch
  • Assembly Type: Double Check Detector Backflow Preventer
  • Shutoffs: OSY (Outside Stem and Yoke)
  • Valve Type: Cam-Check Assembly
  • Body Material: Stainless Steel (300 Series)
  • Internal Metal Parts: 300 Series Stainless Steel
  • Main Check Body: 300 Series Stainless Steel
  • Check Assembly: Noryl/Flame Dimension (in accordance with AWWA Class D)
  • Meter: 5/8" x 3/4" Bronze Meter (gpm or cfm)
  • Installation Position: Horizontal or Vertical "Flow Up" (ASSE Only)
  • Maximum Working Pressure: 175 PSI (12 bar)
  • Temperature Range: 33°F - 110°F (0.5°C - 43°C)

Certificates & Approvals

  • ASSE 1048
  • AWWA C510-92
  • CSA B64.5
  • UL 1469
  • UL Classified (OSY Only)
  • FM Approved (Sizes 2 1/2" – 10", OSY Only)
  • USC Foundation for Cross-Connection Control and Hydraulic Research

FAQs

What is the primary purpose of this backflow preventer?

This 6 inch Double Check Detector Backflow Preventer Assembly is designed to prevent the reverse flow of fire protection system substances and other non-potable water from entering the potable water supply, protecting against backsiphonage and backpressure.

What size is this backflow preventer?

This specific assembly is 6 inches in size. It is part of the Series 3000SS which is available in sizes from 2 1/2 inches to 12 inches, but this product is a 6 inch unit.

Can this backflow preventer be installed in any orientation?

Yes, this assembly may be installed in either a horizontal or vertical "flow up" position, as approved by ASSE standards.

Does this product include a meter?

Yes, it is furnished with a 5/8" x 3/4" bronze meter (gpm or cfm). This meter helps detect underground leaks and unauthorized water use.

What approvals and standards does this backflow preventer meet?

This assembly meets ASSE 1048, AWWA C510-92, CSA B64.5, and UL 1469 standards. It is also UL Classified (OSY Only) and FM Approved for sizes 2 1/2" – 10" (OSY Only).
