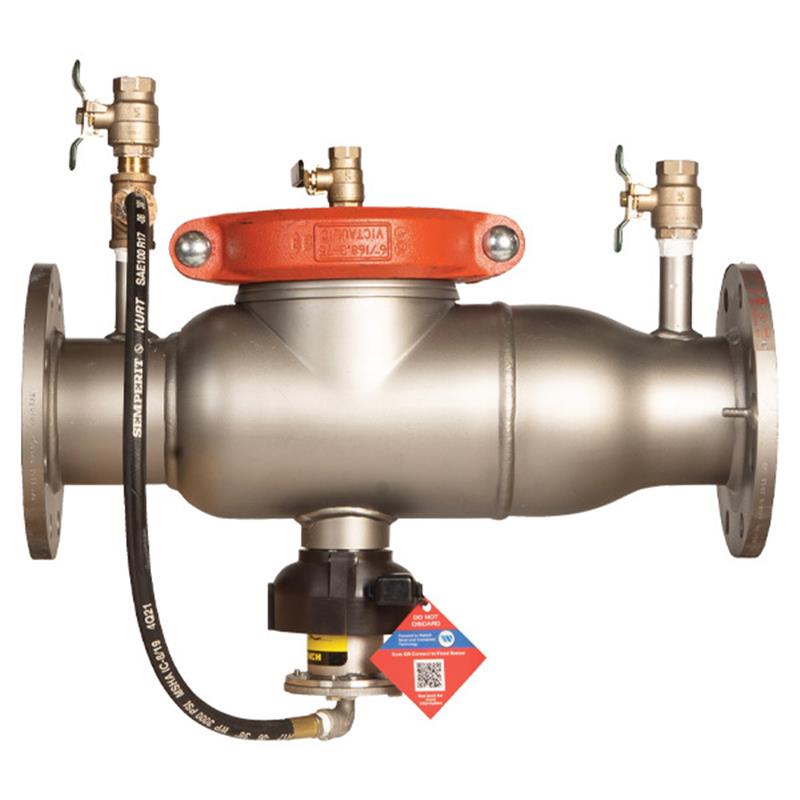

6 4000SS-LG-FS

Item Number: F0690505
1 1
$12,457.49
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • 6 inch Reduced Pressure Zone Assembly
  • Weight: 101.0 lb
  • Lead Free: Yes (wetted surface <0.25% lead)
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 33°F - 110°F
  • Stainless steel body and internal parts
  • Includes SentryPlus Alert® Flood Sensor
  • Compact, modular design for easy maintenance
  • Approvals: ASSE 1013, CSA B64.5

Description

This 6 inch AMES 4000SS lead free reduced pressure zone backflow preventer assembly protects potable water supplies from health hazards caused by backsiphonage and backpressure. Constructed with a lightweight 300 Series stainless steel body, it offers long-term corrosion resistance and easy retrofitting due to its short lay length. The assembly includes an advanced SentryPlus Alert® flood sensor to detect excessive relief valve discharges, providing early notification when activated with an add-on connection kit. Rated for 175 psi and temperatures from 33°F to 110°F, this assembly features a patented cam-check design for maximum flow. Item number F0690505.

Help Me Connect

Connections

  • This 6 inch Reduced Pressure Zone Assembly features flanged connections designed for compatibility with AWWA Class D flanges.
  • It is supplied without shutoff valves (less gates), allowing for custom shutoff valve selection to meet specific installation requirements.
  • The assembly includes four ball type test cocks for easy testing and maintenance.

Flood Sensor Connectivity

  • The integrated SentryPlus Alert® flood sensor requires an add-on connection kit for activation and communication.
  • Compatible connection kits support BMS, cellular network communication, or integration with BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi when paired with the Sensor Control Monitor.
View full details

Additional Details

This 6 inch lead free reduced pressure zone backflow preventer assembly is designed to prevent the reverse flow of fire protection substances and water of non-potable quality from being pumped or siphoned into the potable water supply due to backsiphonage and or backpressure. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards and from other contaminants found at the service line entrance.

This assembly without the shutoff valves features a short lay length lightweight stainless steel body, test cocks, a corrosive resistant bottom mounted relief valve, and a patented cam-check assembly.

Flood Detection

  • Includes a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve.
  • The sensor is installed on the assembly exterior and does not alter assembly functions or certifications.
  • Relays a signal that triggers notification to facility personnel for corrective action, thus limiting flooding and costly damage.
  • Requires an add-on connection kit to activate the flood sensor. Without the kit, the flood sensor is a passive component without communication.
  • Compatible with BMS, cellular network communication, or integrates with the Sensor Control Monitor for BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi.

Construction & Design

  • Lead Free* construction with wetted surfaces containing less than 0.25% lead by weight.
  • Stainless steel construction provides long-term corrosion resistance and maximum strength.
  • Main valve body is 300 Series stainless steel.
  • Lightweight stainless steel body is half the weight of competitive designs, reducing installation and shipping costs.
  • Short end-to-end dimensions make retrofitting easy.
  • Patented cam-check assembly provides maximum flow at low pressure drop and requires no special tools for servicing.
  • Compact modular design allows for smaller enclosures and facilitates easy maintenance with a single access cover for in-line repairs.
  • Stainless steel relief valve features a balanced rolling diaphragm to eliminate sliding seals and lower maintenance costs.

Specifications

General

  • Product Type: Reduced Pressure Zone Assembly
  • Series: 4000SS
  • Size: 6 inch
  • Lead Free: Yes (wetted surface <0.25% lead)
  • Temperature Range: 33°F - 110°F (0.5°C – 43°C)
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Shutoff Valves: Less Shutoff (LG Option)
  • Weight (without gates): 110 lb (50 kg)

Materials

  • Main Valve Body: 300 Series Stainless Steel
  • All Internal Metal Parts: 300 Series Stainless Steel
  • Check Assembly: Noryl®

Connections

  • Connection Type: Flanged
  • Flange Dimension: AWWA Class D
  • Test Cocks: Four ball type test cocks

Flood Sensor

  • Sensor Type: SentryPlus Alert® Flood Sensor
  • Activation: Requires add-on connection kit
  • Connectivity Options: BMS, Cellular, RS-485 Modbus (via Sensor Control Monitor), Wi-Fi (via Nexa® platform)

Certificates & Approvals

  • Standards: AWWA C511-92
  • Approvals: ASSE 1013
  • Approvals: CSA B64.5

FAQs

What does "Less Shutoff" mean for this backflow preventer?

"Less Shutoff" means this 6 inch AMES 4000SS assembly does not include integrated shutoff valves (also known as "gates"). This design allows installers to choose and install separate shutoff valves that best suit their specific piping system and local codes.

How does the SentryPlus Alert® flood sensor function?

The SentryPlus Alert® flood sensor detects excessive water discharges from the relief valve. When an add-on connection kit is used, it activates the sensor to relay signals for notification, helping to limit flooding and damage.

What connectivity options are available for the flood sensor?

The flood sensor can be connected via an add-on kit to support Building Management Systems (BMS), cellular network communication, or integrated with a Sensor Control Monitor for BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi.

What material is the main valve body made from?

The main valve body of the AMES 4000SS Reduced Pressure Zone Assembly is constructed from 300 Series stainless steel, providing excellent corrosion resistance and maximum strength. The check assembly uses Noryl®.

What is the maximum operating pressure and temperature range for this assembly?

This 6 inch backflow preventer has a maximum working pressure of 175 psi (12.1 bar) and an operating temperature range of 33°F to 110°F (0.5°C to 43°C).
