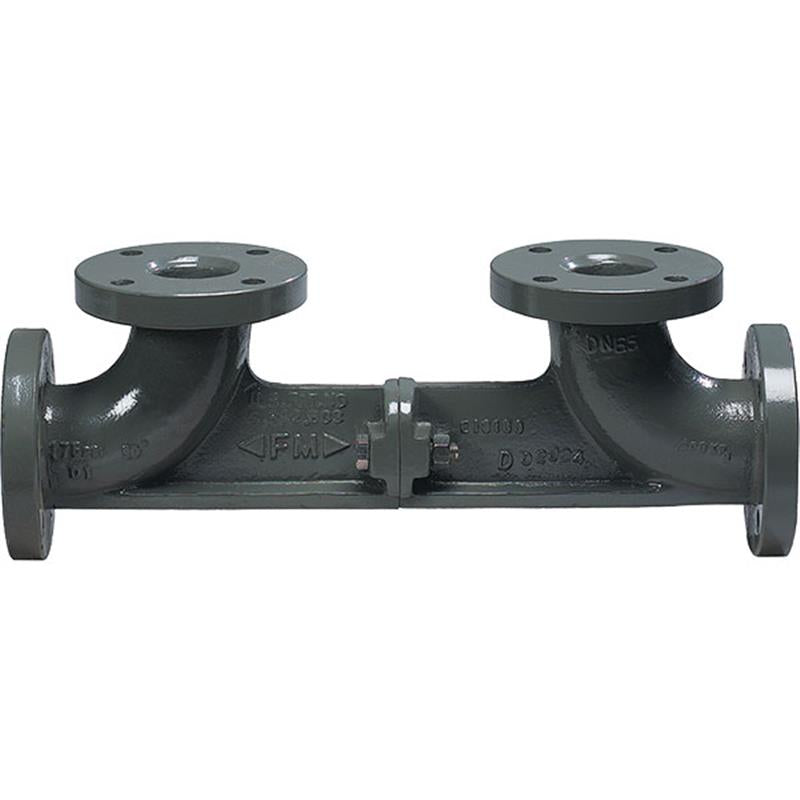

6 611-Flange x Flange

Item Number: 905207
1 1
$1,785.75
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Size: 6 inch
  • Weight: 229.0 lb
  • Body Material: Ductile iron A536 GR 65-45-12
  • Coating: Fusion epoxy coated
  • Fasteners: Stainless steel
  • Maximum Operating Pressure: 175 PSI
  • Eliminates thrust block requirements
  • Designed for "N" pattern backflow prevention valves
  • Lead Free* construction (<0.25% lead content by weight)

Description

This 6 inch FEBCO 611 Series valve setter is a flange by flange unit constructed from fusion epoxy coated ductile iron. It is specifically designed to augment the installation of "N" pattern or MasterSeries N-pattern backflow prevention valves, such as the LF870V, LF876VST, and LF880V series. Its integral ductile iron supports eliminate the need for thrust blocks by transferring downstream thrust. Key features include corrosion-resistant coating, stainless steel fasteners, and Lead Free* construction, ensuring compliance with installation requirements. It operates at a maximum working pressure of 175 PSI and connects via ANSI AWWA C153 A21.53-88 compliant flanges.

Help Me Connect

Compatibility

  • Designed to augment the installation of MasterSeries N-pattern backflow prevention valves, including Series LF870V, LF876VST, and LF880V.

Connections

  • Features flange by flange connections.
  • Flanges conform to ANSI AWWA C153 A21.53-88 standards.
  • Mechanical joint restraint devices may be used at pipe connections, depending on local conditions.
View full details

Additional Details

This 6 inch flange by flange valve setter is constructed of fusion epoxy coated ductile iron. It is designed to augment the installation of "N" pattern or MasterSeries N-pattern backflow prevention valves, eliminating the need for thrust blocks.

Features

  • Corrosion resistant fusion epoxy coated for longevity.
  • Eliminates thrust blocks or other restraints at the point of installation.
  • Integral ductile iron support between elbows transfers thrust downstream.
  • Features Lead Free* construction. The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight.

Construction & Materials

  • Body Material: Ductile iron A536 GR 65-45-12.
  • Coating: Fusion epoxy coated internal and external AWWA C550.
  • Bolts & Nuts: Stainless steel fasteners.
  • Flanges: ANSI AWWA C153 A21.53-88.

Specifications

  • Size: 6 inch
  • Body Material: Ductile iron A536 GR 65-45-12
  • Coating: Fusion epoxy coated internal and external AWWA C550
  • Bolts & Nuts Material: Stainless steel
  • Maximum Working Pressure: 175 PSI (12.1 bar)
  • Temperature Range: 32°F to 140°F (0°C to 60°C)
  • Flange Standard: ANSI AWWA C153 A21.53-88
  • Nominal Weight: 152 lbs
  • Overall Length (Dimension A): 29 inch
  • Overall Width (Dimension B): 16 inch
  • Overall Height (Dimension C): 6 1/2 inch

FAQs

What is the primary purpose of the FEBCO 611 valve setter?

The FEBCO 611 valve setter is designed to augment the installation of "N" pattern or MasterSeries N-pattern backflow prevention valves. It helps integrate these valves into a piping system while eliminating the need for thrust blocks.

What material is the FEBCO 611 valve setter made from?

The valve setter body is constructed from ductile iron (A536 GR 65-45-12). It features a fusion epoxy coating internally and externally for enhanced corrosion resistance.

What types of connections does this 6-inch valve setter use?

This valve setter uses flange by flange connections. The flanges conform to ANSI AWWA C153 A21.53-88 standards for compatibility with various piping systems.

What is the maximum working pressure for this valve setter?

The FEBCO 611 valve setter has a maximum working pressure of 175 PSI (12.1 bar). It can also withstand temperatures ranging from 32°F to 140°F (0°C to 60°C).

Is this product considered Lead Free?

Yes, the FEBCO 611 valve setter features Lead Free* construction. The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight, complying with Lead Free* installation requirements.
