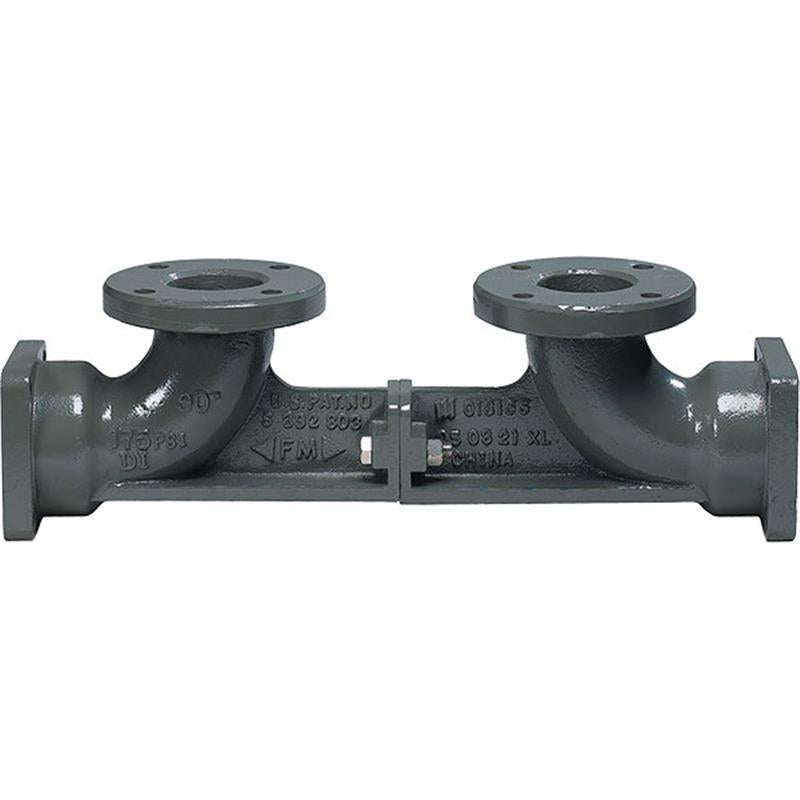

6 611-Mechanical Joint x Flange

Item Number: 905201
1 1
$1,785.79
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Size: 6 inch (150mm)
  • Weight: 232.0 lb
  • Connection Type: Mechanical Joint x Flange
  • Body Material: Ductile iron A536 GR 65-45-12
  • Coating: Fusion epoxy coated (internal and external AWWA C550)
  • Maximum Working Pressure: 175 PSI
  • Temperature Range: 32°F to 140°F
  • Fasteners: Stainless steel bolts & nuts
  • Lead Free* construction (less than 0.25% lead)

Description

This 6 inch FEBCO 611 Series valve setter features mechanical joint and flange connections, designed to facilitate the installation of MasterSeries N-pattern backflow prevention valves. Constructed from fusion epoxy coated ductile iron, it includes integral supports that eliminate the need for external thrust blocks by transferring downstream thrust. This unit is rated for a maximum operating pressure of 175 PSI and a temperature range of 32°F to 140°F. It utilizes stainless steel fasteners and boasts Lead Free* construction, making it suitable for potable water applications. Item number 905201.

Help Me Connect

Compatibility

  • This valve setter is specifically designed to augment the installation of MasterSeries N-pattern backflow prevention valves, such as the LF870V, LF876Vst, and LF880V series.

Connections

  • The mechanical joint end provides a secure connection to appropriate piping.
  • The flange end connects to compatible ANSI AWWA C153 A21.53-88 flanged piping or equipment.
  • Please note: Mechanical joint accessories, flange bolts, and gaskets are not included with this valve setter, except for the center joint components.
View full details

Additional Details

This 6 inch valve setter is constructed of fusion epoxy coated ductile iron and designed to augment the installation of MasterSeries N-pattern backflow prevention valves.

It features integral ductile iron supports between elbows that transfer thrust downstream, thereby eliminating the need for thrust blocks or other restraints at the point of installation.

Construction & Features

  • Corrosion resistant fusion epoxy coated body, internal and external to AWWA C550 standard.
  • Made with Lead Free* construction, meaning the wetted surface contains less than 0.25% of lead by weight.
  • Equipped with stainless steel bolts and nuts for durability.

Connections

  • One end features a mechanical joint connection.
  • The other end features an ANSI AWWA C153 A21.53-88 flange connection.

Specifications

  • Body Material: Ductile iron A536 GR 65-45-12
  • Size: 6 inch (150mm)
  • Connection Type: Mechanical Joint x Flange
  • Coating: Fusion epoxy coated internal and external AWWA C550
  • Bolts & Nuts: Stainless steel

Performance

  • Maximum Working Pressure: 175 PSI (12.1 bar)
  • Temperature Range: 32°F to 140°F (0°C to 60°C)

Certificates & Approvals

  • Flange Standard: ANSI AWWA C153 A21.53-88
  • Lead Free* Construction: Wetted surface contains less than 0.25% of lead by weight

Dimensions & Weight

  • Length (A): 29 inch (737mm)
  • Height (B): 16 inch (406mm)
  • Width (C): 6 1/2 inch (165mm)
  • Weight (Approximate): 152 lbs (69 kgs)

FAQs

What is the primary purpose of the FEBCO 611 valve setter?

This valve setter is designed to augment the installation of MasterSeries N-pattern backflow prevention valves, providing integral support and eliminating the need for thrust blocks between elbows.

What are the connection types for this valve setter?

This 6 inch valve setter features one mechanical joint connection and one ANSI AWWA C153 A21.53-88 flange connection.

What is the maximum operating pressure and temperature range?

The FEBCO 611 valve setter has a maximum working pressure of 175 PSI (12.1 bar) and operates within a temperature range of 32°F to 140°F (0°C to 60°C).

Is this valve setter suitable for potable water applications?

Yes, it features Lead Free* construction, meaning the wetted surface of the product that contacts consumable water contains less than 0.25% of lead by weight.

What materials are used in its construction?

The body is made from ductile iron A536 GR 65-45-12 with fusion epoxy coating (internal and external AWWA C550). It also includes stainless steel bolts and nuts.
