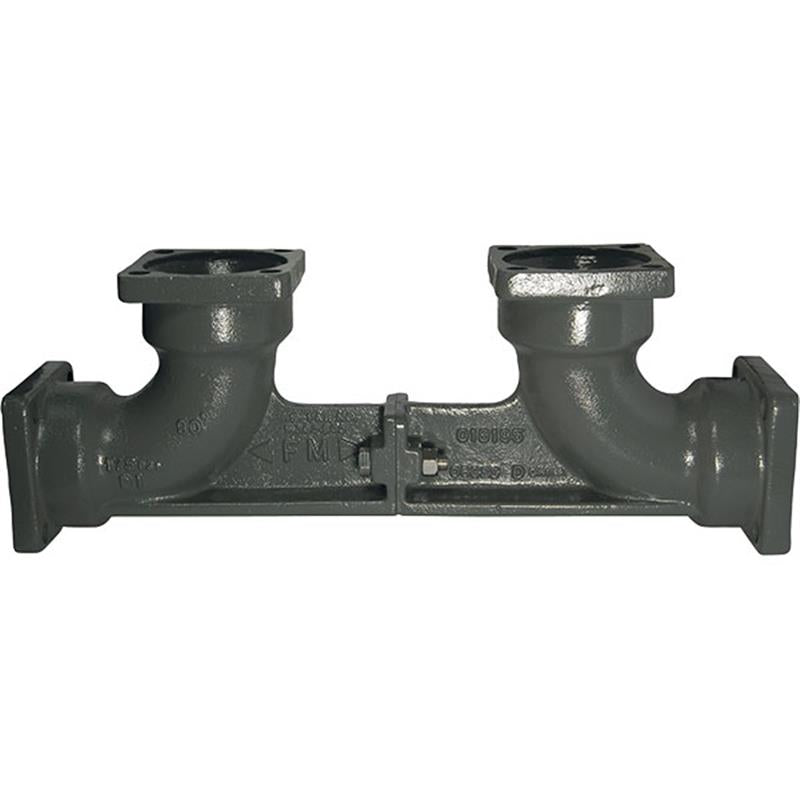

6 611-Mechanical Joint x Mechanical Joint

Item Number: 905331
1 1
$1,785.79
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Nominal Size: 6 inch
  • Weight: 248.0 lb
  • Connection Type: Mechanical Joint
  • Body Material: Ductile Iron
  • Coating: Fusion Epoxy Coated
  • Maximum Working Pressure: 175 PSI
  • Temperature Range: 32°F to 140°F
  • Lead Free* Construction
  • Eliminates Thrust Blocks

Description

The 6-inch FEBCO 611 Series Valve Setter features mechanical joint connections, designed to simplify the installation of MasterSeries N-pattern backflow prevention valves. Constructed from durable fusion epoxy coated ductile iron, this valve setter provides integral support between elbows, removing the need for thrust blocks. It offers corrosion-resistant performance and complies with Lead Free* installation requirements, operating up to 175 PSI within a 32°F to 140°F temperature range. Item number 905331.

Help Me Connect

This FEBCO 611 Series Valve Setter is equipped with Mechanical Joint connections on both ends.

It is specifically engineered to augment the installation of FEBCO MasterSeries N-pattern backflow prevention valves, including models like the LF870V, LF876VST, and LF880V series.

Mechanical joint restraint devices may be necessary at pipe connections, depending on local installation conditions. Please note that mechanical joint accessories, flange bolts, and gaskets are not included with this unit, except for the center joint.

View full details

Additional Details

The 6 inch FEBCO 611 Series Valve Setter with Mechanical Joint connections is constructed of fusion epoxy coated ductile iron. It is specifically designed to augment the installation of MasterSeries N-pattern backflow prevention valves, such as the LF870V, LF876VST, and LF880V series.

Integral ductile iron support between elbows transfers thrust downstream, effectively eliminating thrust block requirements between elbows. This valve setter also features corrosion resistant construction and complies with Lead Free* installation requirements.

Features

  • Corrosion resistant fusion epoxy coated.
  • Eliminates the need for thrust blocks or other restraints at the point of installation.
  • Integral ductile iron support between elbows.

Materials

  • Body: Ductile iron A536 GR 65-45-12
  • Coating: Fusion epoxy coated internal and external AWWA C550
  • Bolts & Nuts: Stainless steel

The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight, complying with Lead Free* requirements.

Specifications

  • Nominal Size: 6 inch (150 mm)
  • Connection Type: Mechanical Joint
  • Body Material: Ductile iron A536 GR 65-45-12
  • Coating: Fusion epoxy coated internal and external AWWA C550
  • Bolts & Nuts Material: Stainless steel
  • Maximum Working Pressure: 175 PSI (12.1 bar)
  • Temperature Range: 32°F to 140°F (0°C to 60°C)
  • Approximate Weight: 152 lbs (69 kgs)

Certificates & Approvals

  • Lead Free* Construction (less than 0.25% lead by weight)

FAQs

What is the primary purpose of the FEBCO 611 Series Valve Setter?

This valve setter is designed to augment the installation of FEBCO MasterSeries N-pattern backflow prevention valves, such as the LF870V, LF876VST, and LF880V series. It provides structural support to simplify installation.

What type of connections does this 6 inch valve setter use?

This specific valve setter features Mechanical Joint connections on both ends, suitable for compatible piping systems.

What are the maximum operating pressure and temperature range for this valve setter?

The valve setter has a maximum working pressure of 175 PSI (12.1 bar) and is suitable for temperatures ranging from 32°F to 140°F (0°C to 60°C).

What materials are used in the construction of this valve setter?

The body is made of ductile iron A536 GR 65-45-12, with internal and external fusion epoxy coating (AWWA C550). The bolts and nuts are made of stainless steel.

Is this FEBCO 611 valve setter compliant with lead-free requirements?

Yes, this product features Lead Free* construction. The wetted surface contacted by consumable water contains less than 0.25% of lead by weight, complying with Lead Free* installation requirements.
