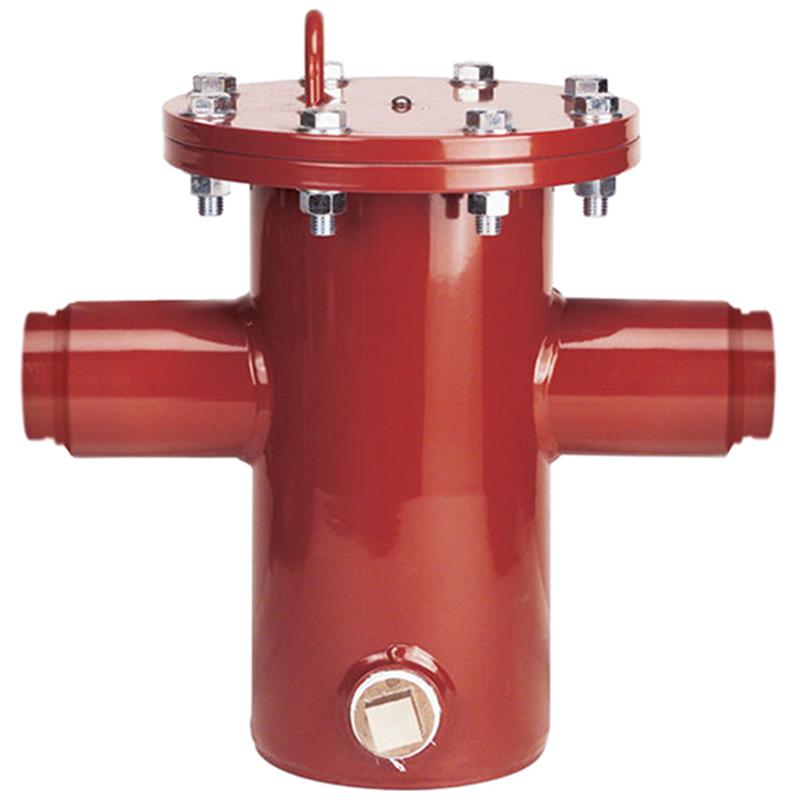

6 7001-1-Clean Out-Groove x Groove

Item Number: 0690975
1 1
$11,972.25
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Nominal Pipe Size: 6 inch (150mm)
  • Weight: 261.0 lb
  • Body Material: Epoxy coated steel
  • Connections: Grooved (Groove x Groove)
  • Cleanout Port: 1
  • Maximum Working Pressure: 175 PSI
  • Maximum Water Temperature: 140°F
  • Screen Material: 304 Stainless Steel with .25" perforation
  • CULUS Listed 321, FM Approved Class 5551

Description

This 6 inch Ames Fire & Waterworks Series 7001 fire service strainer is engineered to protect water spray systems from clogging by trapping foreign material 1/4 inch diameter or larger. It features a durable epoxy-coated steel body with grooved connections on both ends and a single cleanout port for easy maintenance. UL Listed and FM Approved, this strainer is suitable for non-potable applications, handling a maximum working pressure of 175 PSI and water temperatures up to 140°F. Its 304 stainless steel screen ensures effective filtration. Item number 0690975.

Help Me Connect

This 6 inch Ames Fire & Waterworks Series 7001 strainer features grooved connections on both ends, designed to connect to compatible grooved piping systems. The grooved ends conform to AWWA C606 standards, ensuring secure and reliable integration into your fire protection water spray system.

View full details

Additional Details

This 6 inch Ames Fire & Waterworks Series 7001 fire service strainer is designed for use in non-potable water spray systems to protect against clogging from large particles, specifically those 1/4 inch diameter or larger, that could foul sprinkler heads and other devices.

Features

  • Epoxy coated fabricated steel strainer body
  • Grooved connections (groove x groove)
  • Single cleanout port
  • Large solids trap to minimize screen blockage
  • 304 stainless steel strainer element with .25 diameter perforation
  • Filter designed for removal and replacement without removing the body from the line

▲ WARNING: It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing standard material product, consult your local water authority, building and plumbing codes.

Specifications

  • Nominal Pipe Size: 6 inch (150mm)
  • Body & Cover Material: Fusion-bonded epoxy coated steel
  • Screen Material: 304 stainless steel
  • Screen Perforation: .25 diameter
  • Clean-Out Plug Material: Brass or Bronze
  • Connections: Grooved
  • Groove Standard: AWWA C606
  • Maximum Working Pressure: 175 PSI (12.1 bar)
  • Maximum Water Temperature: 140°F (60°C)
  • Plugged Filter Withstand Pressure: 125 PSI (8.6 bar)
  • Clean Filter Friction Loss: Not to exceed 3 PSI (21 kPa)
  • Foreign Material Friction Loss: Not to exceed 10 PSI (69 kPa)
  • Open Screen Area: At least 6 times nominal pipe size open area

Certificates & Approvals

  • CULUS Listed 321
  • FM Approved Class 5551

FAQs

What is the primary purpose of this Ames fire service strainer?

This 6 inch Ames Fire & Waterworks Series 7001 strainer is used in non-potable water spray systems to protect against clogging from particles measuring 1/4 inch diameter or larger, ensuring system integrity and preventing damage to devices.

What type of connections does this strainer use?

This strainer features grooved connections on both ends, designed for easy installation into compatible grooved piping systems. The grooves conform to AWWA C606 standards, ensuring a secure fit.

What materials are used in the construction of the strainer?

The body and cover are made from fusion-bonded epoxy coated steel, providing durability and corrosion resistance. The internal strainer element is 304 stainless steel with a .25 diameter perforation, and clean-out plugs are brass or bronze.

What are the maximum operating pressure and temperature ratings?

This strainer has a maximum working pressure of 175 PSI (12.1 bar). It is designed to operate safely with water temperatures up to 140°F (60°C).

Is this product approved for fire protection applications?

Yes, the Ames Series 7001 fire service strainer is CULUS Listed 321 and FM Approved Class 5551. These certifications confirm its reliability and suitability for use in fire protection systems.
