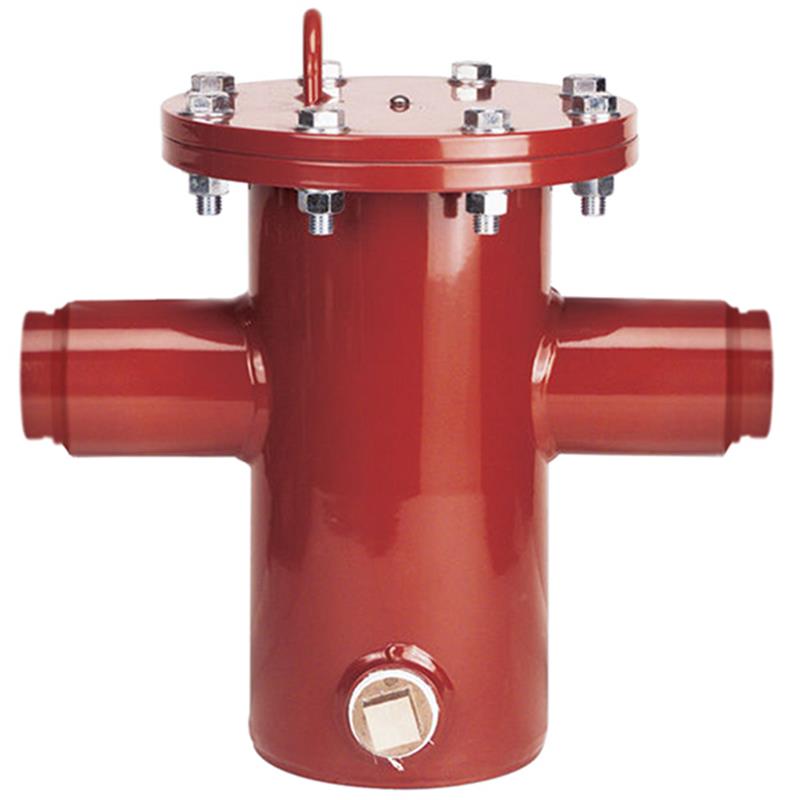

6 7002-2-Clean Outs-Groove x Groove

Item Number: 0691048
1 1
$11,972.25
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Nominal Pipe Size: 6 inch
  • Weight: 271.0 lb
  • Connections: Grooved
  • Number of Cleanouts: 2
  • Body Material: Fusion-bonded epoxy coated steel
  • Strainer Element Material: 304 stainless steel
  • Maximum Working Pressure: 175 PSI
  • UL Listed 321
  • FM Approved Class 5551

Description

The 6 inch Ames Fire and Waterworks Series 7002 fire service strainer is an epoxy-coated steel basket strainer with two cleanout ports and grooved connections, designed for non-potable fire protection systems. It prevents clogging by trapping foreign material 1/4 inch diameter or larger, typically installed upstream of system devices. This strainer features a 304 stainless steel screen element and is rated for a maximum working pressure of 175 PSI and temperatures up to 140°F. It is UL Listed and FM Approved, ensuring reliability for fire service applications. Item number 0691048.

Help Me Connect

This strainer features 6 inch grooved connections for easy installation into a piping system. Grooved connections use a coupling to join two grooved pipe ends, allowing for a secure, leak-free connection. Ensure your piping system has matching 6 inch grooved pipe ends for proper installation.

Grooves

  • AWWA C606
View full details

Additional Details

This 6 inch Ames Fire and Waterworks Series 7002 fire service strainer is designed to protect water spray systems from clogging by trapping foreign material. It is suitable for non-potable applications in fire service protection systems.

Features

  • Epoxy coated fabricated steel body and cover
  • Groove x groove connections for easy installation
  • Features two cleanout ports for maintenance
  • Large solids trap design helps minimize screen blockage
  • Strainer element is 304 stainless steel with .25 inch diameter perforations
  • Filter is removable for replacement or repair without removing the body from the line

It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing standard material product, consult your local water authority, building and plumbing codes.

Specifications

  • Body & Cover Material: Fusion-bonded epoxy coated steel
  • Strainer Element Material: 304 stainless steel
  • Strainer Element Perforation: .25 inch
  • Clean-Out Plug Material: Brass or Bronze
  • Connections: Grooved
  • Groove Standard: AWWA C606
  • Nominal Pipe Size: 6 inch (150mm)
  • Maximum Working Pressure: 175 PSI (12.1 bar)
  • Maximum Water Temperature: 140°F (60°C)
  • Rated Flow: 1350 GPM (5130 LPM)
  • Filter Withstand Pressure (Plugged): 125 PSI
  • Minimum Open Screen Area: 6 times greater than nominal pipe size open area
  • Friction Loss (with foreign materials): Not to exceed 10 PSI (69 kPa)
  • Friction Loss (clean filter/water): Not to exceed 3 PSI (21 kPa)

Certificates & Approvals

  • CULUS Listed 321
  • FM Approved Class 5551

FAQs

What is the primary use of this strainer?

This strainer is used in non-potable fire protection systems, specifically with water spray systems, to prevent clogging by trapping foreign materials that could foul sprinkler heads or damage system devices.

What is the maximum working pressure and temperature for this strainer?

The strainer has a maximum working pressure of 175 PSI (12.1 bar) and can handle water temperatures up to 140°F (60°C).

What materials are used in its construction?

The body and cover are made of fusion-bonded epoxy coated steel. The strainer element is 304 stainless steel with .25 inch diameter perforations, and the clean-out plugs are brass or bronze.

What type of connections does this strainer have?

This strainer features 6 inch grooved connections. The grooves conform to AWWA C606 standards, ensuring compatibility with standard grooved piping systems.

What certifications does this strainer hold?

This strainer is CULUS Listed 321 and FM Approved Class 5551, confirming its suitability and reliability for fire service applications.
