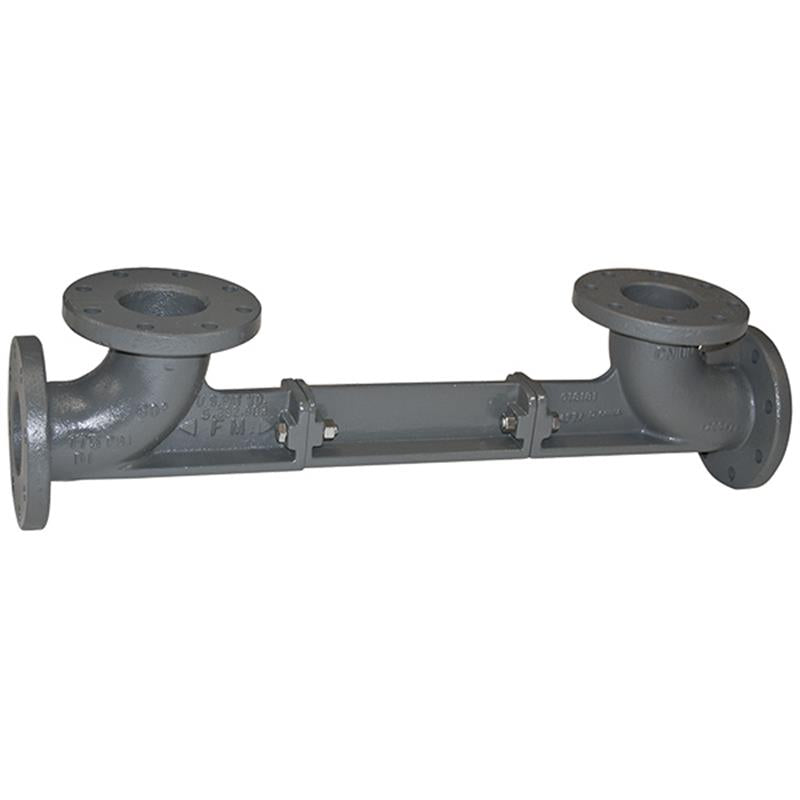

6 AVS-C Flange x Mechanical Joint

Item Number: 0693217
1 1
$2,138.24
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 6 inch (150mm)
  • Weight: 282.0 lb
  • Connection Type: Mechanical Joint x Flange
  • Body Material: Ductile Iron
  • Maximum Operating Pressure: 175 PSI
  • Temperature Range: 32°F to 140°F
  • Coating: Fusion epoxy coated for corrosion resistance
  • Eliminates thrust blocks
  • Lead Free: Wetted surface contains less than 0.25% lead

Description

The AMES 6 inch Series AVS Valve Setter (MJxFL) is a fusion epoxy-coated ductile iron component designed to augment "N" series backflow prevention valve installations. This model features a Mechanical Joint on one side and a Flange connection on the other. It eliminates the need for external thrust blocks, offering significant installation benefits. Constructed from corrosion-resistant ductile iron with stainless steel bolts, it withstands a maximum working pressure of 175 PSI and temperatures from 32°F to 140°F. The wetted surface contains less than 0.25% lead, meeting lead-free requirements for consumable water. Item number 0693217.

Help Me Connect

The AMES Series AVS valve setters, including this 6 inch Mechanical Joint by Flange model, are designed for use with "N" series backflow prevention valves. This particular model features a Mechanical Joint on one side and a Flange connection on the other, allowing for versatile integration into piping systems.

Connections

  • The Mechanical Joint side is designed to connect to pipes using mechanical joint restraint devices (depending on local conditions), typically requiring an external gland, bolts, and gasket (not included).
  • The Flange connection conforms to ANSI B16.1 Class 125 standards and connects to matching flanged pipe or components using flange bolts and gaskets (not included).

Note: Mechanical joint accessories, flange bolts, and gaskets are not included with this valve setter, except for center joints. Consult local governing authorities for specific installation requirements.

View full details

Additional Details

The AMES 6 inch Series AVS valve setter, model MJxFL (Mechanical Joint by Flange), is designed to augment the installation of "N" series backflow prevention valves. This valve setter eliminates the need for external thrust blocks or other restraints at the point of installation.

Features

  • Corrosion resistant fusion epoxy coated internally and externally.
  • Eliminates the need for external thrust blocks or other restraints at the point of installation.
  • Integral ductile iron support between elbows transfers thrust downstream.
  • Flanges conform to ANSI B16.1 Class 125 (Standard) and ANSI AWWA C153 A21.53-88.

Pressure - Temperature

  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Temperature Range: 32°F to 140°F (0°C to 60°C)

Materials

  • Body: Ductile iron A536 GR 65-45-12
  • Coating: Fusion epoxy coated internal and external (AWWA C550)
  • Bolts & Nuts: Stainless steel (Note: Mechanical joint accessories, flange bolts and gaskets are not included, except for center joints).

The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight.

Specifications

  • Body Material: Ductile Iron A536 GR 65-45-12
  • Coating: Fusion epoxy coated internal and external, AWWA C550
  • Bolts & Nuts Material: Stainless Steel
  • Connection Type: Mechanical Joint x Flange
  • Nominal Size: 6 inch (150mm)
  • Maximum Working Pressure: 175 PSI (12.1 bar)
  • Temperature Range: 32°F to 140°F (0°C to 60°C)
  • Weight: 175 lbs (79 kgs)

Certificates & Approvals

  • Flanges: ANSI B16.1 Class 125 (Standard)
  • Flanges: ANSI AWWA C153 A21.53-88

FAQs

What is the primary purpose of the AMES 6 inch AVS Valve Setter?

The primary purpose of this valve setter is to augment the installation of "N" series backflow prevention valves, specifically by eliminating the need for thrust blocks or other external restraints at the point of installation.

What are the connection types for this specific 6-inch AVS valve setter?

This specific model (MJxFL) features a Mechanical Joint connection on one side and a Flange connection on the other, allowing for integration with different piping configurations.

What materials are used in the construction of this valve setter?

The body is constructed from ductile iron A536 GR 65-45-12, coated internally and externally with fusion epoxy (AWWA C550) for corrosion resistance, and utilizes stainless steel for bolts and nuts.

What are the maximum operating pressure and temperature limits for this device?

This valve setter has a maximum working pressure of 175 psi (12.1 bar) and an operating temperature range of 32°F to 140°F (0°C to 60°C).

Does the valve setter come with all necessary installation hardware like bolts and gaskets?

No, mechanical joint accessories, flange bolts, and gaskets are generally not included with the valve setter, except for any center joints that might be present. These items must be sourced separately.
