Patented Tri-Link Check modules for lowest pressure loss
Lead Free* construction
Designed for non-health hazard applications
Description

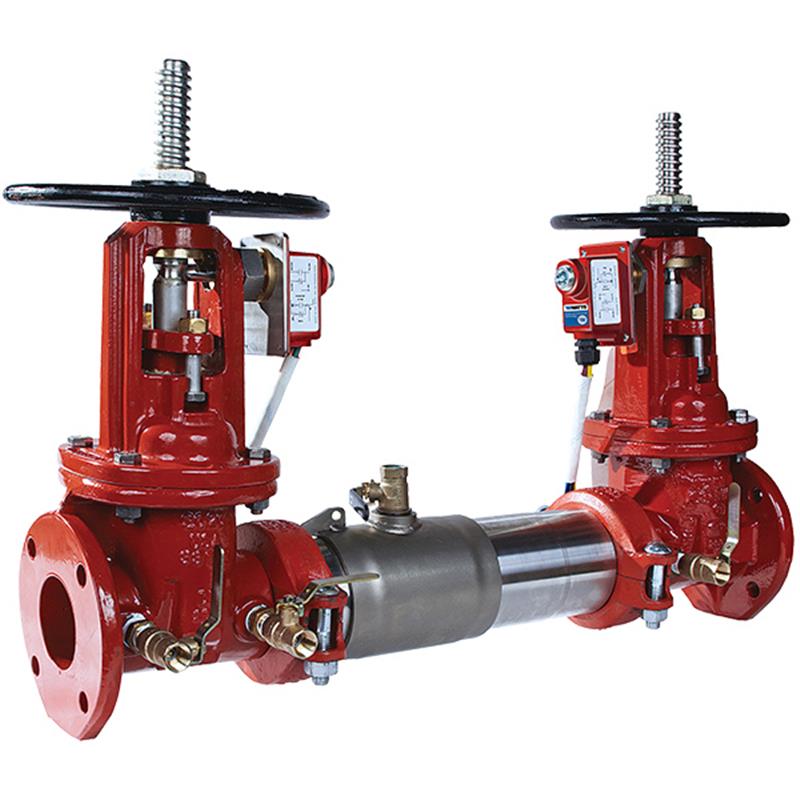

The Ames Colt 6 inch lead-free double check valve backflow preventer assembly, Series C200, C200N, prevents the reverse flow of non-potable water into potable water supplies. This assembly features a 304 stainless steel body, two independently operating Tri-Link check valves for minimal pressure loss, OSY resilient seated gate valves, and an integrated UL Certified supervisory switch. Designed for non-health hazard applications, such as fire sprinkler systems, it offers a compact design, single access sleeve for easy maintenance, and can be installed horizontally or vertically. Approved by UL, FM, ASSE 1015, and AWWA C510-97, it provides reliable protection against backsiphonage and backpressure with a maximum working pressure of 175 psi. Item number 88003105.
Help Me Connect
Installation Flexibility
This assembly is approved for installation in horizontal, vertical, or "N" pattern configurations to suit various pipeline layouts.
Pipeline Connections
The design incorporates groove fittings, allowing for integral pipeline adjustment during installation.
It is intended for connection to potable water supply systems where backflow prevention is required for non-health hazard cross-connections, such as those found in fire sprinkler systems and at service line entrances.
This Colt™ 6 inch lead free double check valve backflow preventer assembly (Series C200, C200N) is designed to prevent the reverse flow of fire protection substances and water of non-potable quality from being pumped or siphoned into the potable water supply due to backsiphonage and/or backpressure. It is ideal for protection at cross-connections identified as non-health hazards, such as on fire sprinkler systems and from other contaminants found at the service line entrance.
This compact modular design features a single housing sleeve access port for easy maintenance and is approved for horizontal or vertical installation. It includes two independently operating Tri-Link Check modules, two OSY (Outside Stem and Yoke) resilient seated gate valves, and four test cocks.
Features
Extremely compact design, 70% lighter than traditional designs
304 (Schedule 40) Stainless steel housing and sleeve for durability
Groove fittings allow integral pipeline adjustment
Patented Tri-Link Check modules provide lowest pressure loss
Unmatched ease of serviceability with removable and serviceable checks without special tools
Includes an integrated UL Certified, Safety Signaling (Control No. 3L38) supervisory switch as an option on each gate valve of the OS&Y model
Available for horizontal, vertical or N pattern installations
Replaceable check disc rubber and reversible elastomer discs
Lead Free* construction to comply with reduced lead content requirements *The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight.
Supervisory Switch: Integrated UL Certified, Safety Signaling (Control No. 3L38)
Maximum Working Pressure: 175 psi (12.1 bar)
Temperature Range: 33°F - 140°F (0.5°C - 60°C)
Lead Content: Wetted surface less than 0.25% by weight
Certificates & Approvals
ASSE 1015
CSA B64.5
AWWA C510-97
UL Classified
FM Approved
NSF/ANSI 61-G Certified
FAQs
What is the primary purpose of this backflow preventer?
This assembly prevents the reverse flow of non-potable water, such as fire protection substances, from entering the potable water supply due to backsiphonage or backpressure.
What applications is this C200-OSY-TS model suitable for?
It is designed for non-health hazard applications, typically used for protection at cross-connections like fire sprinkler systems and at service line entrances to prevent contaminants.
Can this backflow preventer be installed in different orientations?
Yes, this assembly is approved for horizontal, vertical, or "N" pattern installations, allowing flexibility based on plumbing requirements.
What material is the housing of the C200-OSY-TS made from?
The housing and sleeve are constructed from 304 (Schedule 40) stainless steel, providing durability and corrosion resistance.
Does this backflow preventer include a tamper switch?
Yes, the OS&Y model includes an integrated UL Certified, Safety Signaling (Control No. 3L38) supervisory switch on each gate valve, designed to send a tamper signal when the valve is closed or the switch is removed.
