6 C300N-BFG-GPM

Item Number: 0191269
1 1
$12,731.99
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 6 inch
  • Weight: 297.0 lb
  • Body Material: 304 Stainless Steel
  • Valve Type: Grooved Gear Operated Butterfly Valves with Tamper Switch
  • Check Valve: Patented Tri-Link for lowest pressure loss
  • Maximum Operating Pressure: 175 PSI
  • Temperature Range: 33°F - 140°F
  • Approved for N Pattern Installation
  • Includes Gallon per Minute Meter

Description

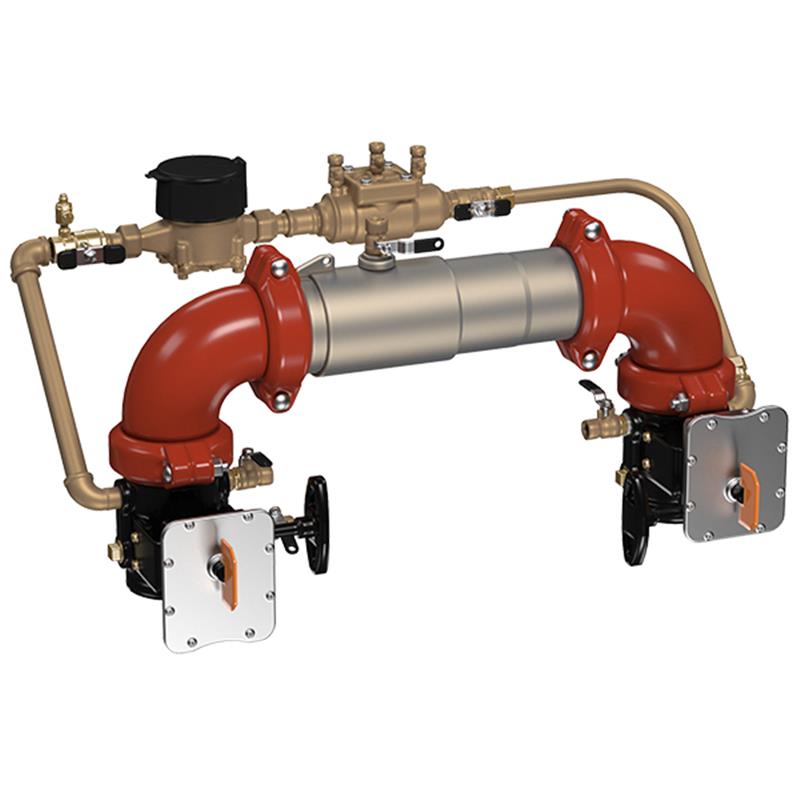

This Colt 6 inch stainless steel double check detector backflow preventer assembly (C300N-BFG) prevents the reverse flow of non-potable water into drinking water supplies. It is ideal for cross-connections in fire sprinkler systems and other non-health hazard applications. Constructed with a compact 304 stainless steel housing for corrosion resistance and durability, it features grooved gear operated butterfly valves with tamper switches and patented Tri-Link checks for minimal pressure loss. An integrated gallon per minute meter allows for monitoring unauthorized water use and leaks. The assembly is rated for 175 PSI maximum working pressure and 33°F to 140°F temperature range.

Help Me Connect

Connections & Installation

  • This assembly features grooved end connections for integral pipeline adjustment and simplified installation.
  • Designed for N pattern horizontal installation, but can also be installed horizontally or vertically up as required by site conditions.
  • Ideal for protecting potable water supplies from cross-connections found in fire sprinkler systems and other non-health hazard applications.
View full details

Additional Details

This Colt™ 6 inch double check detector backflow preventer assembly is designed to prevent the reverse flow of fire protection substances and non-potable water into the potable water supply. It protects drinking water from dangerous cross-connections caused by backsiphonage and backpressure in fire sprinkler systems and other non-health hazard applications.

Features

  • Extremely compact design, allowing for smaller vaults and enclosures
  • 70% lighter than traditional designs for easier installation
  • 304 (Schedule 40) Stainless steel housing & sleeve provides long term corrosion protection and maximum strength
  • Groove fittings allow integral pipeline adjustment
  • Patented Tri-Link Check provides the lowest pressure loss
  • Unmatched ease of serviceability with removable and serviceable check modules
  • Available with grooved gear operated butterfly valve shutoffs with tamper switch
  • May be used for horizontal, vertical, or N pattern installations
  • Replaceable check disc rubber
  • Furnished with a gallon per minute meter to detect underground leaks and unauthorized water use

A WARNING: It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing this product, consult your local water authority, building and plumbing codes.

Specifications

  • Product Type: Double Check Detector Backflow Preventer
  • Series: C300N-BFG
  • Nominal Size: 6 inch
  • Body Material: 304 (Schedule 40) Stainless Steel
  • Housing & Sleeve Material: 304 (Schedule 40) Stainless Steel
  • Elastomers: EPDM, Silicone, Buna 'N'
  • Tri-Link Check Material: Noryl®, Stainless Steel
  • Check Discs: Reversible Elastomer (Silicone or EPDM)
  • Test Cocks: Lead Free* Bronze Body
  • Pins & Fasteners: 300 Series Stainless Steel
  • Springs: Stainless Steel
  • Valve Type: Grooved Gear Operated Butterfly Valves with Tamper Switch
  • Bypass Assembly: Includes meter (registers in gallon or cubic measurement) and double check valve assembly

Performance Data

  • Maximum Working Pressure: 175 PSI (12.1 bar)
  • Temperature Range: 33°F – 140°F (0.5°C – 60°C)

Installation Configurations

  • Horizontal
  • Vertical Up
  • N Pattern Horizontal

Certificates & Approvals

  • Approved by the Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • AWWA C510-97
  • ASSE 1048
  • CSA B64.5
  • UL Classified
  • FM Approved

FAQs

What is the primary function of the Colt C300N-BFG backflow preventer?

Its primary function is to protect potable drinking water supplies by preventing the reverse flow of non-potable water or fire protection substances from cross-connections due to backsiphonage or backpressure.

What materials are used in the construction of this backflow preventer?

The housing and sleeve are made from 304 (Schedule 40) stainless steel. Other components include EPDM, silicone, Buna 'N' elastomers, Noryl® and stainless steel for the Tri-Link checks, and Lead Free* bronze for the test cocks.

Can this backflow preventer be installed in different orientations?

Yes, this assembly is approved for horizontal, vertical up, or N pattern horizontal installations, offering flexibility to suit various site requirements.

What is the maximum operating pressure and temperature range for this unit?

This backflow preventer has a maximum working pressure of 175 PSI (12.1 bar) and an operating temperature range of 33°F to 140°F (0.5°C to 60°C).

Does this model include a water meter?

Yes, this C300N-BFG model comes furnished with a gallon per minute meter within its bypass assembly, which helps detect underground leaks and unauthorized water usage.
