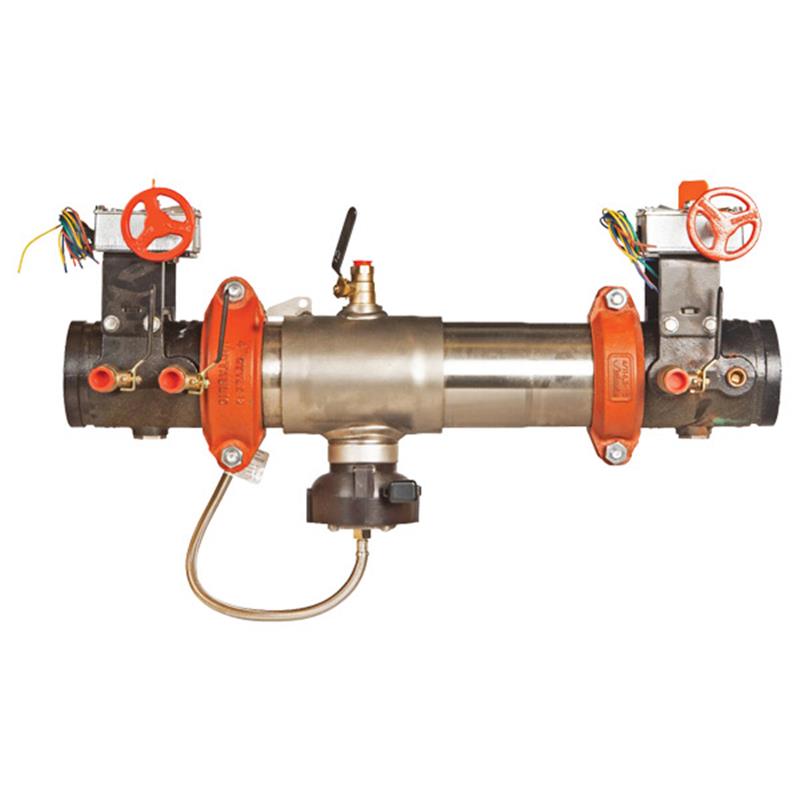

6 C400-BFG-FS

Item Number: F0692866
1 1
$14,806.49
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 6 inch
  • Weight: 140.0 lb
  • Lead Free* construction
  • Body Material: Type 304 (Schedule 40) Stainless Steel
  • Features SentryPlus Alert® flood sensor
  • Grooved gear operated butterfly valves with tamper switch
  • Maximum Working Pressure: 175 PSI
  • Approved for horizontal installation
  • AWWA C511-97, ASSE 1013, CSA B64.4, CULUS, NSF 61-G Approved

Description

The Colt 6 inch lead free reduced pressure zone backflow preventer assembly (F0692866) prevents reverse flow of non-potable water into the potable supply. Constructed with a Type 304 stainless steel body and grooved gear butterfly shutoff valves, it ensures system integrity in continuous pressure piping applications and at health hazard cross-connections. Key features include two independent link check modules, a differential pressure relief valve, and a SentryPlus Alert® flood sensor to detect excessive water discharge. This assembly is approved for horizontal installation, meeting AWWA C511-97, ASSE 1013, CSA B64.4, CULUS, and NSF 61-G standards.

Help Me Connect

This 6 inch reduced pressure zone backflow preventer assembly is designed for installation in horizontal piping configurations. It connects to the system via grooved end connections, which allow for easier installation and pipe alignment. The integrated flood sensor works with an optional add-on connection kit, which offers various communication options including BMS, cellular, or integration with Building Automation Systems (BAS) via RS-485 Modbus or the Nexa® platform through Wi-Fi.

View full details

Additional Details

This Colt™ 6 inch lead free reduced pressure zone backflow preventer assembly is engineered to prevent the reverse flow of fire protection substances and non-potable water into the potable water supply due to backsiphonage or backpressure. It is approved for horizontal installation and ideal for continuous pressure piping applications and at cross-connections identified as health hazards.

The assembly features a SentryPlus Alert® flood sensor to detect excessive water discharge from the relief valve. When paired with an add-on connection kit, the sensor relays alerts for potential flooding events.

Key Components

  • Type 304 (Schedule 40) stainless steel body with a quick access sleeve
  • Two independent torsion spring check modules for ease of serviceability and drip-tight closure
  • Grooved gear operated butterfly valves with tamper switch
  • Bottom mounted pressure relief valve and test cocks
  • Lead Free* bronze body test cocks

Flood Detection & Integration

  • Includes an integrated SentryPlus Alert® flood sensor on the relief valve
  • Add-on sensor connection kit (optional) can extend flood monitoring capabilities, allowing integration with Building Automation Systems (BAS) via RS-485 Modbus or the Nexa® platform through Wi-Fi, or cellular communication.

This product is designed for installation in accordance with the direction of the flow arrow.

Specifications

  • Size: 6 inch
  • Body Material: Type 304 (Schedule 40) Stainless Steel
  • Check Discs: Reversible Silicone or EPDM
  • Elastomers: EPDM, Silicone, Buna 'N'
  • Link Checks: Noryl®, Stainless Steel
  • Test Cocks: Lead Free* Bronze Body
  • Pins & Fasteners: 300 Series Stainless Steel
  • Springs: Stainless Steel
  • Maximum Working Pressure: 175 PSI (12.1 bar)
  • Temperature Range: 33°F - 140°F (0.5°C - 60°C)

Dimensions (Approximate)

  • A Dimension: 36.5 inches (927 mm)
  • C Dimension: 9.5 inches (241 mm)
  • D Dimension: 7.4375 inches (189 mm)
  • P Dimension: 14.25 inches (362 mm)

Weight

  • Weight: 122 lbs (55 kg)

Certificates & Approvals

  • Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California (FCCCHR-USC)
  • AWWA C511-97
  • ASSE 1013
  • CSA B64.4
  • CULUS (FM Approved - BFG & OSY Only)
  • NSF Certified to NSF/ANSI 61-G

FAQs

What is the primary function of the Colt 6 inch C400-BFG-FS backflow preventer?

Its primary function is to prevent the reverse flow of non-potable water, including fire protection substances, into the potable water supply due to backsiphonage or backpressure in continuous pressure piping applications.

What type of connections does this backflow preventer use?

This assembly uses grooved end connections, designed for easy installation and alignment within the piping system.

What materials are used in the construction of this backflow preventer?

The housing and sleeve are made from Type 304 (Schedule 40) stainless steel. Elastomers include EPDM, silicone, and Buna 'N', with Lead Free* bronze body test cocks.

Does this model include a flood sensor?

Yes, this model includes an integrated SentryPlus Alert® flood sensor on the relief valve, which detects excessive water discharge and can relay alerts when paired with an add-on connection kit.

What are the key certifications and approvals for this product?

This backflow preventer is approved by FCCCHR-USC, AWWA C511-97, ASSE 1013, CSA B64.4, CULUS (FM Approved for BFG models), and NSF Certified to NSF/ANSI 61-G.
