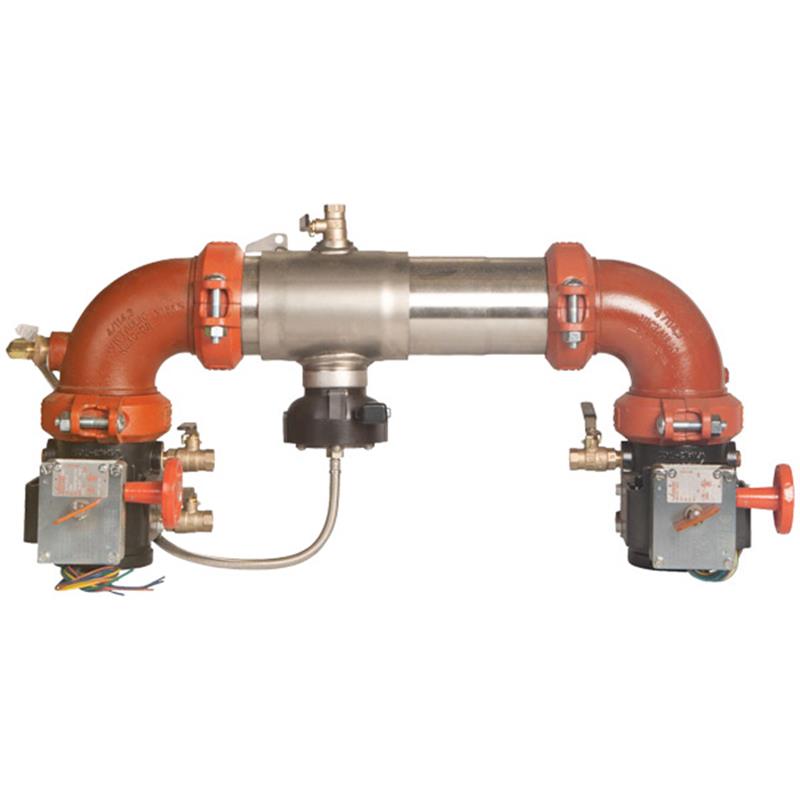

6 C400-DNRS-FS

Item Number: F0425202
1 1
$27,053.78
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • 6 inch Reduced Pressure Zone Backflow Preventer
  • Weight: 308.0 lb
  • Housing & Sleeve: Type 304 (Schedule 40) Stainless Steel
  • Maximum Working Pressure: 175 psi
  • Non-rising stem resilient seated gate valves
  • Integrated flood sensor with SentryPlus Alert® technology
  • Approved for Horizontal Installation
  • AWWA C511-97 Certified
  • CSA B64.4 Certified

Description

This Colt™ 6 inch Reduced Pressure Zone Backflow Preventer Assembly prevents contaminated water from entering the potable water supply due to backpressure or backsiphonage. Constructed with a Type 304 (Schedule 40) stainless steel housing and sleeve, it ensures durability for horizontal installations. Key features include non-rising stem resilient seated gate valves, torsion spring check modules, and an integrated SentryPlus Alert® flood sensor to detect relief valve discharge. It operates up to 175 psi and is approved by ASSE 1013, CSA B64.4, AWWA C511-97, and NSF/ANSI 61-G.

Help Me Connect

This 6 inch Reduced Pressure Zone backflow preventer assembly is designed for horizontal installation. The main body features groove couplings for straightforward connection and alignment within your piping system. It prevents backflow from contaminating the potable water supply. The integrated flood sensor can be expanded with an add-on connection kit (sold separately) to enable remote monitoring and alerts through various communication platforms like BMS, cellular, RS-485 Modbus, or Wi-Fi via the Nexa® platform.

View full details

Additional Details

The Colt™ 6 inch stainless steel reduced pressure zone backflow preventer assembly is designed to prevent the reverse flow of contaminated water from being pumped or siphoned into the potable water supply due to backsiphonage and/or backpressure.

This extremely compact and lighter than traditional designs, this assembly is approved for horizontal installation in accordance with the direction of the flow arrow.

Key Components

  • Features a Type 304 (Schedule 40) stainless steel housing and sleeve for durability and corrosion resistance.
  • Includes two independent Link Check modules, a differential pressure relief valve, and drip tight shutoff valves.
  • Equipped with domestic resilient seated gate valves with non-rising stems and ball valve type test cocks.
  • Check discs are reversible silicone or EPDM for reliable closure.
  • Internal components include Noryl® link checks, 300 Series stainless steel pins and fasteners, and stainless steel springs.

Flood Detection & Monitoring

  • Integrated flood sensor with SentryPlus Alert® technology detects excessive water discharges from the relief valve.
  • An add-on connection kit (not included) allows the sensor to relay alerts for potential flooding events.
  • Connection kit options include BMS, cellular communication, and the Sensor Control Monitor for integration with BAS via RS‑485 Modbus or the Nexa® platform through Wi-Fi.

Features

  • Extremely compact design, lighter than traditional assemblies.
  • Type 304 (Schedule 40) stainless steel housing and sleeve.
  • Groove couplings for easy installation and pipe alignment.
  • Torsion spring check modules for ease of serviceability.
  • Drip tight shutoff valves.
  • Domestic non-rising stem (NRS) gate valves.
  • Corrosive resistant stainless steel bottom mounted pressure relief valve.

Specifications

  • Product Type: Reduced Pressure Zone Backflow Preventer
  • Nominal Size: 6 inch
  • Configuration: Horizontal
  • Housing & Sleeve Material: Type 304 (Schedule 40) Stainless Steel
  • Valve Type: Non-rising stem resilient seated gate valves
  • Check Disc Material: Reversible Silicone or EPDM
  • Elastomers: EPDM, Silicone, Buna 'N'
  • Link Check Material: Noryl®, Stainless Steel
  • Test Cock Material: Lead Free* Bronze Body
  • Pins & Fastener Material: 300 Series Stainless Steel
  • Spring Material: Stainless Steel
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Temperature Range: 33°F - 140°F (0.5°C ~ 60°C)
  • Relief Valve: Corrosive resistant stainless steel bottom mounted

Monitoring & Detection

  • Flood Detection: Integrated SentryPlus Alert® technology flood sensor on relief valve

Certificates & Approvals

  • Approved by Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • AWWA C511-97
  • ASSE 1013
  • CSA B64.4
  • NSF Certified to NSF/ANSI 61-G

FAQs

What is the primary function of the Colt 6 inch Reduced Pressure Zone backflow preventer?

The primary function is to prevent contaminated water from flowing back into the potable water supply system, protecting it from both backsiphonage and backpressure events.

What materials are used in the construction of this backflow preventer?

The housing and sleeve are made from Type 304 (Schedule 40) stainless steel. It also features EPDM, silicone, and Buna 'N' elastomers, Noryl® link checks, and Lead Free* bronze body test cocks.

What is the maximum operating pressure and temperature range for this assembly?

This backflow preventer has a maximum working pressure of 175 psi (12.1 bar) and operates within a temperature range of 33°F to 140°F (0.5°C to 60°C).

Does this backflow preventer include a flood detection system?

Yes, it is equipped with an integrated flood sensor featuring SentryPlus Alert® technology. This sensor detects excessive water discharges from the relief valve, and an optional add-on connection kit can provide remote alerts.

What certifications and approvals does this backflow preventer hold?

This assembly is approved by FCCCHR-USC, AWWA C511-97, ASSE 1013, CSA B64.4, and is NSF Certified to NSF/ANSI 61-G.
