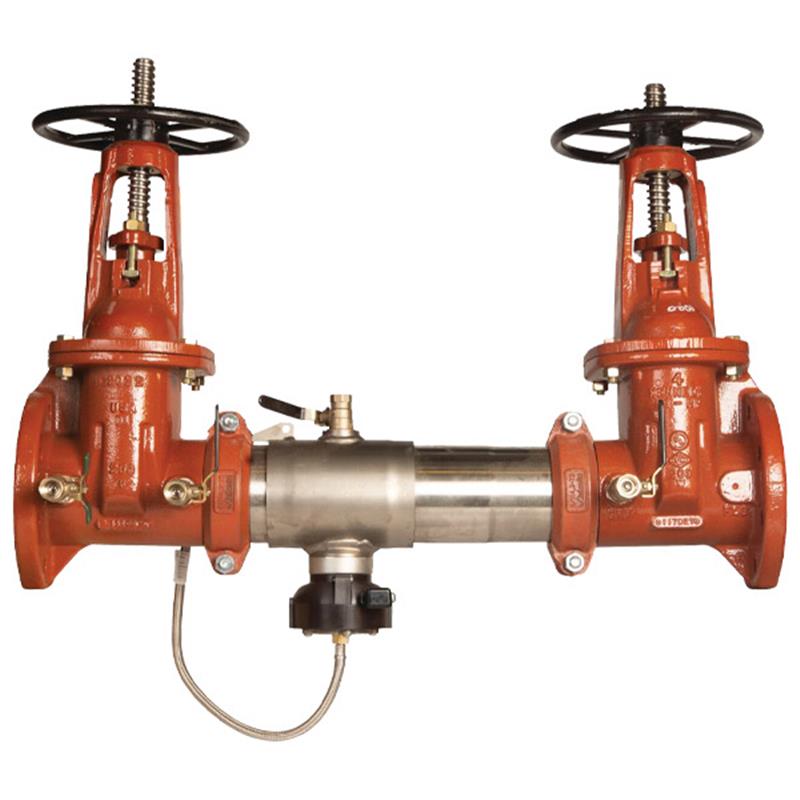

6 C400-DOSY-FS

Item Number: F0206386
1 1
$15,061.00
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Nominal Size: 6 inch
  • Weight: 428.0 lb
  • Housing Material: Type 304 Stainless Steel
  • Valve Type: OSY Resilient Seated Gate Valves
  • Flood Sensor: Integrated SentryPlus Alert®
  • Max Working Pressure: 175 PSI
  • Temperature Range: 33°F - 140°F
  • Compact Design: Up to 70% lighter
  • Approvals: ASSE 1013, UL, FM, NSF/ANSI 61-G

Description

The Colt 6 inch reduced pressure zone backflow preventer assembly (SKU: F0206386) prevents potable water contamination from backsiphonage and backpressure in fire protection and industrial health hazard applications. Constructed from Type 304 stainless steel, it features an integrated SentryPlus Alert® flood sensor to detect relief valve discharge, with activation requiring an add-on connection kit. Its compact, lightweight design (339 lbs) and OSY gate valves simplify installation. Approved for horizontal installation, this unit meets AWWA C511-97, ASSE 1013, UL, FM, and NSF/ANSI 61-G standards.

Help Me Connect

Installation Orientation

  • This assembly is approved for horizontal installation only, ensuring proper flow direction and function.

Pipe Connections

  • Features groove couplings designed for easy and secure installation, allowing for integral pipeline adjustment and alignment with existing piping.

Flood Sensor Connectivity

  • The integrated SentryPlus Alert® flood sensor requires an add-on sensor connection kit (sold separately) to become active and relay alerts.
  • Connection kit options facilitate integration with various systems:
    • Building Management Systems (BMS)
    • Cellular communication
    • Sensor Control Monitor for integration with BAS via RS-485 Modbus or the Nexa® platform via Wi-Fi.
View full details

Additional Details

The Colt 6 inch reduced pressure zone backflow preventer assembly is designed to protect potable water systems from contamination due to backsiphonage or backpressure, ideal for health hazard applications in fire protection and industrial settings.

This assembly incorporates a SentryPlus Alert® flood sensor to detect and signal excessive water discharge from the relief valve, helping to prevent potential flooding when paired with an add-on connection kit.

Construction & Features

  • Extremely compact design, up to 70% lighter than traditional backflow preventers
  • Constructed with a Type 304 (Schedule 40) stainless steel housing and sleeve
  • Includes two independent Link Check modules and a differential pressure relief valve
  • Equipped with domestic outside stem and yoke (OSY) resilient seated gate valves and required test cocks
  • Groove couplings for easy installation and integral pipeline adjustment
  • Patented link check design ensures lowest pressure loss and ease of serviceability
  • Reversible elastomer check discs for longevity
  • Approved for horizontal installation

Flood Detection System

  • Integrated SentryPlus Alert® flood sensor detects continuous discharge from the relief valve
  • Activation requires an add-on sensor connection kit (sold separately)
  • Connection kit options support integration with building management systems (BMS), cellular communication, or the Sensor Control Monitor for BAS via RS-485 Modbus or Nexa® platform via Wi-Fi

NOTICE: An add-on connection kit is required to activate the flood sensor. Without the connection kit, the flood sensor is a passive component and will not communicate with any other device.

Specifications

  • Product Type: Reduced Pressure Zone (RPZ) Backflow Preventer
  • Nominal Size: 6 inch
  • Housing & Sleeve Material: Type 304 (Schedule 40) Stainless Steel
  • Valve Type: Domestic Outside Stem and Yoke (OSY) Resilient Seated Gate Valves
  • Elastomer Materials: EPDM, Silicone, Buna 'N'
  • Link Check Materials: Noryl®, Stainless Steel
  • Check Disc Materials: Reversible Silicone or EPDM
  • Test Cock Material: Lead Free* Bronze Body
  • Pins & Fastener Material: 300 Series Stainless Steel
  • Spring Material: Stainless Steel
  • Configuration: Horizontal
  • Temperature Range: 33°F - 140°F (0.5°C - 60°C)
  • Maximum Working Pressure: 175 PSI (12.1 bar)
  • Flood Sensor: Integrated SentryPlus Alert® on relief valve
  • Approximate Weight (OSY Model): 339 lbs (154 kg)

Certifications & Approvals

  • Approved by Foundation for Cross-Connection Connection Control and Hydraulic Research at USC
  • AWWA C511-97
  • ASSE 1013
  • CSA B64.4
  • UL Classified
  • FM Approved
  • NSF/ANSI 61-G Certified (wetted surface contains less than 0.25% lead by weight)

FAQs

What is the primary purpose of this backflow preventer?

This Colt 6 inch reduced pressure zone backflow preventer assembly is designed to protect potable water systems from contamination by preventing reverse flow (backsiphonage and backpressure) of non-potable substances, especially in fire protection and health hazard applications.

What material is the housing and sleeve made from?

The housing and sleeve of this backflow preventer are constructed from durable Type 304 (Schedule 40) stainless steel, ensuring longevity and resistance to corrosion.

How does the SentryPlus Alert® flood sensor work?

The integrated SentryPlus Alert® flood sensor detects excessive water discharges from the relief valve. To activate the sensor and receive alerts for potential flooding, an add-on sensor connection kit (sold separately) is required.

What is the maximum operating pressure and temperature range for this unit?

This backflow preventer has a maximum working pressure of 175 PSI (12.1 bar) and operates effectively within a temperature range of 33°F to 140°F (0.5°C to 60°C).

What type of shutoff valves are included with this assembly?

This assembly includes domestic outside stem and yoke (OSY) resilient seated gate valves, which are UL Classified and FM Approved, and feature an integrated supervisory switch option.
