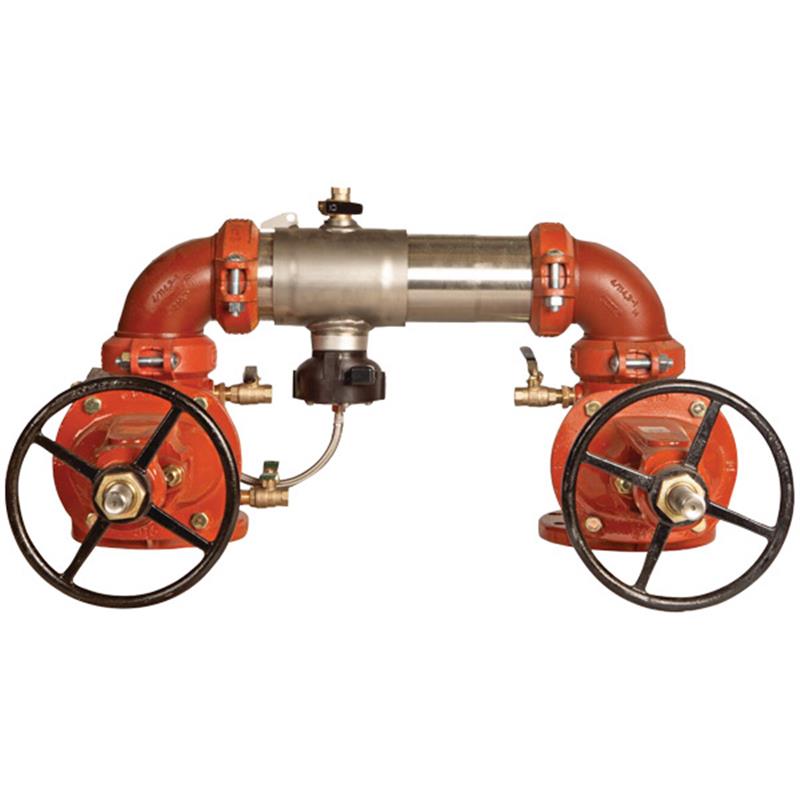

6 C400N-OSY-FS

Item Number: F0191279
1 1
$14,346.71
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 6 inch
  • Weight: 510.0 lb
  • Housing Material: Type 304 Stainless Steel
  • Maximum Working Pressure: 175 PSI
  • Temperature Range: 33°F to 140°F
  • Lead Free* Construction
  • OS&Y Shutoff Valves with Integrated Supervisory Switch
  • Flood Sensor with SentryPlus Alert® Technology
  • Connection Type: Grooved Ends

Description

The Colt 6 inch C400N-OSY-FS Reduced Pressure Zone Backflow Preventer Assembly is designed to protect potable water systems from contamination. This lead-free unit features a durable Type 304 stainless steel housing, resilient seated OS&Y gate valves with an integrated supervisory switch, and grooved end connections for ease of installation. It includes a SentryPlus Alert® flood sensor to detect excessive relief valve discharge, which relays alerts when paired with an add-on connection kit (sold separately). Rated for 175 PSI and temperatures from 33°F to 140°F, it is approved for horizontal N-pattern health hazard installations.

Help Me Connect

Installation & Connections

  • This assembly is approved for horizontal N pattern installation, provided it is installed strictly in accordance with the direction of the flow arrow.
  • The unit features groove couplings on both the inlet and outlet, designed for easy installation and integral pipeline adjustment with compatible grooved piping systems.

Flood Sensor Activation

An add-on sensor connection kit (sold separately) is required to activate the flood sensor's alert capabilities. Without this kit, the flood sensor operates as a passive component and will not communicate with other devices. Connection kit options include BMS, cellular communication, or the Sensor Control Monitor for integration with BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi.

View full details

Additional Details

This Colt 6 inch lead free reduced pressure zone backflow preventer assembly is engineered to protect potable water systems from contamination caused by backsiphonage and backpressure. It is ideal for continuous pressure piping applications and at cross-connections identified as health hazards.

Construction & Features

  • Features an extremely compact design that is 70% lighter than traditional models, allowing for smaller enclosures.
  • Constructed with a durable Type 304 (Schedule 40) stainless steel housing and sleeve for long-lasting performance.
  • Equipped with resilient seated gate valves with outside stem and yoke (OS&Y), which include an integrated supervisory switch.
  • Utilizes groove couplings for easy installation and integral pipeline adjustment.
  • Incorporates torsion spring check modules and a patented link check design for lowest pressure loss and unmatched ease of serviceability.
  • Includes replaceable check disc rubber and drip tight shutoff valves.
  • A flood sensor with SentryPlus Alert® technology detects excessive water discharges from the relief valve.
  • The flood alert feature is activated with an add-on sensor connection kit (sold separately) to relay alerts for potential flooding events.

Materials

  • Housing & Sleeve: Type 304 (Schedule 40) stainless steel
  • Elastomers: EPDM, silicone, and Buna 'N'
  • Link Checks: Noryl®, stainless steel
  • Check Discs: Reversible silicone or EPDM
  • Test Cocks: Lead Free* bronze body
  • Pins & Fasteners: 300 Series stainless steel
  • Springs: Stainless steel

NOTICE: An add-on connection kit is required to activate the flood sensor. Without the connection kit, the flood sensor is a passive component and will not communicate with any other device. Watts® is not responsible for the failure of alerts due to connectivity issues, power outages, or improper installation.

Specifications

  • Size: 6 inch
  • Configuration: Horizontal N-Pattern
  • Lead Free*: Yes (wetted surface less than 0.25% lead by weight)

Performance

  • Temperature Range: 33°F - 140°F (0.5°C - 60°C)
  • Maximum Working Pressure: 175 PSI (12.1 bar)

Certificates & Approvals

  • Approved by: Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • AWWA: C511-97
  • ASSE: 1013
  • CSA: B64.4
  • UL Classified: Yes (BFG & OSY Only)
  • FM Approved: Yes (BFG & OSY Only)
  • NSF: Certified to NSF/ANSI 61-G

Dimensions (Approximate)

  • Length (A): 43 1/2 in (1105 mm)
  • Height (C OSY): 30 1/8 in (765 mm)
  • Width (D): 16 in (406 mm)
  • Inlet/Outlet Center to Center (H): 44 3/4 in (1137 mm)
  • Weight (OSY): 339 lb (154 kg)

FAQs

What is the primary function of this backflow preventer?

This backflow preventer assembly is designed to prevent the reverse flow of non-potable water or substances from being siphoned or pumped into the potable water supply, protecting against contamination from backsiphonage and backpressure.

What materials are used for the main components?

The housing and sleeve are constructed from Type 304 (Schedule 40) stainless steel. Elastomers include EPDM, silicone, and Buna 'N'. Test cocks are made from Lead Free* bronze body.

Does this model include a flood sensor?

Yes, this model includes a flood sensor with SentryPlus Alert® technology to detect excessive water discharge from the relief valve. An add-on connection kit (sold separately) is required to activate its alert communication features.

What are the installation requirements for this assembly?

This backflow preventer is approved for horizontal N-pattern installation. It features groove couplings for easy installation and pipeline alignment. Ensure installation is in accordance with the direction of the flow arrow and local plumbing codes.

What are the maximum operating pressure and temperature limits?

This assembly is rated for a maximum working pressure of 175 PSI (12.1 bar) and can operate within a temperature range of 33°F to 140°F (0.5°C to 60°C).
