6 C400Z-BFG-FS

Item Number: F0191483
1 1
$16,064.25
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • 6 inch Reduced Pressure Zone Backflow Preventer
  • Weight: 200.0 lb
  • Lead Free Construction
  • Z-Pattern Horizontal Installation
  • Flood Sensor with SentryPlus Alert® Technology
  • Grooved Gear Operated Butterfly Shutoff Valves with Tamper Switch
  • Type 304 Stainless Steel Housing and Sleeve
  • Maximum Working Pressure: 175 psi
  • Extremely Compact Design

Description

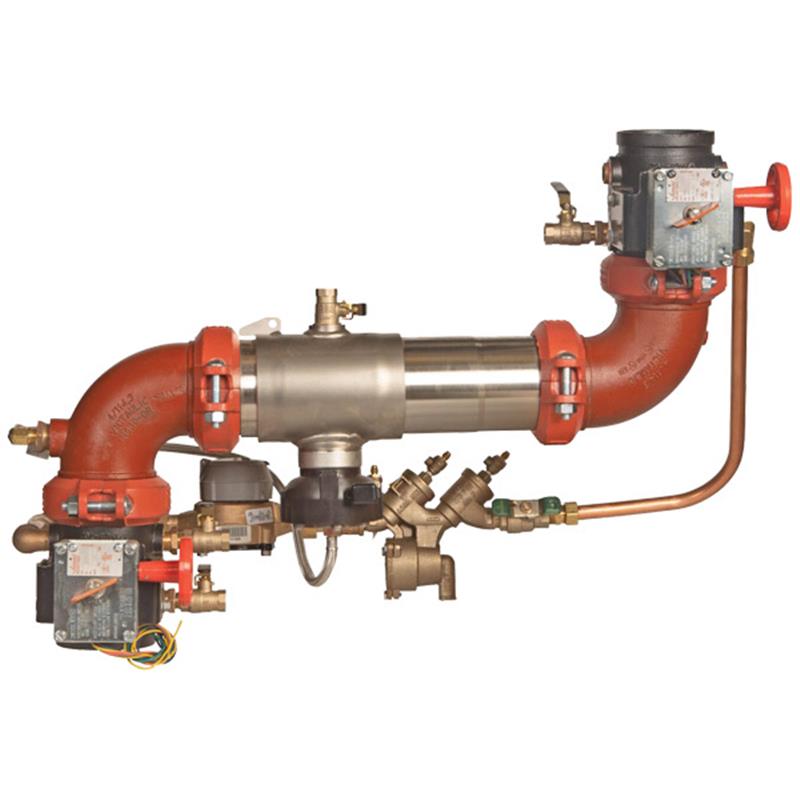

The Ames Fire & Waterworks Colt 6 inch C400Z-BFG-FS is a lead-free reduced pressure zone (RPZ) backflow preventer designed to protect potable water systems from contamination due to backsiphonage or backpressure. Ideal for health hazard cross-connections and continuous pressure applications, it features a durable Type 304 stainless steel housing and grooved gear operated butterfly valves. This assembly includes an integrated flood sensor with SentryPlus Alert® technology to detect relief valve discharge, with options for connection to BMS, cellular, or Wi-Fi alert systems (requires add-on kit). It supports horizontal Z-pattern installation and is ASSE, UL, FM, and NSF approved. Item number F0191483.

Help Me Connect

Connections

  • This backflow preventer features groove fittings for both inlet and outlet connections, which simplify installation and allow for integral pipeline adjustment.

Flood Sensor Connectivity

The integrated flood sensor with SentryPlus Alert® technology is a passive component until an add-on connection kit is utilized. Activating the sensor for alert relays requires one of the following connection kit options:

  • BMS (Building Management System) communication
  • Cellular communication for remote alerts
  • Sensor Control Monitor for integration with BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi.
View full details

Additional Details

The Ames Fire & Waterworks Colt™ 6 inch reduced pressure zone (RPZ) backflow preventer assembly is designed to prevent the reverse flow of fire protection substances and non-potable water into the potable water supply due to backsiphonage or backpressure. This lead-free assembly is suitable for health hazard applications and continuous pressure piping, approved for horizontal Z-pattern installation.

This C400Z-BFG-FS model integrates a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve. When an add-on connection kit is used, the sensor activates to relay alerts, notifying personnel of potential flooding events.

Key Components

  • Stainless steel body with quick access sleeve for durability.
  • Two independent Link Check modules and a bottom-mounted differential pressure relief valve.
  • Grooved gear operated butterfly valves with tamper switches for shutoff.
  • Lead-Free* test cocks for easy maintenance.

Features & Benefits

  • Lead Free* construction, with wetted surfaces containing less than 0.25% lead by weight.
  • Includes a flood sensor with SentryPlus Alert® technology for discharge detection.
  • Allows for integration with BMS, cellular communication, or Sensor Control Monitor (requires add-on kit).
  • Extremely compact design, up to 70% lighter than traditional models.
  • Durable Type 304 (Schedule 40) stainless steel housing and sleeve.
  • Groove fittings for integral pipeline adjustment and ease of installation.
  • Patented link check design for lowest pressure loss.
  • Unmatched ease of serviceability with torsion spring check modules and reversible check disc rubber.
  • Configurable for horizontal Z-pattern installation.
Note: An add-on connection kit is required to activate the flood sensor. Without the connection kit, the flood sensor is a passive component and will not communicate with any other device.

Specifications

  • Brand: Ames Fire & Waterworks
  • Product Type: Reduced Pressure Zone (RPZ) Backflow Preventer
  • Model: C400Z-BFG-FS
  • SKU: F0191483
  • Size: 6 inch

Performance

  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Temperature Range: 33°F - 140°F (0.5°C - 60°C)

Materials

  • Housing & Sleeve: Type 304 (Schedule 40) Stainless Steel
  • Elastomers: EPDM, Silicone, Buna 'N'
  • Link Checks: Noryl®, Stainless Steel
  • Check Discs: Reversible Silicone or EPDM
  • Test Cocks: Lead Free* Bronze Body
  • Pins & Fasteners: 300 Series Stainless Steel
  • Springs: Stainless Steel
  • Lead Content: Wetted surface contains less than 0.25% of lead by weight

Configuration & Connections

  • Installation Pattern: Z-Pattern Horizontal
  • Shutoff Valves: Grooved Gear Operated Butterfly Valves with Tamper Switch
  • Inlet/Outlet Connections: Grooved

Dimensions (6 inch C400NBFG, C400ZBFG)

  • Overall Length (A): 35 1/4 inches (895 mm)
  • Width (G): 35 1/4 inches (895 mm)
  • Height (H): 20 1/2 inches (521 mm)
  • Centerline to Bottom (J): 13 1/2 inches (343 mm)
  • Centerline to Top (M): 27 1/4 inches (692 mm)
  • Depth (P): 15 inches (382 mm)

Weight

  • Unit Weight: 160 lbs (73 kg)

Certifications & Approvals

  • ASSE: 1013
  • AWWA: C511-97
  • FCCCHR-USC (Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California)
  • UL Classified
  • FM Approved
  • NSF: B64.4, Certified to NSF/ANSI 61-G

FAQs

What is the primary purpose of this 6 inch reduced pressure zone (RPZ) backflow preventer?

This RPZ backflow preventer is designed to prevent the reverse flow of contaminated or non-potable water into the potable water supply, protecting against both backsiphonage and backpressure. It is used in health hazard and continuous pressure piping applications.

Does this backflow preventer include a flood sensor?

Yes, this assembly features an integrated flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve.

Is an additional component required for the flood sensor to send alerts?

Yes, an add-on connection kit is required to activate the flood sensor's alert relay capabilities. Without this kit, the flood sensor acts as a passive detection component only.

What types of connection options are available for the flood sensor alerts?

When paired with an add-on connection kit, the flood sensor can integrate with Building Management Systems (BMS), cellular communication, or a Sensor Control Monitor for BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi.

What does "Lead Free" construction mean for this product?

"Lead Free" construction indicates that the wetted surfaces of this product, which come into contact with consumable water, contain less than 0.25% of lead by weight, complying with national plumbing codes.
