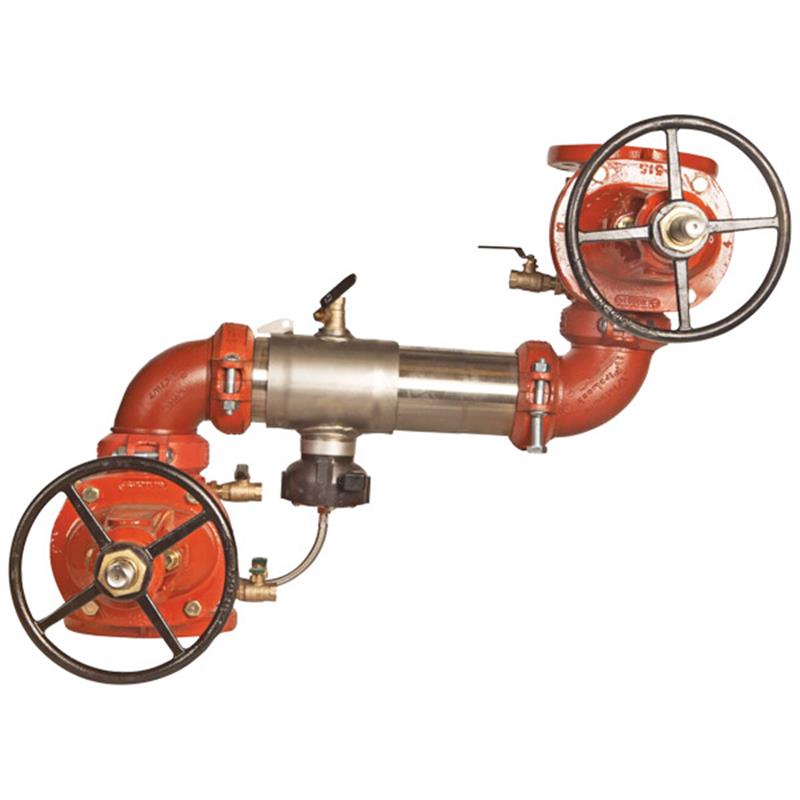

6 C400Z-OSY-FS

Item Number: F0191285
1 1
$14,346.71
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 6 inch
  • Weight: 449.0 lb
  • Lead Free* construction
  • Flood Sensor with SentryPlus Alert® technology
  • Housing & Sleeve Material: Type 304 Stainless Steel
  • Maximum Working Pressure: 175 psi
  • Configuration: Z-Pattern Horizontal
  • Shutoff Valves: OSY Resilient Seated Gate
  • Approved: ASSE 1013, AWWA C511-97, CSA B64.4, UL, FM, NSF

Description

This Ames Colt 6 inch lead-free reduced pressure zone backflow preventer assembly (C400Z-OSY-FS) protects potable water systems from contamination due to backsiphonage or backpressure, ideal for health hazard applications and continuous pressure piping. It features durable Type 304 stainless steel construction, Z-pattern horizontal installation, and OSY resilient seated gate valves. An integrated flood sensor with SentryPlus Alert® technology detects relief valve discharge, with optional add-on kits for remote notification via BMS, cellular, or Wi-Fi. It is approved by ASSE, AWWA, CSA, UL, FM, and NSF. Item number F0191285.

Help Me Connect

Installation and Connectivity

  • This assembly is designed for horizontal Z-pattern installation.
  • Groove couplings are provided for easy installation and integral pipeline adjustment, ensuring a secure fit.
  • The integrated flood sensor requires an add-on sensor connection kit (sold separately) to activate its alert capabilities. This kit allows for integration with building management systems (BMS), cellular communication, or the Nexa® platform via Wi-4i or RS-485 Modbus.
  • Without the specific connection kit, the flood sensor acts as a passive component and does not communicate alerts.
View full details

Additional Details

The Ames Colt™ 6 inch lead free reduced pressure zone backflow preventer assembly is designed to prevent the reverse flow of fire protection substances and non-potable water into the potable water supply due to backsiphonage or backpressure.

This assembly is ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards, featuring a Z-pattern installation configuration and resilient seated OSY shutoff valves.

Flood Detection & Alerting

  • Includes a flood sensor with SentryPlus Alert® technology to detect continuous discharge from the relief valve.
  • An add-on connection kit (sold separately) is required to activate the sensor and enable multichannel alerts (call, email, text).
  • Connection kit options include BMS, cellular communication, and the Sensor Control Monitor which enables integration with BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi.
  • Without the connection kit, the flood sensor is a passive component and will not communicate with any other device. Proper drainage must be provided in the event of a discharge. Watts® is not responsible for alert failures due to connectivity issues, power outages, or improper installation.

Construction & Features

  • Constructed with a Type 304 (Schedule 40) stainless steel housing and sleeve for superior durability.
  • Features torsion spring check modules for unmatched ease of serviceability and lowest pressure loss.
  • Extremely compact design, up to 70% lighter than traditional designs.
  • Groove couplings allow for easy installation and integral pipeline adjustment.
  • Includes two independent Link Check modules, a differential pressure relief valve, and required test cocks.
  • All wetted surfaces contacting consumable water contain less than 0.25% lead by weight, complying with Lead Free* installation requirements.

Specifications

  • Series: C400
  • Size: 6 inch
  • Configuration: Z-Pattern Horizontal
  • Shutoff Valves: Outside Stem and Yoke (OSY) Resilient Seated Gate Valves
  • Housing & Sleeve Material: Type 304 (Schedule 40) Stainless Steel
  • Elastomers: EPDM, Silicone, Buna 'N'
  • Link Checks Material: Noryl®, Stainless Steel
  • Check Discs Material: Reversible Silicone or EPDM
  • Test Cocks Material: Lead Free* Bronze Body
  • Pins & Fasteners Material: 300 Series Stainless Steel
  • Springs Material: Stainless Steel
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Temperature Range: 33°F - 140°F (0.5°C - 60°C)

Certificates & Approvals

  • ASSE 1013
  • AWWA C511-97
  • CSA B64.4
  • UL Classified (BFG & OSY Only)
  • FM Approved (BFG & OSY Only)
  • NSF Certified to NSF/ANSI 61-G
  • Foundation for Cross-Connection Control and Hydraulic Research (FCCCHR-USC) (Excluding 6" Z-pattern configuration)

FAQs

What does "Lead Free*" mean for this backflow preventer?

"Lead Free*" indicates that the wetted surfaces of this product that come into contact with consumable water contain less than 0.25% of lead by weight, complying with Lead Free installation requirements.

How does the integrated flood sensor work?

The integrated flood sensor with SentryPlus Alert® technology detects excessive water discharges from the relief valve. To activate its alert notification features (call, email, text), an add-on sensor connection kit (sold separately) is required.

What type of shutoff valves are included with this assembly?

This assembly features outside stem and yoke (OSY) resilient seated gate valves, which are UL Classified and FM Approved for shutoff purposes.

What are the installation requirements for this C400Z-OSY-FS model?

This specific model is approved for horizontal Z-pattern installation. It is crucial to install the assembly in accordance with the direction of the flow arrow and local plumbing codes.

What is the maximum operating pressure and temperature range for this backflow preventer?

This backflow preventer has a maximum working pressure of 175 psi (12.1 bar) and an operating temperature range of 33°F to 140°F (0.5°C to 60°C).
