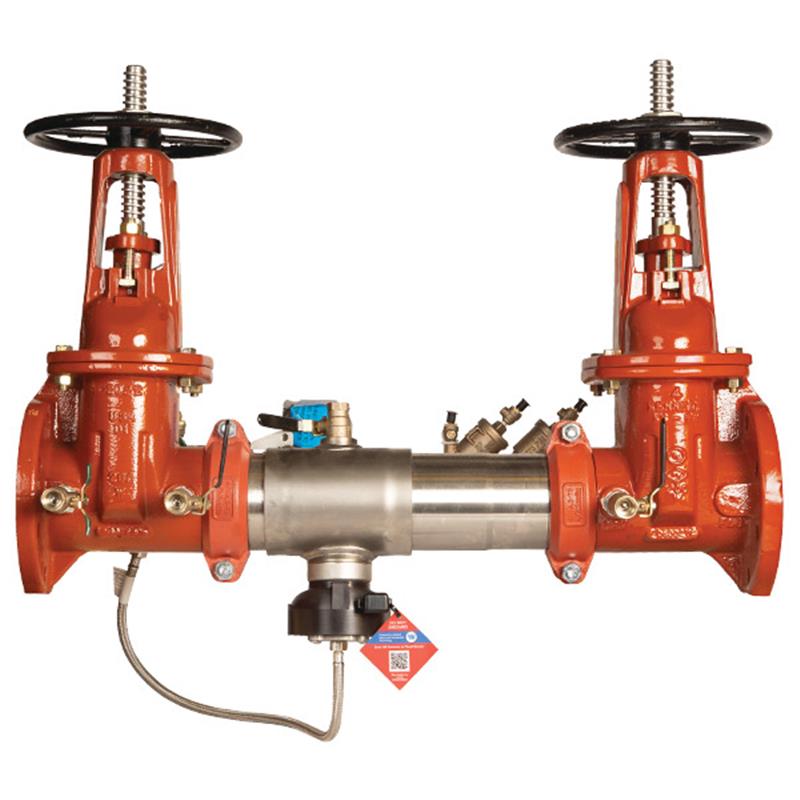

6 C500N-DOSY-C-FS

Item Number: F0206418
1 1
$18,291.65
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 6 inch
  • Weight: 463.0 lb
  • Installation: Horizontal N Pattern
  • Housing Material: 304 Stainless Steel
  • Valve Type: Domestic OSY Resilient Seated Gate Valves
  • Maximum Working Pressure: 175 PSI
  • Flood Sensor with SentryPlus Alert Technology
  • Cubic Feet Per Minute Meter Included
  • Approved by AWWA C511-97, UL, FM, and CSA B64.4

Description

The 6 inch Colt C500N-DOSY-C-FS Reduced Pressure Detector Backflow Preventer Assembly protects potable water supplies from dangerous cross-connections in fire protection, irrigation, or industrial systems. It prevents backflow from backsiphonage and backpressure. This compact, horizontally installed assembly features a 304 stainless steel body, domestic OSY resilient seated gate valves, and groove couplings. An integrated flood sensor with SentryPlus Alert technology detects excessive water discharges from the relief valve, with alerts activated via an add-on connection kit. A cubic feet per minute meter monitors for leaks and unauthorized water use. Rated for 175 PSI, it is approved by AWWA C511-97, UL, FM, and CSA B64.4.

Help Me Connect

Installation

This 6 inch Reduced Pressure Detector Assembly is designed for horizontal N pattern installation and connects to pipelines using groove couplings for easy alignment.

Flood Sensor Connectivity

The integrated flood sensor requires an add-on connection kit to activate its alert capabilities. Without this kit, the sensor operates as a passive component and will not communicate with external devices. Connection kit options include:

  • Building Management System (BMS) integration
  • Cellular communication
  • Sensor Control Monitor for integration with BAS via RS-485 Modbus or Nexa® platform through Wi-Fi
View full details

Additional Details

The 6 inch Colt Reduced Pressure Detector Backflow Preventer Assembly is designed to prevent the reverse flow of fire protection substances and non-potable water into the potable water supply, protecting against both backsiphonage and backpressure.

This assembly monitors for unauthorized water use and features an integrated flood sensor to detect excessive water discharges.

Features

  • Compact modular design, approximately 70% lighter than traditional models
  • 304 (Schedule 40) stainless steel housing and sleeve
  • Groove fittings for integral pipeline adjustment and easy installation
  • Patented link check for lowest pressure loss
  • Unmatched ease of serviceability with replaceable check disc rubber
  • Domestic OSY resilient seated gate valves with integrated supervisory switch option
  • Bottom-mounted cast stainless steel relief valve
  • Cubic feet per minute meter for detecting leakage or unauthorized water use from the fire sprinkler system
  • Integrated flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve
  • Flood alert feature activated by an add-on sensor connection kit for relaying alerts
  • Approved for horizontal N pattern installation

WARNING: It is illegal to use this product in a plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Always consult your local water authority, building, and plumbing codes before installing this product.

Specifications

General

  • Product Type: Reduced Pressure Detector Assembly
  • Size: 6 inch
  • Installation: Horizontal N Pattern
  • Connection Type: Groove Couplings
  • Maximum Working Pressure: 175 PSI (12.1 bar)
  • Temperature Range: 33°F - 140°F (0.6°C - 60°C)

Materials

  • Housing & Sleeve: 304 (Schedule 40) Stainless Steel
  • Elastomers: EPDM, Silicone, Buna 'N'
  • Link Checks: Noryl®, Stainless Steel
  • Check Discs: Reversible Silicone or EPDM
  • Test Cocks: Lead Free* Bronze Body
  • PCs & Fasteners: 300 Series Stainless Steel
  • Springs: Stainless Steel

Certificates & Approvals

  • Approved by FCCCHR - USC (excluding 6" 'Z' and 10" 'N' and 'Z' configurations)
  • AWWA C511-97
  • UL Classified - US
  • CSA B64.4
  • FM Approved

FAQs

What is the primary purpose of the 6 inch Colt C500N-DOSY-C-FS Reduced Pressure Detector Backflow Preventer Assembly?

This assembly is designed to protect potable water supplies from contamination by preventing the reverse flow of non-potable water and fire protection substances, safeguarding against both backsiphonage and backpressure in fire lines, irrigation, or industrial processing applications.

What type of installation is required for this backflow preventer?

The Colt C500N-DOSY-C-FS backflow preventer is approved for horizontal N pattern installation only.

How does the integrated flood sensor function, and what is required to activate its alert features?

The flood sensor uses SentryPlus Alert technology to detect excessive water discharges from the relief valve. To activate its alert capabilities and allow it to communicate with other devices, an add-on connection kit (sold separately) is required.

What are the main materials used in the construction of this assembly?

The housing and sleeve are made from 304 (Schedule 40) stainless steel, while the elastomers are EPDM, silicone, and Buna 'N'. The relief valve is bottom-mounted cast stainless steel.

What is the maximum operating pressure and temperature range for this backflow preventer?

This assembly has a maximum operating pressure of 175 PSI (12.1 bar) and is designed to operate within a temperature range of 33°F to 140°F (0.6°C to 60°C).
