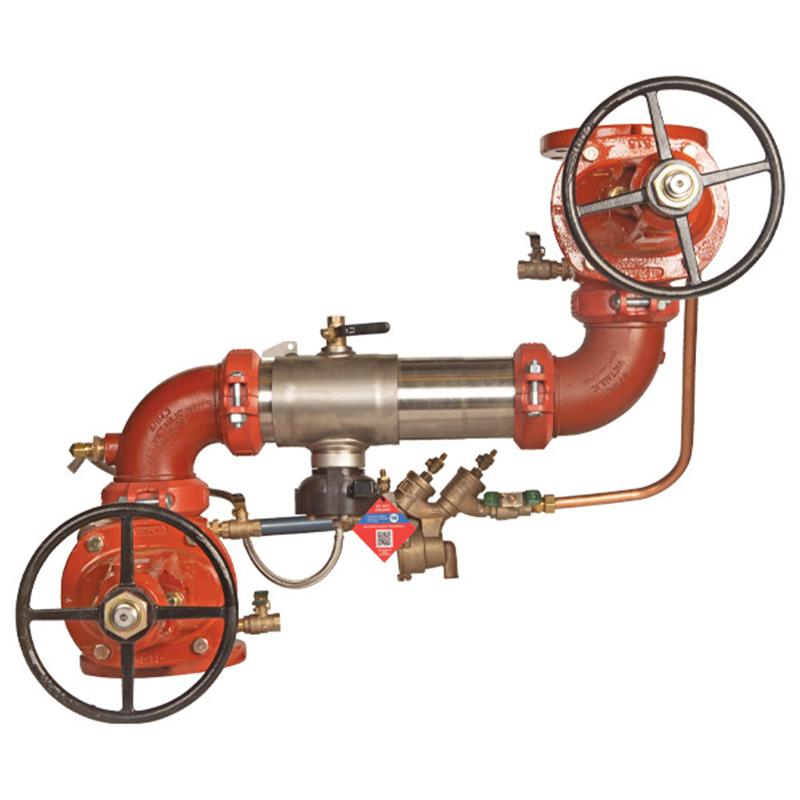

The Colt™ 6 inch Series C500 Reduced Pressure Detector Backflow Preventer Assembly is designed to prevent the reverse flow of fire protection substances and non-potable water into the potable water supply due to backsiphonage or backpressure. This assembly is ideal for protecting cross-connections identified as health hazards, such as on fire sprinkler systems and at service line entrances, in a horizontal Z pattern installation.

The compact modular design features a durable 304 (Schedule 40) stainless steel body with a quick-access sleeve, torsion spring check valves, outside stem and yoke (OSY) resilient seated gate valves, and a corrosive-resistant bottom-mounted cast stainless steel relief valve. This specific model includes a flood sensor with SentryPlus Alert® technology to detect continuous water discharges from the relief valve.

Flood Detection & Monitoring

• Includes a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve.
• Requires an add-on sensor connection kit to activate the flood sensor and enable alerts.
• Activated sensor can relay alerts for potential flooding events via BMS, cellular communication, or the Sensor Control Monitor (integrates with BAS via RS-485 Modbus or Nexa® platform through Wi-Fi).

Connections & Operation

• Features groove couplings for easy installation and pipeline alignment.
• Integrated supervisory switch is an option on each gate valve of the OS&Y model.
• Patented link check design ensures the lowest pressure loss.
• Unmatched ease of serviceability with reversible elastomer discs and replaceable check disc rubber.

A WARNING: It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing this product, consult your local water authority, building and plumbing codes.
