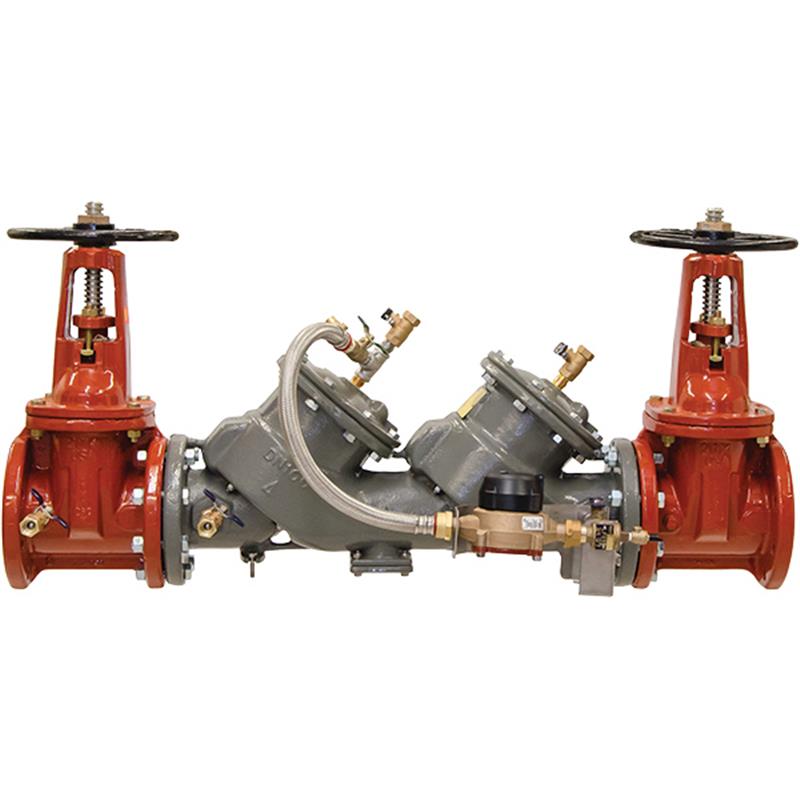

6 LF856-DOSY-GPM

Item Number: 0124449
1 1
$16,768.53
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Backflow Size: 6 inch
  • Weight: 502.0 lb
  • Max. Working Pressure: 175 psi
  • Lead Content: Less than 0.25% by weight
  • Body Material: Ductile iron Grade 65-45-12
  • Corrosion Protection: ArmorTek epoxy coating
  • GPM meter detects unauthorized water use or leaks
  • In-line serviceable assembly for easy maintenance
  • Approvals: ASSE 1048, UL Classified, FM Approved

Description

The 6 inch FEBCO LF856 MasterSeries® double check detector backflow preventer assembly protects drinking water from non-health hazard cross-connections. Featuring a ductile iron body with patented ArmorTek® epoxy coating, it resists microbial-induced and electrochemical corrosion. This lead-free assembly includes domestic OSY gate valves and a GPM meter for detecting unauthorized water use or leaks, making it ideal for fire sprinkler and standpipe systems. It is ASSE 1048, UL, and FM Approved, ensuring reliable performance up to 175 psi. Item number 0124449.

Help Me Connect

Installation and Connection

This FEBCO MasterSeries® LF856 Double Check Detector Assembly is designed for installation on the potable water supply at any point of cross-connection that requires protection against possible backpressure and backsiphonage for non-health hazard (pollutant) applications. It is particularly suitable for use on fire sprinkler and standpipe systems where detection of unauthorized water usage is required.

  • Inlet/Outlet Connections: The assembly is fitted with UL Classified/FM Approved resilient seated shutoff valves (OS&Y type) that are compliant to ASME B16.1 Class 125 and AWWA Class D Flange standards.
  • Bypass Line: The auxiliary bypass line includes a 5/8 inch x 3/4 inch Water Meter (ANSI/AWWA C700 Compliant) coupled with an approved check assembly, designed to monitor water usage.
  • Test Cocks: Contains four properly located resilient seated test cocks as specified by AWWA Standard C510 for easy testing.

Always inquire with governing authorities for local installation requirements and consult the full product installation and safety information before beginning installation.

View full details

Additional Details

The 6 inch FEBCO MasterSeries® LF856 double check detector backflow preventer assembly is designed to protect drinking water supplies from dangerous cross-connections against both backpressure and backsiphonage conditions.

This assembly is primarily used for non-health hazard, non-potable service applications such as irrigation, fire line, or industrial processing, especially where detection of unauthorized water use is required for fire sprinkler and standpipe systems.

Features

  • Lead-Free Construction: The wetted surface of this product contains less than 0.25% of lead by weight.
  • Corrosion Protection: Iron components are coated with ArmorTek®, a patented three-part advanced epoxy system engineered to reduce microbial-induced corrosion (MIC) and protect exposed metal substrate.
  • Main Valve Design: Features an in-line serviceable assembly with no special tools required for servicing. Includes a captured modular spring assembly, reversible and replaceable discs, field replaceable seats, and ductile iron valve body. Equipped with stainless steel check components and clapper check assembly.
  • Auxiliary Bypass: A compact design that remains within the main valve assembly profile, featuring an in-line serviceable 3/4 inch check assembly. It has field replaceable seat and disc, and includes a GPM water meter to detect potential underground water leaks or unauthorized water usage.
  • Shutoff Valves: Supplied with domestic OS&Y resilient seated gate valves that are UL Classified and FM Approved.
  • Winterization Feature: Includes disc retainers and valve body drain ports.

Specifications

  • Valve Type: Double Check Detector Assembly (Type II)
  • Backflow Size: 6 inch
  • Body Material: Ductile iron Grade 65-45-12
  • Coating: ArmorTek powder coating, applied to internal and external surfaces
  • Shutoff Valves: OS&Y resilient wedge gate valves AWWA C515 (UL Classified/FM Approved)
  • Check Seats: Stainless steel
  • Disc Holder: Stainless steel
  • Elastomer Disc: Silicone
  • Spring: Stainless steel
  • Bypass Meter: 5/8 inch x 3/4 inch Water Meter (ANSI/AWWA C700 Compliant) for GPM
  • Lead Content: Wetted surface contains less than 0.25% lead by weight

Pressure & Temperature Ratings

  • Max. Working Pressure: 175 psi (12.1 bar)
  • Min. Working Pressure: 10 psi (0.7 bar)
  • Hydrostatic Test Pressure: 350 psi (24.1 bar)
  • Hydrostatic Safety Pressure: 700 psi (48.3 bar)
  • Temperature Range: 33°F - 140°F (0.5°C ~ 60°C) Continuous

Certificates & Approvals

  • Approved by the Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • ASSE 1048 Listed
  • UL Classified (U.S. & Canada)
  • FM Approved
  • IAPMO
  • AWWA Standard C510 Compliant
  • End Connections: Compliant to ASME B16.1 Class 125 & AWWA Class D Flange

FAQs

What is the primary function of the FEBCO LF856 Double Check Detector Assembly?

This assembly is designed to protect potable drinking water supplies from backpressure and backsiphonage conditions in non-health hazard applications. It prevents pollutants from entering the water system, commonly used for irrigation, fire lines, or industrial processing.

What does 'Lead Free' mean for this product?

The 'Lead Free' designation means that the wetted surfaces of this backflow preventer that come into contact with consumable water contain less than 0.25% lead by weight, complying with current regulations.

How does the ArmorTek® coating protect the assembly?

The ArmorTek® coating is a patented three-part advanced epoxy system applied to the iron components. It is engineered to reduce microbial-induced corrosion (MIC) and protect the exposed metal substrate from electrochemical corrosion.

What kind of shutoff valves are included with this assembly?

The 6 inch FEBCO LF856 assembly comes fitted with UL Classified and FM Approved outside stem and yoke (OS&Y) resilient seated gate valves, which comply with AWWA C515 standards.

Can this backflow preventer detect water leaks or unauthorized usage?

Yes, the auxiliary bypass line includes a 5/8 inch x 3/4 inch GPM (Gallons Per Minute) water meter. This meter is designed to detect both potential underground water leaks and unauthorized water usage within the system.
