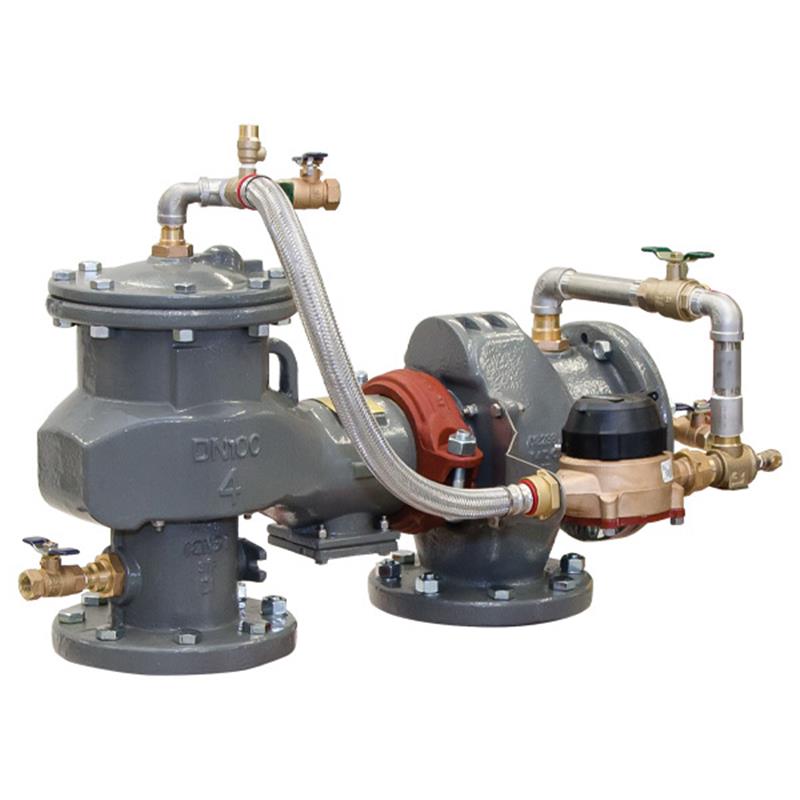

6 LF876-W-LG-GPM

Item Number: 88007338
1 1
$12,111.75
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Size: 6 inch
  • Weight: 410.0 lb
  • Body Material: Ductile Iron Grade 65-45-12
  • Coating: ArmorTek® powder coating
  • Maximum Working Pressure: 175 psi
  • Bypass Meter: Gallons per Minute (GPM)
  • Lead Free: Yes (less than 0.25% lead)
  • Drop-in replacement for competitor N-pattern valves
  • Approvals: ASSE 1048, UL Classified, FM Approved, IAPMO/CUPC

Description

The FEBCO 6 inch LF876W/WZ Double Check Detector Backflow Preventer Assembly offers reliable protection against non-health hazard backpressure and backsiphonage in potable and fire sprinkler systems. Its ductile iron body is enhanced with ArmorTek® coating for superior corrosion resistance, and it includes a GPM metered bypass to detect leaks. Designed for drop-in replacement, this lead-free unit is ASSE 1048 listed, UL Classified, and FM Approved. It operates up to 175 psi and is serviceable in-line. Item number 88007338.

Help Me Connect

Connections and Compatibility

This 6 inch FEBCO MasterSeries® LF876W/WZ assembly is designed for drop-in replacement of competitor N-pattern valves, simplifying installation where an existing backflow preventer is being replaced. Its end connections are compliant to ASME B16.1 Class 125 and AWWA Class D Flange standards, ensuring broad compatibility with standard piping systems. The assembly can be installed in both horizontal and vertical-up flow orientations.

The bypass line features a 5/8"x3/4" Water Meter (GPM) that complies with ANSI/AWWA Standard C700 for accurate measurement of water usage or leaks.

View full details

Additional Details

This 6 inch lead free FEBCO MasterSeries® LF876W/WZ Double Check Detector Backflow Preventer Assembly is designed to prevent the reverse flow of polluted water into the potable water supply due to backpressure or backsiphonage. It is primarily used on potable drinking water systems and fire sprinkler systems to protect against non-health hazard (pollutant) conditions and can detect system leakage or unauthorized water use.

This assembly features a longer lay-length for drop-in replacement of competitor’s N-pattern valves and comes without shutoff valves.

Construction & Features

  • Ductile iron body construction with ArmorTek® 3-part advanced epoxy coating system to reduce microbial-induced corrosion (MIC) and protect against electrochemical corrosion.
  • Two in-line independent check valves with replaceable stainless steel check seats and silicone elastomer discs.
  • Bypass line includes a gallons per minute (GPM) metered bypass and ball valve test cocks to detect potential underground water leaks or unauthorized water usage.
  • In-line serviceable assembly requires no special tools for maintenance.
  • Lead free construction, with wetted surface containing less than 0.25% lead by weight.
  • Approved for horizontal and/or vertical-up installations.
  • Captured modular spring assembly and field replaceable seats.
  • Commonality between 1st and 2nd check components simplifies maintenance.

NOTICE: The information contained herein is not intended to replace the full product installation and safety information available or the experience of a trained product installer. You are required to thoroughly read all installation instructions and product safety information before beginning the installation of this product. Inquire with governing authorities for local installation requirements.

Specifications

  • Product Type: Double Check Detector Backflow Preventer Assembly
  • Model: LF876W/WZ
  • Size: 6 inch
  • Body Material: Ductile Iron Grade 65-45-12
  • Coating: ArmorTek® powder coating (internal and external surfaces)
  • Check Seats: Stainless steel, replaceable
  • Disc Holder: Stainless steel
  • Elastomer Disc: Silicone
  • Spring: Stainless steel
  • Clamp: AWWA C606
  • Bypass Meter: 5/8" x 3/4" Gallons per Minute (GPM) Water Meter
  • Lay Length: Competitor N-Pattern
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Minimum Working Pressure: 10 psi (0.7 bar)
  • Hydrostatic Test Pressure: 350 psi (24.1 bar)
  • Hydrostatic Safety Pressure: 700 psi (48.3 bar)
  • Temperature Range: 33°F - 140°F (0.5°C ~ 60°C) continuous

Certificates & Approvals

  • FCCCHR-USC Approved
  • ASSE 1048 Listed
  • UL Classified (U.S. & Canada)
  • FM Approved
  • IAPMO/CUPC
  • AWWA Standard C510 Compliant (for Shutoff Valves)
  • AWWA Standard C700 Compliant (for Water Meter)
  • End Connections: Compliant to ASME B16.1 Class 125 & AWWA Class D Flange
  • CSA B64.5

FAQs

What type of water systems is this backflow preventer suitable for?

This backflow preventer is suitable for potable drinking water systems and fire sprinkler systems, protecting against non-health hazard (pollutant) backpressure and backsiphonage conditions.

What does "Lead Free" mean for this product?

"Lead Free" indicates that the wetted surface of this product, which comes into contact with consumable water, contains less than 0.25% of lead by weight.

Can this assembly be installed in different orientations?

Yes, the FEBCO MasterSeries LF876W/WZ assembly is approved for both horizontal and vertical-up installations, providing flexibility for various plumbing configurations.

What is the purpose of the GPM metered bypass?

The gallons per minute (GPM) metered bypass is designed to detect potential underground water leaks within the system or unauthorized water usage, providing valuable monitoring capabilities.

What is ArmorTek® coating and why is it important?

ArmorTek® is a patented three-part advanced epoxy system applied to the ductile iron components. It is engineered to reduce microbial-induced corrosion (MIC) and protect against electrochemical corrosion, extending the lifespan of the backflow preventer.
