6 LF876-WZ-LG-GPM

Item Number: 88007355
1 1
$12,111.75
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Size: 6 inch
  • Weight: 410.0 lb
  • Body Material: Ductile Iron Grade 65-45-12
  • Coating: ArmorTek powder coating for corrosion resistance
  • Configuration: Z-Pattern, drop-in competitor replacement
  • Bypass Meter: Gallons per Minute (GPM)
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 33°F - 140°F continuous
  • Lead Free: Less than 0.25% lead by weight

Description

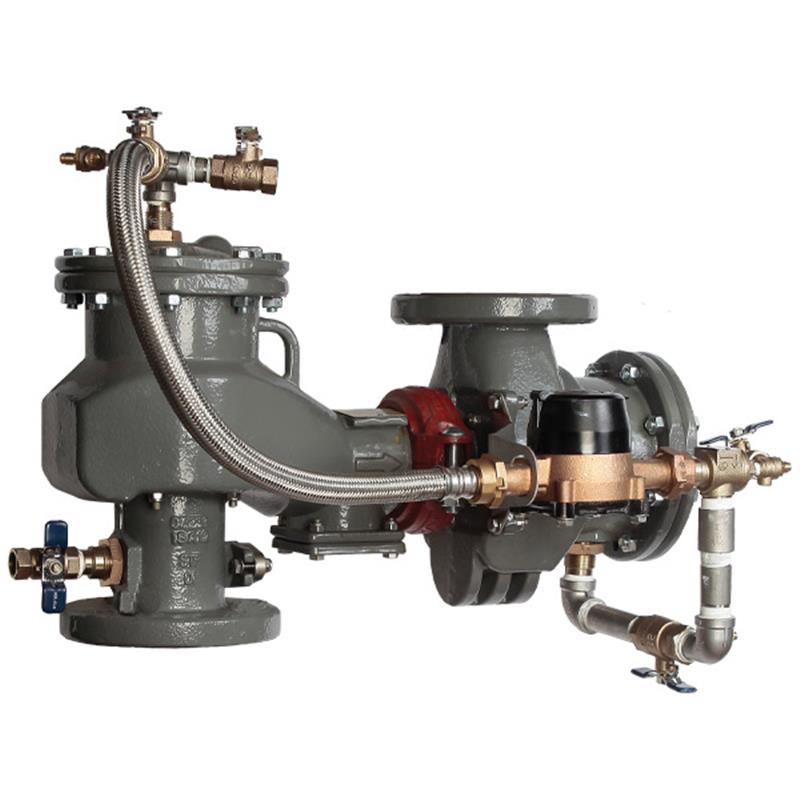

The 6 inch FEBCO MasterSeries LF876W/WZ Double Check Detector Backflow Preventer Assembly is designed for Z-pattern installations, offering a drop-in replacement for competitor valves. This lead-free device prevents polluted water from entering potable water supplies due to backsiphonage or backpressure, making it suitable for fire protection systems. It features a durable ductile iron body with ArmorTek coating for advanced corrosion resistance and includes a Gallons per Minute (GPM) meter to detect leaks. It operates up to 175 psi and ensures water system integrity. Item number 88007355.

Help Me Connect

Installation Orientation & Connections

  • This 6 inch FEBCO MasterSeries LF876W/WZ assembly is specifically designed for Z-Pattern (vertical up) flow orientation, allowing for a drop-in replacement of competitor's Z-pattern valves.
  • The end connections are compliant with ASME B16.1 Class 125 and AWWA Class D Flange standards, ensuring compatibility with standard flanged piping systems.
  • Ensure that connecting pipes are correctly aligned to match the Z-Pattern configuration for optimal performance and secure installation.
View full details

Additional Details

This 6 inch FEBCO MasterSeries LF876W/WZ Double Check Detector Backflow Preventer Assembly, Type II, is designed for the Z-pattern flow orientation, specifically for drop-in replacement of competitor's Z-pattern valves.

It is engineered to prevent the reverse flow of polluted water from entering the potable water supply due to backsiphonage or backpressure, primarily for use in fire protection systems to detect system leakage or unauthorized water usage.

Construction & Features

  • Features a durable ductile iron body construction (Grade 65-45-12)
  • Utilizes ArmorTek®, a patented three-part advanced epoxy system, to resist microbial-induced corrosion (MIC) and protect exposed metal surfaces
  • Designed as a competitor drop-in replacement lay length for Z-pattern valves
  • Equipped with two in-line independent check valves, stainless steel check seats, and silicone elastomer discs
  • Includes a gallons per minute (GPM) metered bypass to detect potential underground water leaks and unauthorized water usage
  • Features in-line serviceable assembly requiring no special tools for main valve maintenance
  • Comes with field replaceable seats and discs and a captured modular spring assembly
  • Built with lead-free wetted surfaces, containing less than 0.25% lead by weight

NOTICE: The information contained herein is not intended to replace the full product installation and safety information available or the experience of a trained product installer. You are required to thoroughly read all installation instructions and product safety information before beginning the installation of this product. Inquire with governing authorities for local installation requirements.

Specifications

  • Size: 6 inch
  • Main Valve Body Material: Ductile iron Grade 65-45-12
  • Coating: ArmorTek powder coating
  • Shutoff Valves: Less Shutoff Valves
  • Check Seats Material: Stainless steel
  • Disc Holder Material: Stainless steel
  • Elastomer Disc Material: Silicone
  • Spring Material: Stainless steel
  • Clamp Standard: AWWA C606

Pressure & Temperature

  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Minimum Working Pressure: 10 psi (0.7 bar)
  • Hydrostatic Test Pressure: 350 psi (24.1 bar)
  • Hydrostatic Safety Pressure: 700 psi (48.3 bar)
  • Temperature Range: 33°F - 140°F (0.5°C ~ 60°C) continuous

Certificates & Approvals

  • Approved by the Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • ASSE 1048 Listed
  • UL Classified (U.S. & Canada)
  • FM Approved
  • IAPMO/CUPC
  • AWWA Standard C510 Compliant
  • End Connections: Compliant to ASME B16.1 Class 125 & AWWA Class D Flange

FAQs

What is the primary function of this backflow preventer assembly?

This assembly's primary function is to prevent the reverse flow of polluted water into the potable water supply due to backsiphonage or backpressure, especially in non-health hazard (pollutant) applications like fire sprinkler systems.

What does the 'Z-Pattern Lay Length' refer to?

The 'Z-Pattern Lay Length' indicates that this assembly is configured for a Z-shaped flow orientation, and its dimensions are specifically designed to allow for a drop-in replacement of existing competitor's Z-pattern backflow preventer valves.

Does this model come with shutoff valves?

No, this specific model (6 LF876-WZ-LG-GPM) is configured as 'Less Shutoff Valves', meaning the inlet and outlet shutoff valves are not included with the assembly.

What is ArmorTek coating and its benefit?

ArmorTek is a patented three-part advanced epoxy system applied to the iron components. It is engineered to reduce microbial-induced corrosion (MIC) and protect the exposed metal substrate, enhancing the durability and lifespan of the backflow preventer.

What is the purpose of the GPM meter in the bypass line?

The Gallons Per Minute (GPM) meter in the auxiliary bypass line is designed to detect potential underground water leaks within the system and identify any unauthorized water usage, providing valuable monitoring capabilities.
