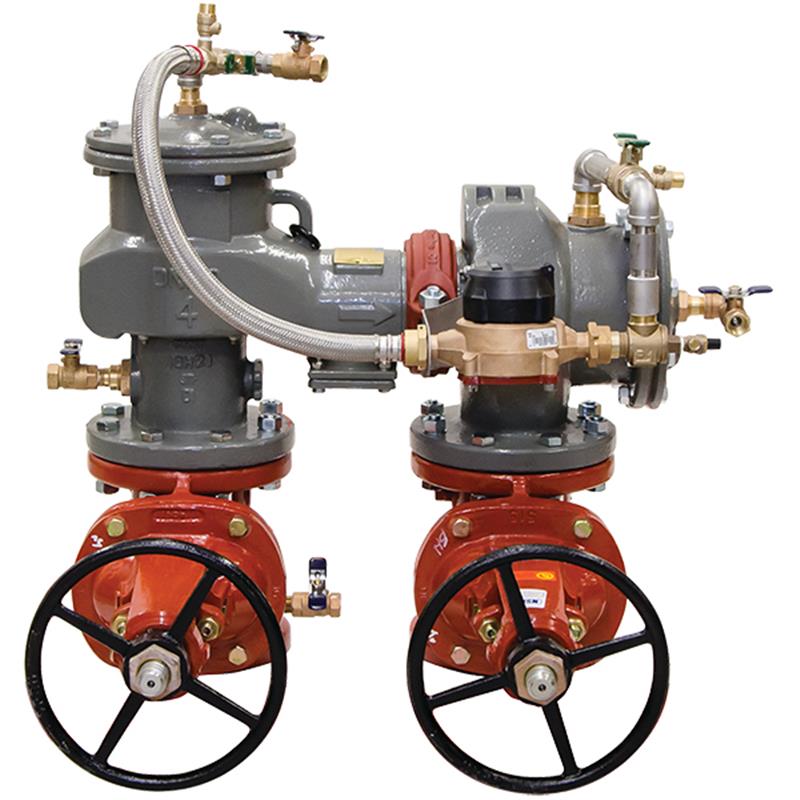

6 LF876V-OSY-GPM

Item Number: 0124482
1 1
$19,362.12
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Size: 6 inch
  • Weight: 705.0 lb
  • Body Material: Ductile Iron Grade 65-45-12
  • Coating: ArmorTek® advanced epoxy system
  • Lead Free: Yes (<0.25% lead)
  • Maximum Working Pressure: 175 psi
  • Installation: Horizontal N-pattern or Vertical-Up Z-pattern
  • Bypass: GPM water meter to detect leaks
  • Certifications: ASSE 1048, UL Classified, FM Approved

Description

The 6 inch FEBCO MasterSeries LF876V Double Check Detector Backflow Preventer Assembly is designed to protect potable drinking water and fire sprinkler systems from backpressure and backsiphonage of polluted water. This lead-free device features a durable ductile iron body with ArmorTek® epoxy coating for enhanced corrosion resistance. It includes OSY shutoff valves, a GPM meter for leak detection, and can be installed in both horizontal (N-pattern) and vertical-up (Z-pattern) configurations. Certified by ASSE 1048, UL, FM, and IAPMO/CUPC, it ensures reliable, in-line serviceable protection. Maximum working pressure is 175 psi.

Help Me Connect

Connections

  • This assembly features end connections compliant with ASME B16.1 Class 125 and AWWA Class D Flange standards.
  • The integrated OSY resilient wedge gate valves are UL Classified and FM Approved for reliable shutoff.
  • The auxiliary bypass line includes a 5/8"x3/4" water meter compliant with ANSI/AWWA Standard C700.
  • The unit is suitable for connection to potable water supply and fire sprinkler systems in applications requiring protection against non-health hazard pollutants.
View full details

Additional Details

The 6 inch FEBCO MasterSeries LF876V Double Check Detector Backflow Preventer Assembly is designed to prevent the reverse flow of polluted water into the potable supply due to backsiphonage or backpressure. It is primarily used on potable drinking water systems and fire sprinkler systems to detect system leakage or unauthorized water use.

This assembly can be installed in either an N-pattern (horizontal) or Z-pattern (vertical-up) configuration to optimize installation footprint and reduce costs. It incorporates a patented ArmorTek® coating for enhanced corrosion protection and is constructed with lead-free materials for safe drinking water applications.

Key Features

  • Ductile iron body construction, coated with ArmorTek® advanced epoxy system to resist microbial-induced corrosion (MIC) and protect metal substrate.
  • Lead-free design ensures the wetted surface contains less than 0.25% lead.
  • Configurable for both horizontal (N-pattern) and vertical-up (Z-pattern) installations.
  • Features two in-line independent check valves with replaceable seats and discs.
  • Includes OSY resilient seated gate valves and four properly located resilient seated test cocks.
  • Detector bypass assembly with a Gallons Per Minute (GPM) water meter (5/8"x3/4") to detect leaks or unauthorized water usage.
  • In-line serviceable design for both main valve and bypass assembly; no special tools required for servicing.
  • Captured modular spring assembly, reversible and replaceable discs, and field replaceable seats.
  • Winterization feature with disc retainers and valve body drain ports.

Specifications

  • Size: 6 inch
  • Model: LF876V
  • Assembly Type: Double Check Detector Backflow Preventer Assembly (Type II)
  • Valve Body Material: Ductile Iron Grade 65-45-12
  • Coating: ArmorTek® powder coating (applied to internal and external surfaces)
  • Lead Content: Wetted surface contains less than 0.25% lead
  • Check Seat Material: Stainless steel
  • Disc Holder Material: Stainless steel
  • Elastomer Disc Material: Silicone
  • Spring Material: Stainless steel
  • Clamp Material: AWWA C606
  • Bypass Water Meter: 5/8" x 3/4" Totalizing GPM Meter

Pressure and Temperature Ratings

  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Minimum Working Pressure: 10 psi (0.7 bar)
  • Hydrostatic Test Pressure: 350 psi (24.1 bar)
  • Hydrostatic Safety Pressure: 700 psi (48.3 bar)
  • Temperature Range: 33°F – 140°F (0.5°C – 60°C) continuous

Certificates & Approvals

  • Approved by the Foundation for Cross-Connection Control and Hydraulic Research (FCCCHR-USC)
  • ASSE 1048 Listed
  • UL Classified (U.S. & Canada)
  • FM Approved
  • IAPMO/CUPC
  • AWWA Standard C510 Compliant
  • CSA B64.5
  • End Connections: Compliant to ASME B16.1 Class 125 & AWWA Class D Flange
  • Main Valve Body: Ductile iron Grade 65-45-12
  • Shutoff Valves: OSY resilient wedge gate valve AWWA C515 (UL/FM)
  • Bypass Meter: Compliant with ANSI/AWWA Standard C700

FAQs

What is the primary purpose of the FEBCO LF876V assembly?

The primary purpose is to protect potable drinking water and fire sprinkler systems from pollution caused by backpressure or backsiphonage, specifically for non-health hazard applications.

Can this backflow preventer be installed in different orientations?

Yes, the FEBCO LF876V assembly is designed for configurable installation in both horizontal (N-pattern) and vertical-up (Z-pattern) orientations.

What kind of corrosion protection does this assembly feature?

The ductile iron body is coated with ArmorTek®, a patented three-part advanced epoxy system engineered to reduce microbial-induced corrosion (MIC) and protect exposed metal surfaces.

How does the detector bypass assembly function?

The detector bypass assembly includes a 5/8"x3/4" Gallons Per Minute (GPM) water meter which is designed to detect potential underground water leaks or unauthorized water usage within the system.

Is the FEBCO LF876V considered a lead-free product?

Yes, the wetted surface of this product that contacts consumable water contains less than 0.25% of lead by weight, meeting lead-free requirements.
