6 LF876WZ-DOSY-GPM

Item Number: 88007353
1 1
$19,361.25
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Size: 6 inch
  • Weight: 705.0 lb
  • Body Material: Ductile Iron Grade 65-45-12
  • Backflow Type: Double Check Detector
  • Coating: ArmorTek (Patented 3-part advanced epoxy)
  • Maximum Working Pressure: 175 psi
  • Shutoff Valves: Domestic OSY Resilient Wedge Gate Valves
  • Bypass: GPM Metered Type II
  • Lay Length: Competitor Z-pattern for drop-in replacement

Description

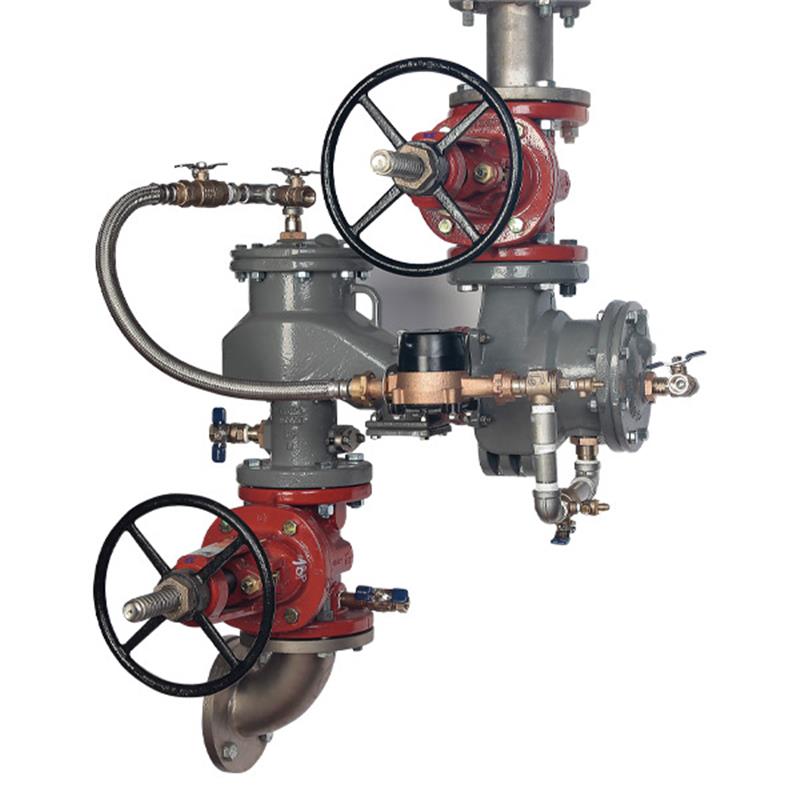

This 6 inch FEBCO MasterSeries Double Check Detector Backflow Preventer Assembly is constructed from durable ductile iron with ArmorTek epoxy coating for advanced corrosion resistance. It effectively prevents the reverse flow of polluted water into potable water supplies and is primarily used in fire protection systems. The assembly features a Z-pattern lay length for direct drop-in replacement of competitor Z-pattern valves, domestic OSY shutoff valves, and a GPM metered Type II bypass for detecting leaks. With a maximum working pressure of 175 psi, it provides reliable backflow prevention for industrial and commercial applications. Item number 88007353.

Help Me Connect

This backflow preventer assembly features a specific Z-pattern lay length, which makes it an ideal direct drop-in replacement for competitor valves with similar Z-pattern dimensions. Its configurable design supports both standard N-pattern and vertical Z-pattern orientations, offering flexibility to reduce installation footprint and costs.

Connections

  • End connections are compliant to ASME B16.1 Class 125 and AWWA Class D Flange standards.
  • Designed for integration into fire protection systems and other potable water supply lines requiring backflow prevention.
View full details

Additional Details

This 6 inch FEBCO MasterSeries Double Check Detector Backflow Preventer Assembly is designed to prevent the reverse flow of polluted water from entering into the potable water supply. It is primarily used in fire protection systems to provide indications of system leakage or unauthorized water use.

Main Valve Features

  • Provides in-line serviceability for easy maintenance.
  • Supports both Horizontal N-pattern and Vertical U-Z-pattern installations.
  • Designed to not require special tools for servicing.
  • Features a captive, no-tools spring assembly.
  • Includes reversible and replaceable check components.
  • Equipped with field replaceable seats.
  • Constructed with a durable Ductile Iron valve body.
  • Check modules are made from Stainless Steel.
  • Utilizes ArmorTek coating technology for advanced corrosion resistance.
  • Includes clapper check assembly.
  • Ensures commonality between the 1st and 2nd check components.
  • Features a captivated O-ring design.

Auxiliary Bypass Features

  • Compact bypass design that remains within the main valve assembly profile.
  • Includes an in-line serviceable ¾ inch check assembly.
  • No special tools are required for servicing the bypass.
  • Aids in detecting potential underground water leaks.
  • Helps identify unauthorized water usage.

Specifications

  • Size: 6 inch
  • Body Material: Ductile Iron Grade 65-45-12
  • Backflow Type: Double Check Detector
  • Coating: ArmorTek (Patented 3-part advanced epoxy)
  • Check Module Material: Stainless Steel
  • Check Seat Material: Stainless Steel
  • Disc Holder Material: Stainless Steel
  • Elastomer Disc Material: Silicone
  • Spring Material: Stainless Steel
  • Clamp Material: AWWA C606
  • Shutoff Valves: Domestic OSY resilient wedge gate valve (AWWA C515 UL/FM)
  • Bypass: GPM Metered Type II
  • Lay Length: Competitor Z-pattern (Longer for drop-in replacement)
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Minimum Working Pressure: 10 psi (0.7 bar)
  • Hydrostatic Test Pressure: 350 psi (24.1 bar)
  • Hydrostatic Safety Pressure: 700 psi (48.3 bar)
  • Temperature Range: 33°F – 140°F (0.5°C – 60°C) continuous

Certificates & Approvals

  • Approved by Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • ASME 1048 Listed
  • UL Classified (U.S. & Canada)
  • FM Approved
  • IAPMO/CUPC
  • AWWA Standard C510 Compliant
  • End Connections Compliant to ASME B16.1 Class 125 & AWWA Class D Flange
  • Lead Content: Wetted surface contains less than 0.25% lead by weight

FAQs

What is the primary use of this backflow preventer?

This backflow preventer is primarily used in fire protection systems to prevent the reverse flow of polluted water into the potable water supply and to detect system leakage or unauthorized water use through its metered bypass.

What does "Z-pattern lay length" mean for this product?

The Z-pattern lay length indicates a specific, longer dimension for the valve assembly, which makes it a direct "drop-in" replacement for competitor backflow preventers with similar Z-pattern configurations.

What material is the body made from, and what is "ArmorTek coating"?

The body is constructed from Ductile Iron Grade 65-45-12. ArmorTek coating is a patented 3-part advanced epoxy system applied to both internal and external surfaces to protect against microbial induced (MIC) and exposed metal substrate corrosion.

What is the maximum operating pressure for this assembly?

The maximum working pressure for this 6-inch Double Check Detector Backflow Preventer Assembly is 175 psi (12.1 bar).

Are special tools required for servicing this backflow preventer?

No, the design of this assembly, specifically its main valve and bypass, does not require special tools for servicing, simplifying maintenance procedures.
