6 LF880V-LG-FS

Item Number: F122948
1 1
$14,010.76
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Size: 6 inch
  • Weight: 406.0 lb
  • Lead Free Construction
  • Body Material: Ductile Iron
  • ArmorTek® epoxy coating for advanced corrosion resistance
  • Stainless-steel relief valve seat and check components
  • Integrated SentryPlus Alert® flood sensor
  • Configurable N-Pattern design
  • Protects against high hazard (toxic) fluids

Description

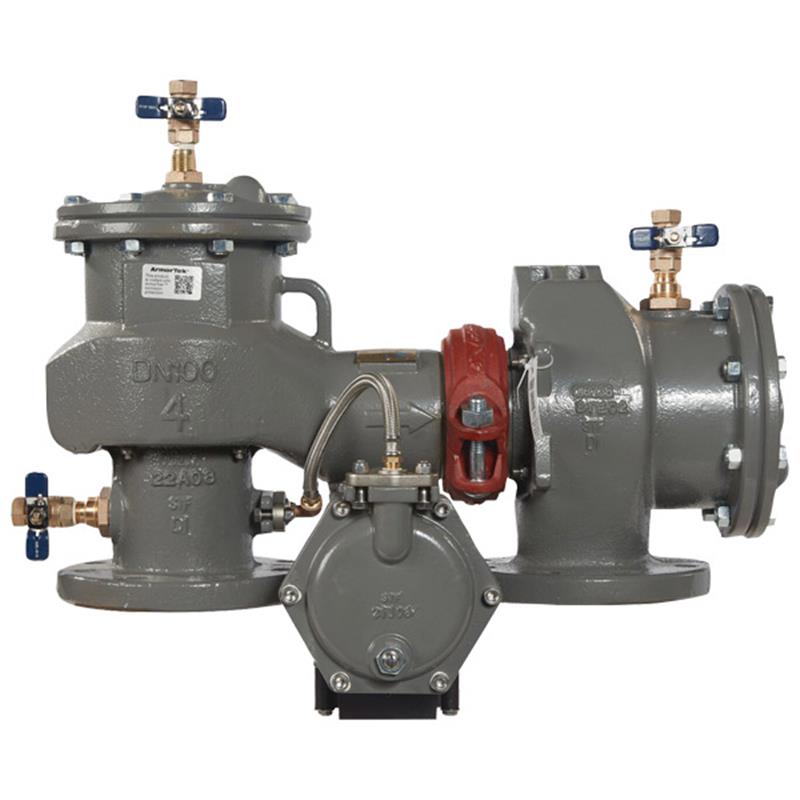

This FEBCO 6 inch lead free reduced pressure zone backflow preventer assembly is engineered to protect water services in industrial applications from high hazard (toxic) fluids. Constructed with a durable ductile iron body, it features a patented 3-part ArmorTek® epoxy coating for superior corrosion resistance and extended life. Stainless-steel relief valve seats and check components enhance reliability. An integrated SentryPlus Alert® flood sensor detects continuous relief valve discharge, with optional connection kits available for remote monitoring and alerts via BMS, cellular, or Wi-Fi to a BAS. The assembly features a configurable N-Pattern design and is supplied without shutoff valves.

Help Me Connect

This 6 inch lead free reduced pressure zone backflow preventer assembly is designed without integral shutoff valves. It includes a flood sensor with SentryPlus Alert® technology to monitor relief valve discharge. To enable alert notifications, the sensor requires an add-on connection kit, which is sold separately.

  • Connection Kit Options: Available kits include options for BMS (Building Management Systems), cellular communication, or the Sensor Control Monitor.
  • Sensor Control Monitor: This option allows integration with Building Automation Systems (BAS) via RS-485 Modbus or connectivity to the Nexa® platform through Wi-Fi for remote monitoring and alerts.
View full details

Additional Details

This 6 inch lead free MasterSeries® configurable reduced pressure zone backflow preventer assembly protects against high hazard (toxic) fluids in water services for industrial installations and applications. This assembly is supplied without the shutoff valves.

Construction & Materials

  • Features a lead free body with a ductile iron construction
  • Body is fused with a patented 3-part ArmorTek® epoxy coating system, designed to limit both microbial induced (MIC) and exposed metal substrate corrosion for advanced corrosion resistance
  • Includes stainless-steel relief valve seat and stainless-steel check components for maximum performance, durability, and extended valve life
  • Designed with a configurable N-Pattern

Flood Sensor Technology

  • Contains a flood sensor with SentryPlus Alert® technology to detect continuous or excessive water discharge from the relief valve
  • When paired with an add-on connection kit (sold separately), the sensor activates to relay alerts for potential flooding events
  • Sensor connection kit options include BMS, cellular communication, and the Sensor Control Monitor for integration with Building Automation Systems (BAS) via RS-485 Modbus or the Nexa® platform through Wi-Fi

Specifications

  • Size: 6 inch
  • Type: Lead Free Reduced Pressure Zone Backflow Preventer Assembly
  • Body Material: Ductile Iron
  • Body Coating: Patented 3-part ArmorTek® epoxy coating system
  • Relief Valve Seat Material: Stainless-steel
  • Check Components Material: Stainless-steel
  • Included: Flood sensor with SentryPlus Alert® technology
  • Shutoff Valves: Not included (Less Shutoffs)
  • Design Pattern: N-Pattern (Configurable)

FAQs

What is the primary purpose of this 6 inch backflow preventer?

This backflow preventer assembly is designed to protect water services in industrial installations and applications from contamination by high hazard (toxic) fluids.

What materials are used in the construction of this backflow preventer?

The assembly features a lead free ductile iron body, coated with a patented 3-part ArmorTek® epoxy system for corrosion resistance. It also includes stainless-steel relief valve seats and stainless-steel check components.

Does this backflow preventer assembly include shutoff valves?

No, this 6 inch backflow preventer assembly is supplied without the shutoff valves. They would need to be sourced separately if required for installation.

How does the SentryPlus Alert® flood sensor function?

The integrated flood sensor with SentryPlus Alert® technology detects continuous or excessive water discharge from the relief valve. When paired with an optional add-on connection kit, it can relay alerts for potential flooding.

Can the flood sensor alerts be integrated with a building management system?

Yes, with an optional Sensor Control Monitor connection kit, the flood sensor can integrate with Building Automation Systems (BAS) via RS-485 Modbus or connect to the Nexa® platform through Wi-Fi for remote monitoring and alerts.
