6 LF886V-DOSY-GPM-FS

Item Number: F683216
1 1
$25,646.05
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Size: 6 inch
  • Weight: 530.0 lb
  • Lead Free: Yes (<0.25% lead by weight)
  • Main Valve Body Material: Ductile iron Grade 65-45-12
  • Coating: ArmorTek® advanced epoxy system
  • Shutoff Valves: Domestic OSY
  • Flood Sensor: SentryPlus Alert® technology
  • Bypass Meter: Gallons per minute (GPM)
  • Maximum Working Pressure: 175 psi

Description

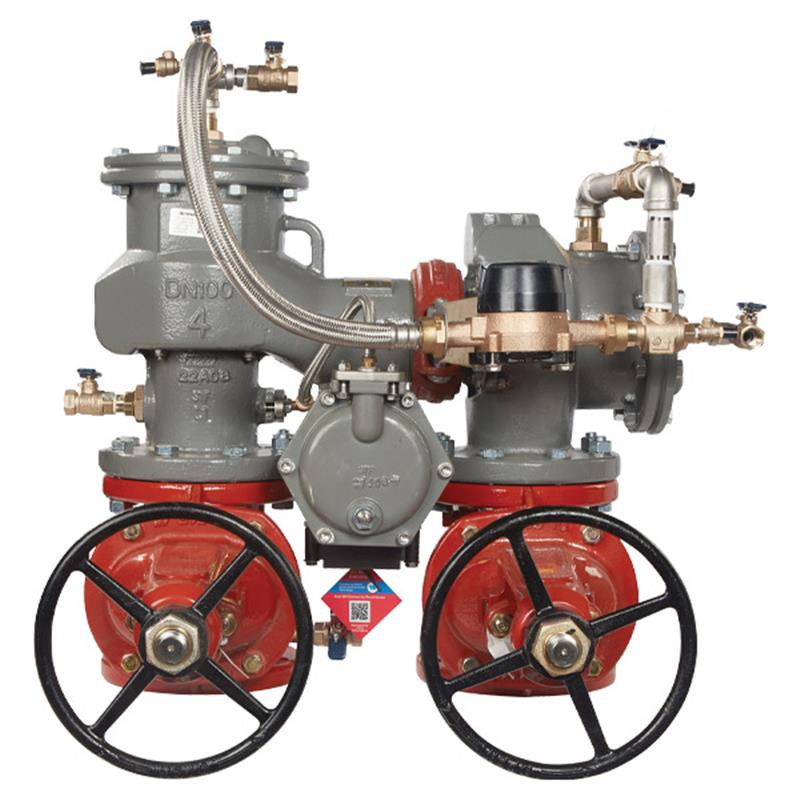

The 6 inch FEBCO MasterSeries LF886V Reduced Pressure Zone Detector Backflow Preventer Assembly is designed for high hazard and toxic applications in potable water systems, protecting against backpressure and backsiphonage. Its durable ductile iron body features an ArmorTek® advanced epoxy coating for superior corrosion resistance. This lead-free assembly includes domestic OSY shutoff valves, stainless steel check components, and a GPM metered bypass for leak detection. An integrated SentryPlus Alert® flood sensor monitors the relief valve for discharges, providing early warning when connected to an optional communication kit. Maximum working pressure is 175 psi. Item number F683216.

Help Me Connect

Connections

  • This assembly features flanged end connections, compliant to ASME B16.1 Class 125 and AWWA Class D Flange standards.
  • An add-on connection kit is required to activate the integrated flood sensor for communication capabilities. Available connection kit options include BMS (Building Management System), cellular communication, or the Sensor Control Monitor for integration with BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi. Without a connection kit, the flood sensor operates as a passive component.
View full details

Additional Details

The 6 inch lead free MasterSeries® LF886V Reduced Pressure Zone Detector Backflow Preventer Assembly is designed to protect potable water systems from backpressure and backsiphonage conditions caused by high hazard or toxic fluids in industrial installations and applications.

Key Features

  • Features a flood sensor with SentryPlus Alert® technology to detect continuous discharge from the relief valve.
  • ArmorTek® coating technology, a patented three-part advanced epoxy system, protects iron components from microbial-induced corrosion (MIC) and exposed metal substrate.
  • Equipped with domestic OSY shutoff valves and ball valve test cocks.
  • Incorporates a stainless steel relief valve seat and stainless steel check components for maximum performance and durability.
  • Designed for inline serviceability with field replaceable seats and discs.

Bypass Assembly

  • Includes a gallons per minute (GPM) metered bypass to detect potential underground water leaks or unauthorized water usage.
  • Features an inline serviceable 3/4 inch check assembly with field replaceable seat and disc.

Installation must comply with all required instructions, codes, and regulations related to the proper installation, operation, and maintenance of this product. Proper drainage must be provided in the event of a discharge.

Specifications

General

  • Product Type: Reduced Pressure Zone Detector Backflow Preventer Assembly
  • Series: MasterSeries® LF886V
  • Lead Free: Wetted surface contains less than 0.25% lead by weight

Performance

  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Minimum Working Pressure: 20 psi (1.4 bar)
  • Hydrostatic Test Pressure: 350 psi (24.1 bar)
  • Hydrostatic Safety Pressure: 700 psi (48.3 bar)
  • Temperature Range: 33°F - 140°F (0.5°C - 60°C) continuous

Materials

  • Main Valve Body: Ductile iron Grade 65-45-12
  • Relief Valve Body: Ductile iron Grade 65-45-12
  • Coating: ArmorTek powder coating (internal and external)
  • Shutoff Valves: OSY resilient wedge gate valve AWWA C515
  • Check Seats: Stainless steel
  • Relief Valve Seat: Stainless steel
  • Disc Holder: Stainless steel
  • Elastomer Disc: Silicone
  • Spring: Stainless steel
  • Clamp: AWWA C606

Dimensions (N-Pattern)

  • Nominal Size: 6 inch
  • A (Length): 35 3/4 inch (908 mm)
  • B (Height): 16 inch (406 mm)
  • C (Valve Body Width): 8 inch (203 mm)
  • D (Main Valve Body Length): 32 3/4 inch (831 mm)
  • E (Main Valve Body Height): 22 1/8 inch (562 mm)
  • F (Main Valve Body Outlet Length): 18 5/8 inch (473 mm)
  • G (Bypass Assembly Length): 37 1/4 inch (946 mm)
  • H (Bypass Assembly Width): 7 1/4 inch (184 mm)
  • J (Bypass Assembly Height): 12 1/2 inch (316 mm)
  • K (Distance to Center): 5 1/2 inch (140 mm)
  • L (Distance to Center): 30 1/8 inch (765 mm)
  • Weight (OSY): 530 lb (240 kg)

Certificates & Approvals

  • Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • ASSE 1047
  • UL Classified (US & Canada)
  • FM Approved
  • IAPMO/CUPC
  • AWWA Standard C511 Compliant
  • CSA B64.4
  • End Connections: Compliant to ASME B16.1 Class 125 & AWWA Class D Flange

FAQs

What is the primary purpose of the FEBCO LF886V backflow preventer?

This backflow preventer is designed to protect potable water systems from contamination due to backpressure and backsiphonage in high hazard or toxic applications, such as industrial installations.

What is ArmorTek® coating and why is it important?

ArmorTek® is a patented three-part advanced epoxy coating applied to the ductile iron components. It's crucial for resisting microbial-induced corrosion (MIC) and protecting exposed metal surfaces, extending the life and reliability of the assembly.

How does the integrated flood sensor work?

The SentryPlus Alert® flood sensor detects excessive water discharges from the relief valve. When paired with an optional add-on connection kit (BMS, cellular, or Wi-Fi via Sensor Control Monitor), it can relay signals for multichannel alerts, notifying personnel of potential flooding.

Does this backflow preventer include shutoff valves and a bypass meter?

Yes, it includes domestic OSY (Outside Stem & Yoke) resilient wedge gate shutoff valves and a GPM (gallons per minute) metered bypass assembly. The bypass helps detect minor leaks or unauthorized water usage.

What are the main material components of the FEBCO LF886V?

The main and relief valve bodies are made of ductile iron Grade 65-45-12 with ArmorTek® coating. Key internal components like check seats, relief valve seat, disc holder, and springs are stainless steel, while the elastomer disc is silicone.
