6 LFC300-BFG-GPM

Item Number: 0124586
1 1
$12,896.68
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 6 inch
  • Weight: 254.0 lb
  • Lead Free: Wetted surfaces contain < 0.25% lead
  • Maximum Working Pressure: 175 PSI
  • Housing & Sleeve: 304 Stainless Steel
  • Shutoff Valves: Grooved Gear Operated Butterfly with Tamper Switch
  • Check Valves: Patented Tri-Link design with reversible discs
  • Installation: Horizontal, Vertical Up, or N-Pattern
  • Includes Gallons Per Minute meter

Description

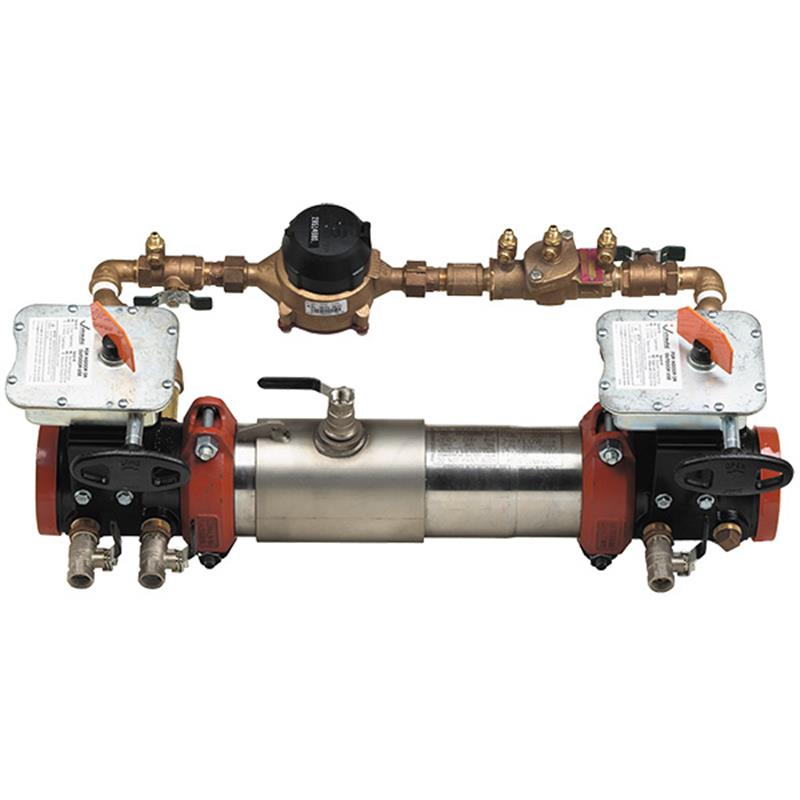

The Colt 6 inch LFC300-BFG Lead Free Double Check Detector Backflow Preventer Assembly is engineered to prevent pollutants from entering potable water systems, ideal for fire line sprinkler systems and non-health hazard applications. Featuring a compact design with a 304 stainless steel housing and sleeve, it is 70% lighter than traditional models. This assembly includes patented Tri-Link check valves for low pressure loss and easy serviceability, along with grooved gear operated butterfly valves with tamper switches and a gallons per minute meter to detect leaks. It is approved for horizontal, vertical, or N-pattern installations, offering a maximum working pressure of 175 PSI. Item number 0124586.

Help Me Connect

The Colt LFC300-BFG backflow preventer assembly is equipped with groove end connections for easy installation into a pipeline. It features grooved gear operated butterfly valves with a tamper switch for shutoff. The bypass assembly connects via ASME/ANSI flanged end connections and includes a meter and double check valve.

Configurations

  • Approved for horizontal, vertical up, and "N" pattern horizontal installations.
  • The assembly is suitable for fire line sprinkler systems and other non-health hazard applications where backflow prevention is critical.
View full details

Additional Details

The Colt 6 inch Lead Free Double Check Detector Backflow Preventer Assembly (LFC300-BFG) is designed to prevent the reverse flow of pollutants into potable water supply systems, primarily for fire line sprinkler systems and non-health hazard applications. It includes a gallons per minute meter for monitoring unauthorized water use or detecting underground leaks.

This assembly can be installed under continuous pressure service and withstand backpressure, providing drip-tight closure against reverse flow.

Features

  • Lead Free* construction with wetted surfaces containing less than 0.25% lead by weight.
  • Extremely compact design, up to 70% lighter than traditional designs.
  • Housing and sleeve constructed from 304 (Schedule 40) stainless steel.
  • Groove fittings allow integral pipeline adjustment.
  • Patented Tri-Link check valves provide lowest pressure loss and unmatched ease of serviceability.
  • Check discs feature reversible silicone or EPDM rubber.
  • Equipped with grooved gear operated butterfly shutoff valves with tamper switch.
  • Can be used for horizontal, vertical, or N pattern installations.
  • Includes a bypass assembly with meter and double check valve with ASME/ANSI flanged end connections.

Specifications

General

  • Product Type: Double Check Detector Backflow Preventer Assembly
  • Series: LFC300, LFC300N
  • Inlet/Outlet Connection Type: Grooved
  • Shutoff Valves: Grooved Gear Operated Butterfly Valves with Tamper Switch
  • Meter Type: Gallons Per Minute (GPM)
  • Installation Orientation: Horizontal, Vertical Up, N-Pattern Horizontal

Materials

  • Housing & Sleeve: 304 (Schedule 40) Stainless Steel
  • Elastomers: EPDM, Silicone, Buna 'N'
  • Tri-Link Checks: Noryl®, Stainless Steel
  • Check Discs: Reversible Silicone or EPDM
  • Test Cocks: Lead Free* Bronze Body
  • Pins & Fasteners: 300 Series Stainless Steel
  • Springs: Stainless Steel

Performance

  • Size: 6 inch
  • Maximum Working Pressure: 175 PSI (12.06 bar)
  • Temperature Range: 33°F - 110°F (5°C - 43°C)

Dimensions (Approximate)

  • Length (A): 36 1/2 in. (927 mm)
  • Width (C): 10 in. (254 mm)
  • Height (D): 5 in. (127 mm)
  • Overall Length (G): 43 3/16 in. (1097 mm)
  • Overall Height (H): 33 1/4 in. (845 mm)
  • Outlet to Bypass (J): 19 11/16 in. (500 mm)
  • Inlet to Bypass (P): 14 1/2 in. (368 mm)

Weight

  • Net Weight: 131 lb (59 kg)

Certificates & Approvals

  • Foundation for Cross-Connection Control and Hydraulic Research (FCCCHR-USC)
  • AWWA C510-97
  • ASSE 1048
  • CSA B64.5
  • UL Classified
  • FM Approved
  • NSF Certified to NSF/ANSI 372

FAQs

What is the primary use of the Colt LFC300-BFG assembly?

The Colt LFC300-BFG is primarily used to prevent backflow of pollutants into potable water supply systems, specifically for fire line sprinkler systems and other non-health hazard applications where water monitoring is needed.

What is the maximum working pressure and temperature range for this backflow preventer?

This assembly has a maximum working pressure of 175 PSI (12.06 bar) and operates effectively within a temperature range of 33°F to 110°F (5°C to 43°C).

What materials are used for the main components of the LFC300-BFG?

The housing and sleeve are made from 304 (Schedule 40) stainless steel. Tri-Link checks use Noryl® and stainless steel, while reversible check discs are silicone or EPDM. Test cocks are Lead Free* bronze.

Can this backflow preventer be installed in different orientations?

Yes, the Colt LFC300-BFG is approved for horizontal, vertical up, and "N" pattern horizontal installations, providing flexibility for various site requirements.

What type of shutoff valves are included with the LFC300-BFG model?

The LFC300-BFG model comes equipped with UL Classified and FM Approved grooved gear operated butterfly valves, which include an integrated tamper switch for enhanced security and monitoring.
