6 LFC300N-BFG-GPM

Item Number: 0124594
1 1
$14,177.75
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • 6 inch Lead Free Double Check Detector Backflow Preventer
  • Weight: 297.0 lb
  • 304 Stainless Steel Housing and Sleeve
  • Grooved Gear Operated Butterfly Valves with Tamper Switch
  • Patented Tri-Link Check Modules for Low Pressure Loss
  • Integrated Gallon Per Minute (GPM) Meter
  • Maximum Working Pressure: 175 PSI
  • Approved for Horizontal, Vertical up, and N Pattern Installation
  • UL Classified, FM Approved, ASSE 1048, NSF/ANSI 372 Certified

Description

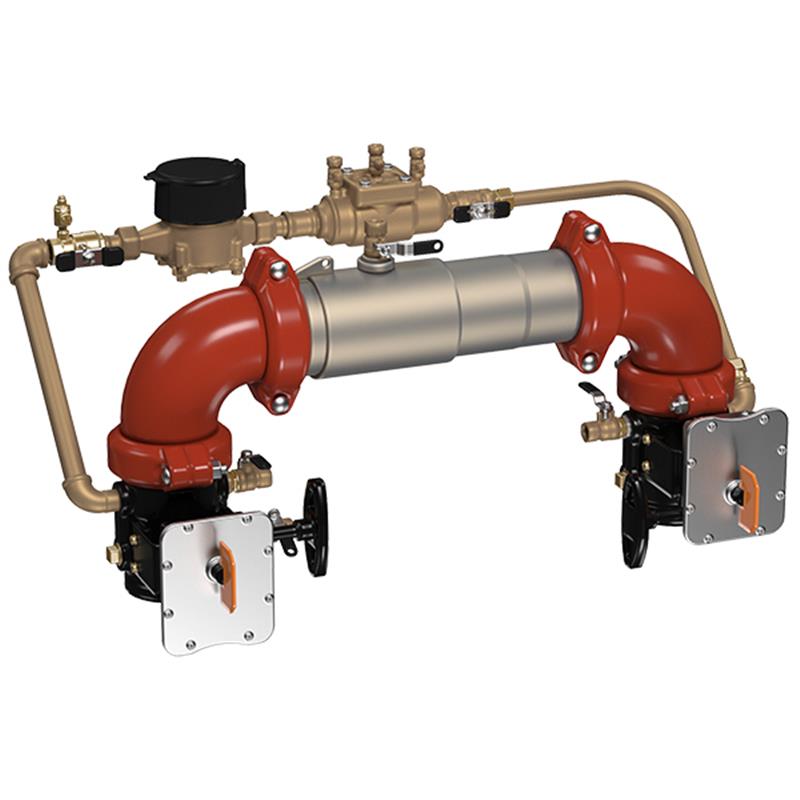

The Colt LFC300N-BFG is a 6-inch Lead Free Double Check Detector Backflow Preventer Assembly, essential for preventing non-potable water and pollutants from entering the potable water supply. Ideal for fire line sprinkler systems and non-health hazard applications, it features a durable 304 stainless steel housing, grooved gear-operated butterfly valves with tamper switches, and patented Tri-Link checks for low pressure loss. An integrated GPM meter monitors water usage and detects leaks. Its compact, lightweight design allows for versatile horizontal, vertical up, or N pattern installation. Certified by UL, FM, ASSE, and NSF.

Help Me Connect

Connections and Installation

  • This assembly features grooved end connections for straightforward installation into your pipeline system.
  • The design allows for flexible installation in horizontal, vertical up, or N pattern configurations, providing versatility for various site requirements.
  • The integrated GPM meter is connected to the bypass assembly with ASME/ANSI flanged end connections.
  • Consult local governing authorities and installation instructions for specific requirements.
View full details

Additional Details

The Colt LFC300N-BFG Lead Free 6 inch Double Check Detector Backflow Preventer Assembly is designed to prevent the reverse flow of non-potable water and pollutants from entering the potable water supply system.

This assembly is primarily used on fire line sprinkler systems and in other non-health hazard applications, also capable of monitoring unauthorized water use or underground leaks with its integrated meter.

Key Features

  • Lead Free construction ensures the wetted surface contains less than 0.25% lead by weight.
  • Extremely compact design is 70% lighter than traditional models, allowing for smaller vaults and enclosures.
  • Features a 304 (Schedule 40) stainless steel housing and sleeve for durability and corrosion resistance.
  • Includes grooved gear operated butterfly valves with tamper switch.
  • Equipped with patented Tri-Link check modules that offer lowest pressure loss and unmatched ease of serviceability.
  • Groove fittings allow for integral pipeline adjustment, simplifying installation and maintenance.
  • Comes with a gallon per minute (GPM) meter for detecting underground leaks and monitoring water usage.
  • Designed for N pattern installation, but also suitable for horizontal or vertical up configurations.
  • Features reversible elastomer check discs for extended service life.
  • A single access sleeve simplifies maintenance and servicing of internal components.
  • Approved by UL, FM, ASSE 1048, and NSF/ANSI 372.

NOTICE: The information provided is not a substitute for complete product installation and safety information or the experience of a trained product installer. Thoroughly read all installation instructions and product safety information before installing this product. Consult governing authorities for local installation requirements.

Specifications

  • Product Type: Double Check Detector Backflow Preventer Assembly
  • Brand: Colt
  • Model Series: LFC300N-BFG
  • Nominal Pipe Size: 6 inch
  • Lead Free: Yes (wetted surface contains less than 0.25% lead by weight)
  • Configuration: N Pattern (also Horizontal, Vertical up)

Materials

  • Housing & Sleeve: 304 (Schedule 40) Stainless Steel
  • Elastomers: EPDM, Silicone, Buna 'N'
  • Tri-Link Checks: Noryl®, Stainless Steel
  • Check Discs: Reversible Silicone or EPDM
  • Test Cocks: Lead Free* Bronze Body
  • Pins & Fasteners: 300 Series Stainless Steel
  • Springs: Stainless Steel

Performance

  • Maximum Working Pressure: 175 PSI (12.06 bar)
  • Temperature Range: 33°F - 110°F (5°C - 43°C)

Certifications & Approvals

  • Approved by: Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • Standard: AWWA C510-97
  • ASSE: 1048
  • CSA: B64.5
  • UL Classified
  • FM Approved
  • NSF Certified: NSF/ANSI 372

FAQs

What is the primary purpose of the Colt LFC300N-BFG backflow preventer?

Its primary purpose is to prevent the reverse flow of non-potable water and objectionable pollutants, but not toxic substances, from entering the potable water supply system. It is commonly used on fire line sprinkler systems.

Is this backflow preventer suitable for all types of water installations?

This assembly is designed for non-health hazard applications. While it prevents pollutants, it is not intended for situations where toxic substances could contaminate the potable water supply.

What type of connections does this 6-inch assembly use?

The main housing features grooved end connections for direct pipeline integration. The bypass assembly, including the GPM meter, uses ASME/ANSI flanged end connections.

What is the significance of the "Lead Free" designation?

The "Lead Free" designation indicates that the wetted surface of the product, which contacts consumable water, contains less than 0.25% lead by weight, complying with modern health and safety standards.

Can this backflow preventer be installed in different orientations?

Yes, the Colt LFC300N-BFG can be installed in horizontal, vertical up, or "N" pattern configurations, offering flexibility for various site-specific requirements.
