6 LFC500-OSY-C-FS

Item Number: F0124636
1 1
$16,004.76
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 6 inch
  • Weight: 439.0 lb
  • Lead Free: Yes
  • Housing & Sleeve Material: Type 304 Stainless Steel
  • Maximum Working Pressure: 175 psi
  • Flood Sensor: SentryPlus Alert® technology
  • Shutoff Valves: OSY (Outside Stem and Yoke)
  • Compact Design: Yes, 70% lighter
  • Metering: Cubic feet per minute meter included

Description

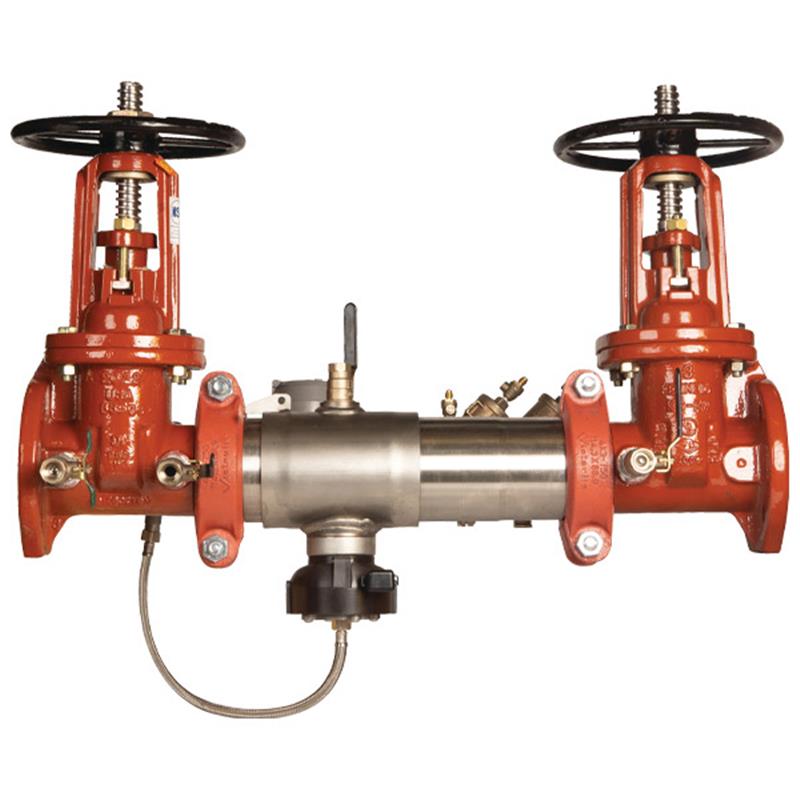

The 6 inch Colt LFC500 Lead Free Reduced Pressure Detector Assembly safeguards potable water systems from contamination by backsiphonage and backpressure, ideal for fire sprinkler systems. This compact unit features a durable Type 304 stainless steel body, OSY shutoff valves, and a bottom-mounted relief valve. A flood sensor with SentryPlus Alert® technology detects excessive discharges, communicating alerts via an add-on connection kit to BMS, cellular, Modbus, or Wi-Fi platforms. It includes a cubic feet per minute meter for leak detection and operates up to 175 psi within a 33°F to 110°F range. Item number F0124636.

Help Me Connect

The Colt LFC500 Reduced Pressure Detector Assembly is designed for installation in potable water systems, typically in health-hazard cross-connections like fire sprinkler systems. It is supplied with Outside Stem and Yoke (OSY) resilient seated gate valves for secure inlet and outlet connections. The integrated flood sensor requires an add-on connection kit to become active and communicate alerts. These kits allow for integration with various systems:

  • Building Management Systems (BMS)
  • Cellular Communication
  • Sensor Control Monitor for integration with BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi

This assembly provides grooved inlet and outlet gate connections for straightforward pipeline integration.

View full details

Additional Details

The 6 inch Colt LFC500 Lead Free Reduced Pressure Detector Assembly is designed to protect potable water systems from contamination due to backsiphonage and backpressure, particularly in fire protection applications. This assembly also monitors for unauthorized water use from the fire protection system and detects excessive water discharges from the relief valve.

Construction & Design

  • Features an extremely compact design and is 70% lighter than traditional designs.
  • The entire valve body and closure sleeve are manufactured from Type 304 (Schedule 40) stainless steel.
  • Includes two torsion spring check valves and drip tight shutoff valves.
  • Equipped with outside stem and yoke (OSY) resilient seated gate valves for reliable shutoff.
  • A corrosive resistant bottom-mounted pressure relief valve is included.
  • The bypass assembly comes with a cubic feet per minute meter for detecting underground leaks and unauthorized water use.
  • Patented link check design minimizes pressure loss.
  • Unmatched ease of serviceability with replaceable check disc rubber.

Flood Detection & Alerting

  • Contains a flood sensor with SentryPlus Alert® technology on the relief valve to detect continuous discharge.
  • When paired with an add-on sensor connection kit, the flood sensor is activated to relay alerts for potential flooding events.
  • Connection kit options allow for integration with Building Management Systems (BMS), cellular communication, and the Sensor Control Monitor.
  • The Sensor Control Monitor enables integration with BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi.
  • Notice: An add-on connection kit is required to activate the flood sensor for communication. Without it, the flood sensor is a passive component and will not communicate with any other device.

Specifications

General

  • Product Type: Reduced Pressure Detector Assembly
  • Size: 6 inch
  • Lead Free: Yes
  • Assembly: Modular, compact

Performance

  • Temperature Range: 33°F - 110°F (0.5°C – 43°C)
  • Maximum Working Pressure: 175 psi (12.1 bar)

Materials

  • Housing & Sleeve Material: Type 304 (Schedule 40) stainless steel
  • Elastomers: EPDM, silicone, Buna-N
  • Link Check Material: Noryl®, stainless steel
  • Check Disc Material: Reversible silicone or EPDM
  • Test Cock Material: Lead Free bronze body
  • Pins & Fasteners Material: 300 Series stainless steel
  • Springs Material: Stainless steel

Certificates & Approvals

  • Approved by Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • AWWA C511-97
  • ASSE 1047
  • CSA B64.4
  • cULus Classified
  • FM Approved
  • NSF Certified to NSF/ANSI 372

FAQs

What is the primary purpose of the Colt LFC500 backflow preventer?

The Colt LFC500 Lead Free Reduced Pressure Detector Assembly is designed to protect potable water systems from contamination caused by backsiphonage or backpressure, especially in health-hazard cross-connections like fire sprinkler systems.

Is this backflow preventer suitable for fire protection systems?

Yes, the LFC500 series is specifically used to monitor unauthorized use of water from the fire protection system and provides necessary protection against contamination.

How does the flood sensor function, and what is required to activate it?

The integrated flood sensor with SentryPlus Alert® technology detects excessive water discharges from the relief valve. To activate its communication features and relay alerts, an add-on sensor connection kit is required.

What materials are used in the construction of this assembly?

The housing and sleeve are made from Type 304 (Schedule 40) stainless steel. Elastomers include EPDM, silicone, and Buna-N, while test cocks are Lead Free bronze.

What is the maximum operating pressure and temperature range for this device?

This LFC500 assembly has a maximum working pressure of 175 psi (12.1 bar) and operates efficiently within a temperature range of 33°F - 110°F (0.5°C – 43°C).
