6 M300N-OSY-GPM

Item Number: 0191053
1 1
$15,101.25
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames

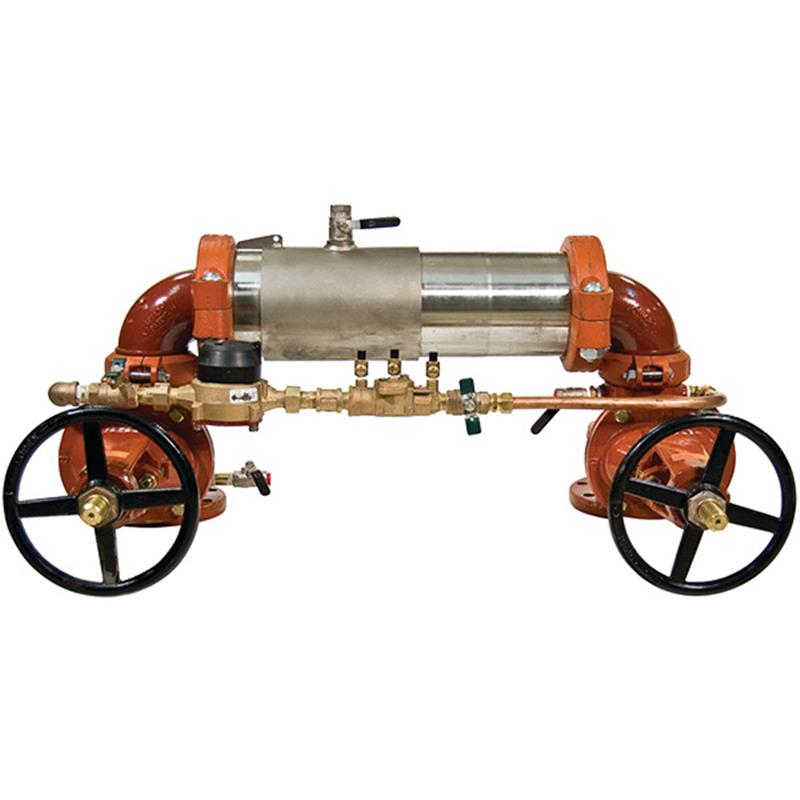

  • 6 inch Double Check Detector Backflow Preventer
  • Weight: 554.0 lb
  • Ames Maxim series with OSY Shutoffs
  • Stainless steel body for corrosion protection
  • Tri-Link check valves for lowest pressure loss
  • Includes Gallon Per Minute (GPM) meter
  • Maximum Working Pressure: 175 PSI
  • Compact modular design with N Pattern installation
  • Single access sleeve for easy maintenance

Description

The Ames Maxim 6 inch stainless steel double check detector backflow preventer assembly is engineered to prevent the reverse flow of non-potable water and fire protection substances into the potable water supply. Ideal for non-health hazard cross-connections, such as fire sprinkler systems, it features a durable stainless steel body, tri-link check valves for minimal pressure loss, and OSY gate shutoff valves. A built-in gallon per minute meter detects leaks and unauthorized water usage. Its compact, modular design with an N pattern installation ensures easy maintenance through a single access sleeve, fitting into smaller spaces while meeting national plumbing codes.

Help Me Connect

Installation Considerations

  • Designed for N pattern installation in accordance with the direction of the flow arrow on the assembly.
  • Requires adequate clearance around the valve for inspection, testing, and servicing; a 12 inch minimum clearance is required between the lower portion of the assembly and the floor or grade.
  • The valve should be protected from freezing.
  • Normal discharge and nuisance spitting can be accommodated by using an Ames air gap fitting and a fabricated indirect waste line.
  • Floor drains of the same size must be provided in case of excessive discharge.
View full details

Additional Details

This Ames Maxim 6 inch stainless steel double check detector backflow preventer assembly is designed to prevent the reverse flow of fire protection substances and non-potable water into the potable water supply. It protects against backsiphonage and backpressure in accordance with national plumbing codes and water authority requirements, making it ideal for non-health hazard cross-connections like fire sprinkler systems and service line entrances where contaminants may be present.

This compact and modular assembly features an N pattern installation, a single access sleeve for easy maintenance, and is furnished with a gallon per minute meter for leak detection and monitoring unauthorized water use.

Components

  • Stainless steel body for long-term corrosion protection and maximum strength
  • Tri-link check valves for lowest pressure loss
  • Outside Stem and Yoke (OSY) resilient seated gate valves for reliable shutoff
  • Four test cocks for easy testing and maintenance
  • Gallon per minute meter for leak detection and monitoring

Features

  • Compact modular design allows for smaller vaults and enclosures
  • Single access sleeve for easy maintenance
  • Replaceable check disc rubber for extended service life
  • Tri-link check valve assembly provides the lowest pressure loss

NOTICE: The information contained herein is not intended to replace the full product installation and safety information available or the experience of a trained product installer. You are required to thoroughly read all installation instructions and product safety information before beginning the installation of this product.

Specifications

General

  • Product Type: Double Check Detector Backflow Preventer Assembly
  • Brand: Ames Maxim
  • Size: 6 inch
  • Configuration: N Pattern
  • Housing Material: Stainless Steel
  • Shutoff Valves: Outside Stem and Yoke (OSY) Resilient Seated Gate Valves
  • Check Valves: Tri-Link Check Valves
  • Meter: Gallon Per Minute (GPM) Meter
  • Maximum Working Pressure: 175 PSI (12.06 bar)

Dimensions (Nominal for 6 inch)

  • Dimension A: 10.5 inches (267 mm)
  • Dimension B: 5.25 inches (133 mm)
  • Dimension C: 12 inches (305 mm)
  • Dimension D: 19 inches (483 mm)
  • Dimension E: 5.25 inches (133 mm)
  • Dimension F: 6.25 inches (159 mm)
  • Standard Tap Size: 3/4 inch

Certificates & Approvals

  • Meets: National plumbing codes and water authority requirements

FAQs

What is the primary purpose of this backflow preventer assembly?

This assembly is designed to prevent the reverse flow of non-potable water and fire protection substances from backsiphonage or backpressure into the potable water supply, protecting against contamination in non-health hazard cross-connections.

What type of shutoff valves does this assembly use?

This Ames Maxim backflow preventer features Outside Stem and Yoke (OSY) resilient seated gate valves, providing reliable shutoff capabilities for the system.

What is the maximum working pressure for this unit?

The maximum working pressure for this 6 inch double check detector backflow preventer assembly is 175 PSI (12.06 bar).

Does this backflow preventer include a meter?

Yes, it is furnished with a gallon per minute (GPM) meter. This meter is useful for detecting underground leaks and monitoring unauthorized water usage.

What are the benefits of the stainless steel construction?

The stainless steel body provides long-term corrosion protection and maximum strength, contributing to the overall durability and reliability of the backflow preventer assembly.
