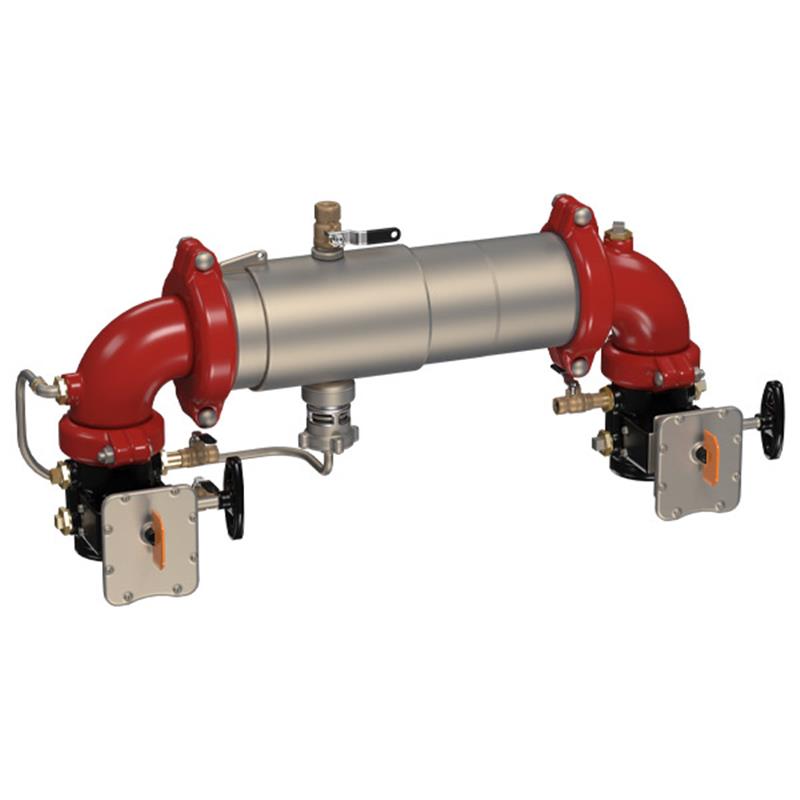

This Maxim™ 6 inch lead free reduced pressure zone backflow preventer assembly is designed to prevent the reverse flow of fire protection substances and water of non-potable quality from being pumped or siphoned into the potable water supply due to backsiphonage and/or backpressure in accordance with national plumbing codes and water authority requirements.
This extremely compact and lighter than traditional designed assembly is approved for horizontal N pattern installation as long as the backflow assembly is installed in accordance with the direction of the flow arrow. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards and from other contaminants found at the service line entrance.
Construction & Components
- Consists of a stainless steel body with a quick access sleeve
-
Torsion spring check modules for ease of serviceability
-
Grooved gear operated butterfly valves with tamper switch
-
Test cocks included
-
Bottom mounted pressure relief valve made of stainless steel
- Housing and sleeve material: 304 (Schedule 40) stainless steel
- Replaceable check disc rubber
Key Features
- Extremely compact design allows for small enclosures
-
70% lighter than traditional designs
-
Groove couplings for easy installation and pipe alignment
-
Link check modules provide lowest pressure loss
- Drip tight shutoff valves
The information contained herein is not intended to replace the full product installation and safety information available or the experience of a trained product installer. You are required to thoroughly read all installation instructions and product safety information before beginning the installation of this product.
