Shutoff Valves: Grooved Gear Operated Butterfly with Tamper Switch
Installation: Horizontal Z Pattern
Weight: 70% lighter than traditional designs
Check Modules: Link Type, Torsion Spring
Relief Valve: Bottom Mounted Stainless Steel
Use: Prevents backsiphonage and backpressure
Description

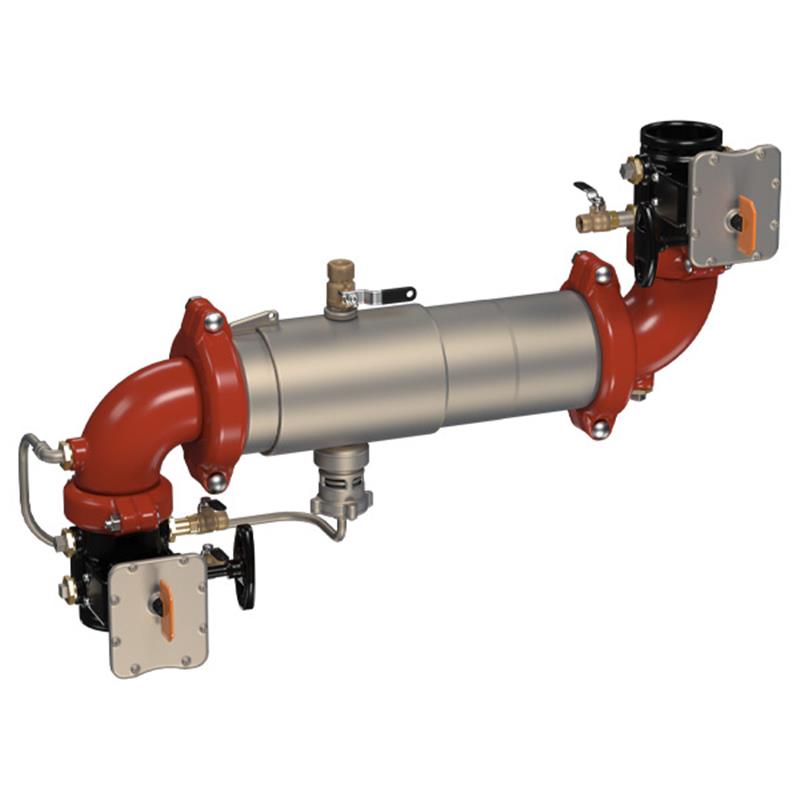

The Ames Fire & Waterworks Maxim™ 6 inch reduced pressure zone backflow preventer assembly (SKU 0191109) protects potable water supplies from contamination due to backsiphonage or backpressure from non-potable sources, including fire protection substances. Featuring a durable 304 (Schedule 40) stainless steel body and sleeve, grooved gear operated butterfly shutoff valves with tamper switches, and link check modules, this unit boasts an extremely compact design and is 70% lighter than traditional assemblies. It is approved for horizontal Z pattern installation, ideal for continuous pressure piping applications and identified health hazard cross-connections.
Help Me Connect
Installation Notes
This assembly is approved for horizontal Z pattern installation, provided it is installed in accordance with the direction of the flow arrow.
Requires adequate clearance around the valve for inspection, testing, and servicing, with a 12-inch minimum clearance between the lower portion of the assembly and the floor or grade.
Protection from freezing is required to prevent damage.
Normal discharge and nuisance spitting are accommodated by using an Ames air gap fitting and a fabricated indirect waste line.
Floor drains of the same size must be provided in case of excessive discharge.
Groove couplings facilitate easy installation and pipe alignment.
This Maxim™ 6 inch reduced pressure zone backflow preventer assembly is designed to prevent the reverse flow of fire protection substances and water of non-potable quality from being pumped or siphoned into the potable water supply due to backsiphonage and/or backpressure. It is approved for horizontal Z pattern installation in accordance with national plumbing codes and water authority requirements.
Key Features
Extremely compact design allows for small enclosures to be used.
Approximately 70 percent lighter than traditional backflow preventer designs.
Approved for horizontal Z pattern installation, provided the assembly is installed in accordance with the direction of the flow arrow.
Ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards or other contaminants at the service line entrance.
Link check modules provide the lowest pressure loss for efficient system operation.
Features drip tight shutoff valves for reliable performance.
Components
Durable 304 (Schedule 40) stainless steel housing and sleeve.
Torsion spring check modules for ease of serviceability.
Grooved gear operated butterfly valves, each equipped with a tamper switch.
Includes test cocks for maintenance and verification.
A bottom mounted stainless steel relief valve is integrated into the design.
Features easily replaceable check disc rubber.
The information contained herein is not intended to replace the full product installation and safety information available or the experience of a trained product installer. You are required to thoroughly read all installation instructions and product safety information before beginning the installation of this product.
Specifications
Assembly Type: Reduced Pressure Zone Backflow Preventer Assembly
Shutoff Valves: Grooved Gear Operated Butterfly Valves with Tamper Switch
Check Modules: Torsion Spring, Link Type
Relief Valve: Bottom Mounted Stainless Steel
Installation Pattern: Z Pattern
Installation Orientation: Horizontal
Certificates & Approvals
Complies with national plumbing codes and water authority requirements.
FAQs
What is the primary function of this backflow preventer?
This backflow preventer is designed to prevent the reverse flow of fire protection substances and non-potable water into the potable water supply, protecting against contamination from backsiphonage and backpressure.
What materials are used for the main body and sleeve?
The housing and sleeve of this backflow preventer assembly are constructed from durable 304 (Schedule 40) stainless steel, ensuring robust performance and corrosion resistance.
Is this assembly suitable for vertical installation?
No, this specific assembly is approved for horizontal Z pattern installation only. It must be installed in accordance with the direction of the flow arrow for proper operation.
What kind of shutoff valves are included with this unit?
The assembly includes grooved gear operated butterfly shutoff valves. These valves are also equipped with tamper switches for added security and monitoring.
Does this backflow preventer offer a weight advantage?
Yes, this Maxim™ backflow preventer features an extremely compact design and is approximately 70% lighter than traditional backflow preventer assemblies of a similar size, simplifying installation.
