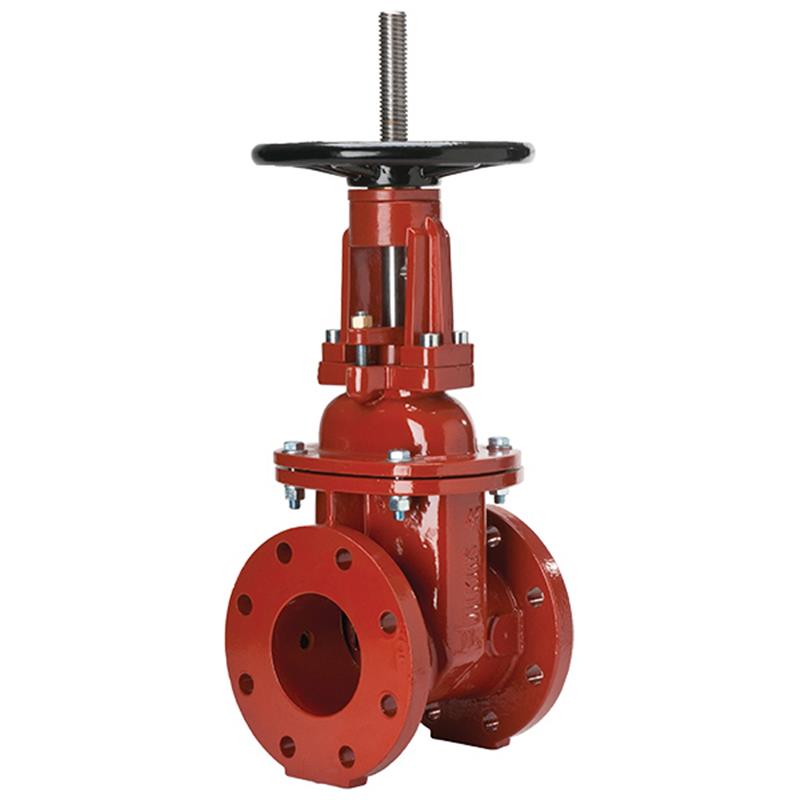

6 OSY GATE VALVE, GRV X FLG

Item Number: 6-48OSYGXF
1 1
$3,885.34
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Wilkins
  • 6 inch gate valve
  • Grooved by flanged end connections
  • Outside Stem and Yoke (OS&Y) for visual indication
  • Epoxy coated ductile iron body
  • Stainless steel internals and stem
  • Maximum working water pressure: 250 psi
  • Suitable for fire sprinkler systems and potable water lines
  • AWWA Compliant C515, C-550; IAPMO® Listed; UL® Listed

Description

The 6-inch Zurn Wilkins 48OS&YGXF OS&Y Gate Valve with grooved by flanged connections is engineered for reliable shut-off in fire sprinkler systems. This resilient wedge gate valve features an Outside Stem and Yoke (OS&Y) design, providing clear visual confirmation of the valve's open or closed state. Constructed with an epoxy-coated ductile iron body and stainless steel internals, it offers excellent corrosion resistance. It handles a maximum working water pressure of 250 psi and a temperature of 140°F. Certified by AWWA, IAPMO, and UL, it ensures compliance for demanding waterworks and fire protection applications. Item number 6-48OSYGXF.

Help Me Connect

This 6 inch gate valve is configured with distinct end connections to accommodate various pipeline systems: one side features a grooved connection, and the other side features a flanged connection. This dual-connection design provides versatility for installation.

  • The grooved end is designed to be connected with grooved piping systems, allowing for quick assembly using mechanical couplings and gaskets. This type of connection is common in fire protection systems due to its ease of installation and maintenance.
  • The flanged end provides a robust, bolted connection to other flanged components, such as pumps, tanks, or other valves, adhering to standard flange dimensions. This ensures a secure and leak-tight seal within the pipeline.

The valve is suitable for integration into fire sprinkler systems, potable water lines, and other waterworks applications, functioning effectively as a stand-alone shut-off valve or as part of a larger backflow prevention assembly.

View full details

Additional Details

The 6 inch Zurn Wilkins 48OS&YGXF Gate Valve with grooved by flanged end connections is designed to provide a visual indication of whether a valve is in the open or closed position, making it ideal for fire sprinkler system applications.

This resilient wedge gate valve features durable construction and internal components built for reliable performance.

Features

  • Equipped with an Outside Stem and Yoke (OS&Y) for clear visual status of valve position.
  • Constructed with an epoxy coated ductile iron body for enhanced corrosion resistance.
  • Includes stainless steel internals and stem for durability and long service life.
  • Suitable for use on potable water lines, irrigation systems, and waterworks connection applications.
  • Can be used as a stand-alone product or in conjunction with Wilkins Backflow Preventers.

Specifications

  • Size: 6 inch
  • End Connections: Grooved by Flanged (GRV x FLG)
  • Valve Type: Resilient Wedge Gate Valve, OS&Y
  • Body Material: Epoxy Coated Ductile Iron
  • Internals Material: Stainless Steel
  • Stem Material: Stainless Steel
  • Maximum Working Water Pressure: 250 psi
  • Maximum Working Water Temperature: 140°F
  • Hydrostatic Test Pressure: 500 psi

Certificates & Approvals

  • Low-lead law compliant
  • AWWA Compliant C515
  • AWWA Compliant C-550
  • IAPMO® Listed
  • UL® Listed

FAQs

What are the primary applications for this 6 inch gate valve?

This 6 inch gate valve is primarily utilized on fire sprinkler system applications, potable water lines, irrigation systems, and waterworks connection applications. It can be used as a stand-alone shut-off valve or with backflow preventers.

What does 'OS&Y' mean and what is its benefit?

OS&Y stands for Outside Stem and Yoke. This design provides a clear visual indication of whether the valve is in the open or closed position, which is crucial for safety and system monitoring, especially in fire protection systems.

What are the maximum pressure and temperature ratings for this valve?

This gate valve has a maximum working water pressure of 250 psi and a maximum working water temperature of 140°F. It can also withstand a hydrostatic test pressure of 500 psi.

What materials are used in the construction of this gate valve?

The valve features an epoxy coated ductile iron body for corrosion resistance. Its internal components, including the resilient wedge and stem, are made from stainless steel for durability and reliable operation.

What certifications and approvals does this valve hold?

This 6 inch gate valve is low-lead law compliant, AWWA Compliant C515 and C-550, IAPMO® Listed, and UL® Listed, ensuring it meets recognized industry standards for quality and safety.
