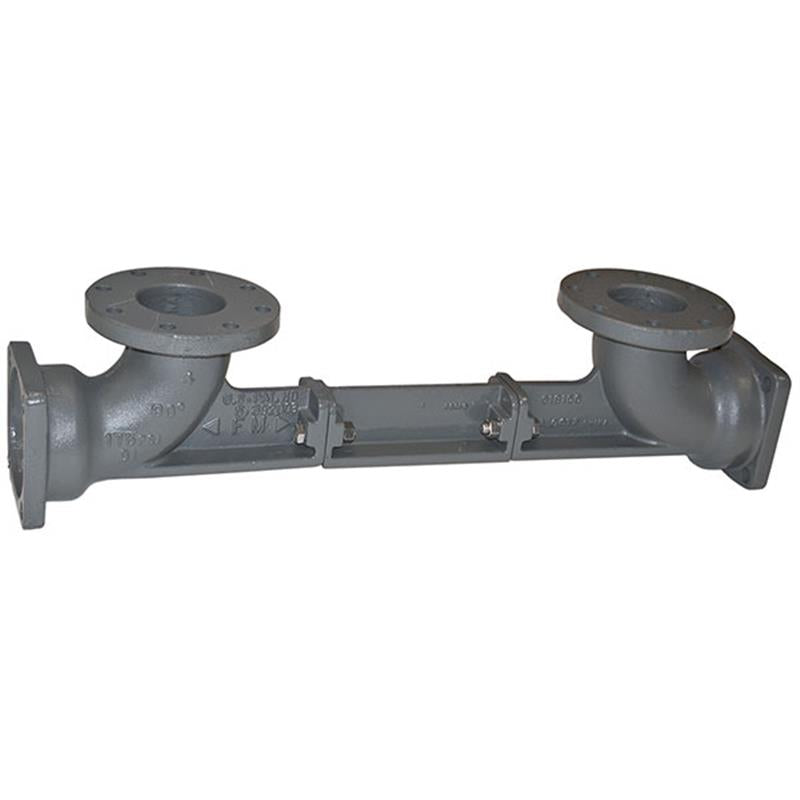

6 WVS-C Flange x Mechanical Joint

Item Number: 0107217
1 1
$2,355.76
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Watts
  • 6 inch (150mm) size
  • Weight: 282.0 lb
  • Flange by Mechanical Joint connections
  • Ductile iron body with fusion epoxy coating
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 32°F to 140°F
  • Eliminates need for thrust blocks
  • Corrosion resistant fusion epoxy coated
  • Lead content: Less than 0.25% by weight (wetted surfaces)

Description

This 6 inch Watts Series WVS valve setter features durable ductile iron construction with a protective fusion epoxy coating, making it corrosion resistant. Designed for "N" series backflow prevention assemblies, it provides a flange by mechanical joint connection for flexible installation. The integral ductile iron support eliminates the need for external thrust blocks, simplifying setup. It operates up to 175 psi and withstands temperatures from 32°F to 140°F, ensuring reliable performance in commercial applications. Its wetted surfaces contain less than 0.25% lead by weight.

Help Me Connect

The Watts Series WVS valve setter is specifically designed to augment the installation of Watts SilverEagle™ N-Shape Assemblies. This 6 inch model features a flange connection on one end and a mechanical joint connection on the other, allowing for flexible integration into piping systems for commercial applications.

  • The flange connection is compliant with ANSI B16.1 Class 125 (Standard) and ANSI AWWA C153 A21.53-88 specifications.
  • The mechanical joint connection provides robust attachment to corresponding pipework.
  • Mechanical joint restraint devices may be employed at pipe connections based on local conditions.
  • The integral ductile iron support helps manage downstream thrust, potentially eliminating the need for traditional thrust blocks.
View full details

Additional Details

The Watts Series WVS 6 inch valve setter with flange by mechanical joint connections is designed to augment the installation of Watts SilverEagle™ N-Shape Assemblies.

This valve setter is constructed of fusion epoxy coated ductile iron, featuring an integral ductile iron support between elbows to transfer thrust downstream, which eliminates the need for thrust block requirements at the point of installation.

Features

  • Corrosion resistant fusion epoxy coating applied internally and externally for enhanced durability.
  • Eliminates the requirement for thrust blocks or other restraints at the point of installation.
  • Contains less than 0.25% lead by weight in wetted surfaces for consumable water applications.

Specifications

General

  • Product Type: Valve Setter
  • Size: 6 inch (150mm)
  • Model: MJxFL (Mechanical Joint x Flange)
  • Connection Type: Flange by Mechanical Joint
  • Application: Used with "N" series backflow prevention valves

Materials

  • Body Material: Ductile iron A536 GR 65-45-12
  • Coating: Fusion epoxy coated internal and external AWWA C550
  • Bolts & Nuts: Stainless steel

Performance

  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Temperature Range: 32°F to 140°F (0°C to 60°C)

Certificates & Approvals

  • Flanges: ANSI B16.1 Class 125 (Standard)
  • Flanges: ANSI AWWA C153 A21.53-88

FAQs

What is the primary purpose of the Watts Series WVS valve setter?

The Watts Series WVS valve setter is designed to augment the installation of "N" series backflow prevention assemblies, providing structural support and eliminating the need for external thrust blocks.

What are the connection types for this 6 inch valve setter?

This specific model features a flange connection on one end and a mechanical joint connection on the other for versatile integration.

What materials are used in the construction of this valve setter?

The body is constructed from ductile iron (A536 GR 65-45-12) with internal and external fusion epoxy coating (AWWA C550), and it utilizes stainless steel bolts and nuts.

What are the maximum operating pressure and temperature ratings for this valve setter?

It has a maximum working pressure of 175 psi (12.1 bar) and an operating temperature range of 32°F to 140°F (0°C to 60°C).

Is this valve setter suitable for potable water applications concerning lead content?

Yes, the wetted surfaces of this product contacted by consumable water contain less than 0.25% of lead by weight, making it suitable for such applications.
