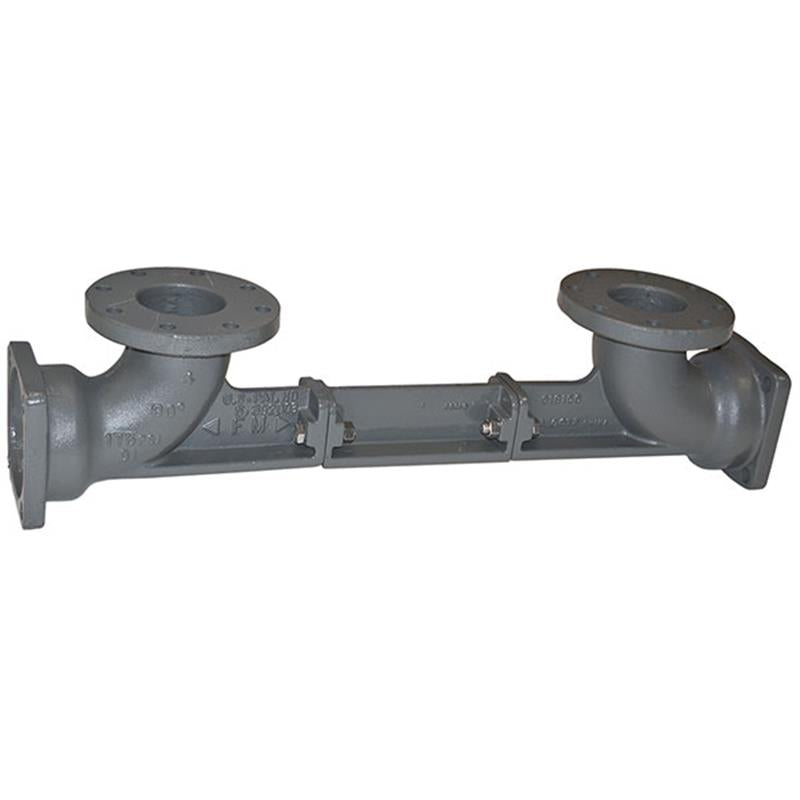

6 WVS-C Flange x Mechanical Joint RP BFG

Item Number: 0107228
1 1
$2,591.24
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Watts
  • Nominal Size: 6 inch
  • Weight: 282.0 lb
  • Connection Type: Flange x Mechanical Joint
  • Body Material: Ductile Iron A536 GR 65-45-12
  • Corrosion Resistant: Fusion epoxy coated
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 32°F to 140°F
  • Eliminates thrust block requirements
  • For use with Watts 957N BFG and 957N RPDA BFG Series

Description

The Watts 6 inch WVS-C Valve Setter with Flange by Mechanical Joint connections is specifically designed to augment the installation of Watts N-shape 957N BFG and 957N RPDA BFG backflow prevention assemblies. Constructed from fusion epoxy coated ductile iron, this valve setter provides an integral ductile iron support that transfers thrust downstream, eliminating the need for external thrust blocks. It features corrosion-resistant coating and operates up to 175 psi from 32°F to 140°F, ensuring durable and reliable performance in commercial applications. Item number 0107228.
View full details

Additional Details

This 6 inch ductile iron valve setter with flange by mechanical joint connections is designed to augment the installation of the N-shape 957N BFG and 957N RPDA BFG backflow preventer assemblies. It is constructed of fusion epoxy coated ductile iron, featuring an integral ductile iron support between elbows that transfers thrust downstream, thus eliminating the need for thrust block requirements.

Features

  • Corrosion resistant fusion epoxy coated internally and externally.
  • Eliminates the need for thrust blocks or other restraints at the point of installation.
  • Designed to augment installation of specific N-shape backflow preventer assemblies.

Materials

  • Body: Ductile iron A536 GR 65-45-12
  • Coating: Fusion epoxy coated internal and external (AWWA C550)
  • Bolts & Nuts: Stainless steel (Note: Mechanical joint accessories, flange bolts and gaskets are not included except for center joints).

Specifications

  • Body Material: Ductile iron A536 GR 65-45-12
  • Coating: Fusion epoxy coated internal and external (AWWA C550)
  • Nominal Size: 6 inch (150mm)
  • Connection Type: Flange by Mechanical Joint
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Temperature Range: 32°F to 140°F (0°C to 60°C)
  • Bolts & Nuts Material: Stainless steel

Certificates & Approvals

  • Flanges: ANSI B16.1 Class 125 (Standard)
  • Flanges: ANSI AWWA C153 A21.53-105

FAQs

What is the primary purpose of the 6 inch WVS-C Valve Setter?

The primary purpose of the 6 inch WVS-C Valve Setter is to augment the installation of Watts N-shape 957N BFG and 957N RPDA BFG backflow prevention assemblies, providing structural support and eliminating the need for thrust blocks.

What type of connections does this valve setter have?

This specific 6 inch valve setter features Flange by Mechanical Joint connections, designed to integrate seamlessly with compatible backflow prevention assemblies.

What material is the valve setter constructed from?

The valve setter is constructed from ductile iron (A536 GR 65-45-12) with a fusion epoxy coating applied both internally and externally, meeting AWWA C550 standards for corrosion resistance.

What are the pressure and temperature limits for this valve setter?

This valve setter has a maximum working pressure of 175 psi (12.1 bar) and can operate within a temperature range of 32°F to 140°F (0°C to 60°C).

Does this valve setter require additional thrust blocks for installation?

No, one of the key features of this valve setter is its integral ductile iron support between elbows, which transfers thrust downstream and eliminates the need for thrust blocks or other restraints at the point of installation.
