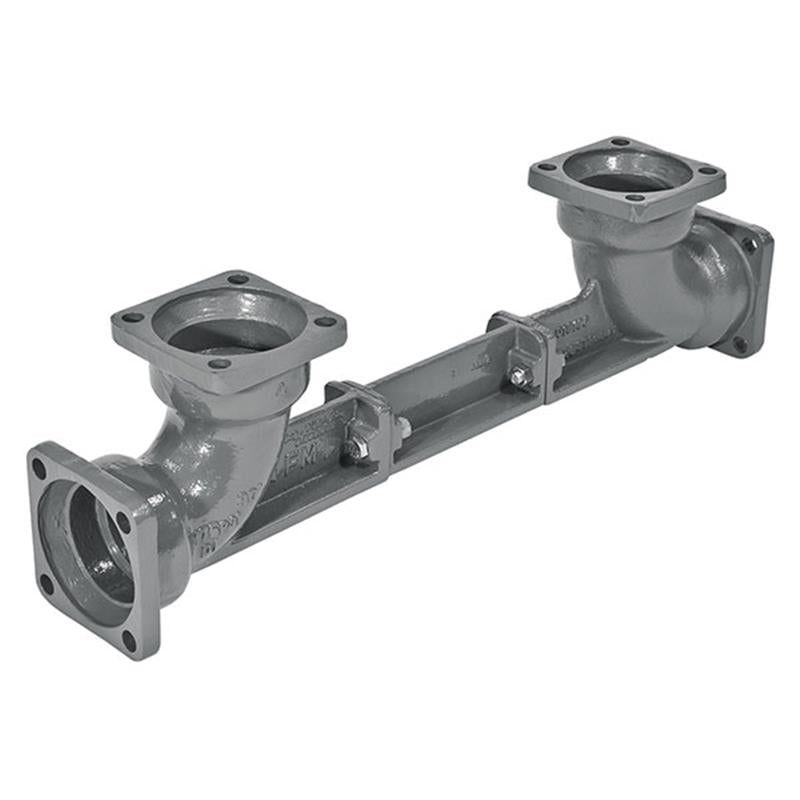

6 WVS-C Mechanical Joint x Mechanical Joint

Item Number: 0107222
1 1
$2,273.85
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Watts
  • Size: 6 inch
  • Weight: 282.0 lb
  • Connection Type: Mechanical Joint x Mechanical Joint
  • Body Material: Ductile Iron
  • Coating: Fusion Epoxy Coated
  • Maximum Working Pressure: 175 PSI
  • Temperature Range: 32°F to 140°F
  • Eliminates Thrust Blocks
  • Integral Ductile Iron Support

Description

This 6 inch ductile iron valve setter with mechanical joint by mechanical joint connections is designed to simplify the installation of N-shape backflow prevention valves. Constructed from fusion epoxy coated ductile iron, it offers superior corrosion resistance and eliminates the need for thrust blocks or other restraints at the point of installation. The integral ductile iron support transfers thrust downstream, ensuring stability. It features a maximum working pressure of 175 psi and a temperature range of 32°F to 140°F.

Help Me Connect

Compatibility and Connection Information

  • This valve setter is specifically designed to augment the installation of Watts SilverEagle™ N-Shape backflow prevention assemblies.
  • The connections are Mechanical Joint by Mechanical Joint, requiring appropriate mechanical joint restraint devices for pipe connections, which may vary depending on local conditions.
  • Please note that mechanical joint accessories, flange bolts, and gaskets are not included with this valve setter, except for center joints.
View full details

Additional Details

This 6 inch ductile iron valve setter with mechanical joint by mechanical joint connections is designed to augment the installation of the N-shape backflow prevention valves.

Features

  • Corrosion resistant fusion epoxy coated for enhanced durability and longevity.
  • Eliminates the need for thrust blocks or other restraints at the point of installation, simplifying setup.
  • Constructed with integral ductile iron support between elbows to transfer thrust downstream, enhancing stability.

Specifications

  • Size: 6 inch (150mm)
  • Connection Type: Mechanical Joint x Mechanical Joint
  • Body Material: Ductile Iron A536 GR 65-45-12
  • Coating: Fusion epoxy coated internal and external AWWA C550
  • Bolts & Nuts: Stainless Steel
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Temperature Range: 32°F to 140°F (0°C to 60°C)

Certificates & Approvals

  • Flanges: ANSI B16.1 Class 125 (Standard)
  • Flanges: ANSI AWWA C153 A21.53-88

FAQs

What is the primary purpose of this valve setter?

This valve setter is designed to augment the installation of N-shape backflow prevention valves by providing structural support and eliminating the need for thrust blocks during setup.

What are the connection types for this valve setter?

This specific model features Mechanical Joint by Mechanical Joint connections on both ends, allowing for secure pipe integration.

What material is the valve setter constructed from?

The valve setter is constructed from durable ductile iron (A536 GR 65-45-12) and is internally and externally coated with fusion epoxy (AWWA C550) for enhanced corrosion resistance.

What is the maximum operating pressure and temperature?

It has a maximum working pressure of 175 psi (12.1 bar) and can safely operate within a temperature range of 32°F to 140°F (0°C to 60°C).

Does this valve setter require thrust blocks?

No, a key design feature of this valve setter is that it eliminates the need for thrust blocks or other restraints at the point of installation, thanks to its integral ductile iron support.
