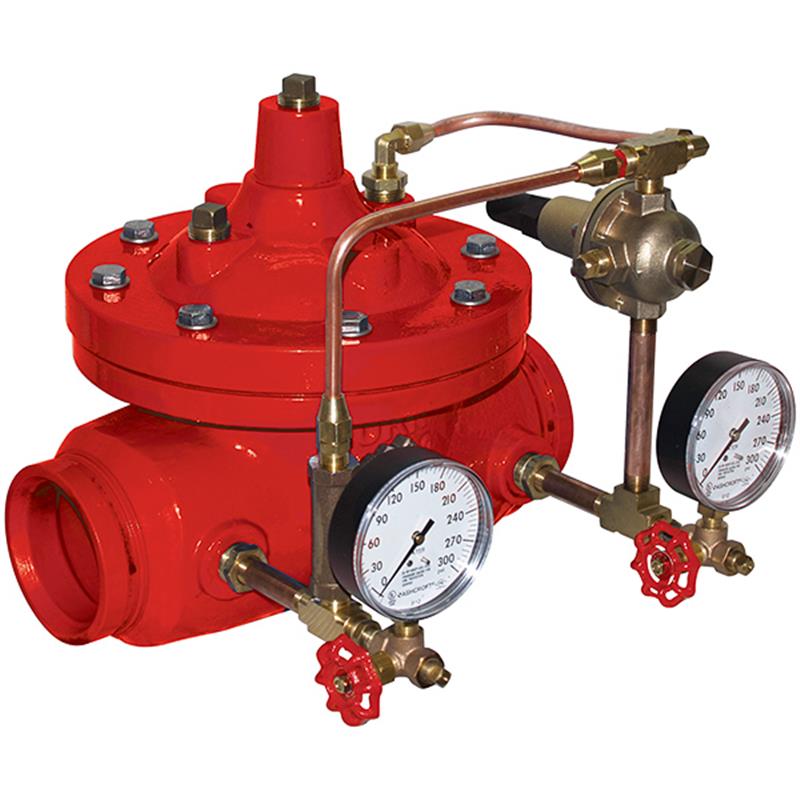

The Zurn Wilkins 6-inch ZW209FPX is a pilot-operated pressure reducing valve specifically designed for fire suppression systems. It ensures stable downstream pressure by modulating the main valve, automatically sealing shut once the pilot setting is reached, preventing downstream damage. Constructed from ductile iron with internal and external epoxy coating, this valve offers superior corrosion resistance and is FDA approved. It comes standard with isolation valves and pressure gauges for easy maintenance and is certified to NSF/ANSI/CAN 61 and ANSI/AWWA C530 standards. This valve features ANSI Class 150 flanged connections.
Help Me Connect
Connections
The 6" ZW209FPX valve is designed with ANSI Class 150 flanged connections.
It will directly connect to existing piping systems that also utilize 6-inch ANSI Class 150 flanges.
Ensure proper alignment and gasketing when installing into your fire suppression system to maintain a secure, leak-free connection.
The 6" ZW209FPX Pressure Reducing Valve is a pilot-operated valve designed for fire suppression systems, ensuring stable downstream pressure even with high flow rates. Its reactive pilot assembly allows the main valve to modulate between closed and open for a constant downstream pressure and automatically seals shut upon reaching the pilot setting to prevent downstream damage.
Construction & Features
Features internal and external epoxy coating for enhanced corrosion resistance, suitable for FDA Approved applications.
Comes standard with isolation valves and pressure gauges for simplified maintenance and repairs.
Utilizes a "Wye" Type Strainer for robust filtration.
Equipped with an Opening Speed Control (for sizes 1 1/4" - 4").
Materials
Main Valve Body & Bonnet: Ductile Iron ASTM A536
Disc Guide, Seat, & Stem: Stainless Steel
Disc: Buna-N Rubber
Diaphragm: Nylon Reinforced Buna-N
The optional closing speed control on this valve should always be open at least three (3) turns off its seat.
Specifications
Valve Type: Pilot Operated Pressure Reducing Valve
Body Material: Ductile Iron ASTM A536
Bonnet Material: Ductile Iron ASTM A536
Disc Guide Material: Stainless Steel
Seat Material: Stainless Steel
Disc Material: Buna-N Rubber
Diaphragm Material: Nylon Reinforced Buna-N
Stem Material: Stainless Steel
Spring Material: Stainless Steel
End Connection Type: ANSI Class 150 Flanged
Nominal Size: 6 inch
Inlet Pressure Rating: 250 psi (for Class 150 Flange)
Minimum Inlet Pressure: 10 PSI
Pilot Spring Range: 15-120 psi
Temperature Rating: Water 33°F to 140°F
Coating: Epoxy Coated, FDA Approved
Certificates & Approvals
ANSI/AWWA C530
NSF/ANSI/CAN 61* (0.25% MAX. WEIGHTED AVERAGE LEAD CONTENT)
FAQs
What is the primary application of the ZW209FPX valve?
The ZW209FPX pressure reducing valve is specifically designed for use in fire suppression systems where a consistent and stable downstream pressure is critical, even under high flow conditions.
What type of connections does this valve utilize?
This 6-inch ZW209FPX model features ANSI Class 150 flanged connections, allowing for secure and versatile installation into compatible flanged piping systems.
What is the construction material of the main valve body?
The main valve body and bonnet are constructed from durable Ductile Iron ASTM A536, providing robust performance and longevity in demanding applications.
What are the operating pressure and temperature limits for this valve?
The valve has a minimum inlet pressure requirement of 10 PSI, an inlet pressure rating of 250 psi for Class 150 flanged connections, and a pilot spring range of 15-120 psi. It is rated for water temperatures from 33°F to 140°F.
Does this valve have any certifications for water quality?
Yes, the ZW209FPX valve meets the requirements of NSF/ANSI/CAN 61, indicating compliance with standards for components used in drinking water systems, and is also ANSI/AWWA C530 compliant.
