6000HMB-GPM

Item Number: 0690618
1 1
$13,494.00
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Portable hydrant backflow preventer with meter housing
  • Weight: 120.0 lb
  • Typical Operating Range: 5 – 660 GPM
  • Maximum Operating Pressure: 150 PSI
  • Standard Hose Coupling: 2 1/2"-7" NST threads
  • Body Material: Heat treated aluminum alloy/stainless-steel
  • Weight: 66 lbs.
  • Meets AWWA C701 meter requirements
  • Includes stainless steel kicker bar for support

Description

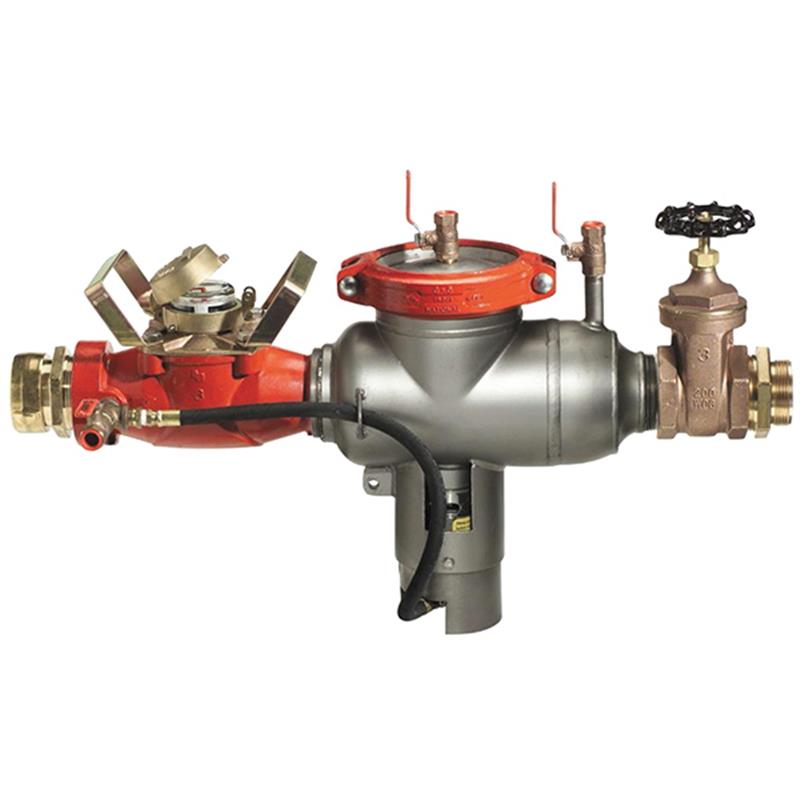

The AMES 6000HMB-GPM Portable Hydrant Backflow Preventer with Meter Housing is engineered to protect drinking water supplies from dangerous cross-connections at temporary installations like fire hydrants. It accurately measures water flow from 5 to 660 GPM, ideal for non-potable service applications such as irrigation or firelines. Constructed from heat-treated aluminum alloy and 300 Series stainless steel for corrosion resistance, this 66 lb. unit includes a 2 1/2"-7 NST fire hose swivel coupling on the inlet and meets AWWA C701 meter requirements. An in-line flow restrictor and heavy-duty relief valve cover enhance durability and protection against surges and vandalism.

Help Me Connect

The AMES 6000HMB Portable Hydrant Backflow Preventer is supplied with a 2 1/2"-7 NST fire hose swivel coupling on the inlet. This coupling is designed for connection to standard fire hydrant outlets. Ensure your hose and other equipment are compatible with this NST thread type for proper installation.

View full details

Additional Details

The AMES Series 6000HMB Portable Hydrant Backflow Preventer with Meter Housing is designed to protect drinking water supplies from dangerous cross-connections during temporary water service from fire hydrants or other non-permanent installations. This unit accurately measures water flow while preventing contamination and reverse flow where a cross-connection possibility exists.

Primary Use

  • Protects drinking water supplies from cross-connections in non-potable applications such as irrigation, fireline, or industrial processing.
  • Ideal for use with existing hydrant meter hookups for temporary water service.

Features

  • Designed to retrofit backflow protection onto fire hydrants used for temporary water service.
  • Outlet gate valve opens and closes slowly to prevent water surges.
  • Heavy duty relief valve cover prevents vandalism and protects the valve during transport.
  • In-line flow restrictor protects the meter measuring element and backflow preventer components from damage due to excessive flow.
  • Includes a stainless steel kicker bar for support.
  • Features the strongest double-walled stainless steel inlet strainer.
  • Backflow preventer manufactured from 300 Series stainless steel for corrosion resistance.
  • Internal parts are serviceable in line from the top of the unit.
  • Accurately measures flow and protects the water supply from possible contamination.

It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing, consult your local water authority, building, and plumbing codes.

Specifications

Performance

  • Typical Operating Range (100%±1.5%): 5 – 660 GPM
  • Maximum Continuous Flow: 450 GPM
  • Maximum Intermittent Flow: 660 GPM
  • Typical Low Flow (Min. 95%): 4 GPM
  • Pressure Loss at Maximum: 37 psi @ 450 GPM
  • Continuous Operation Pressure Loss: 23 psi @ 350 GPM
  • Maximum Operating Pressure: 150 psi (10 bar)
  • Flow Restriction: Limits flow to 660 GPM at 85 psi system pressure

Connections

  • Standard Hose Coupling: 2 1/2"-7" NST threads

Register Details

  • Register Type: Straight reading, permanently sealed magnetic drive standard
  • Registration: 100,000,000 Gallons
  • Registration per sweep hand revolution: 100 Gallons

Materials

  • Housing: Heat treated aluminum alloy/stainless-steel
  • Nose Cone and Straightening Vanes: Thermoplastic
  • Rotor: Thermoplastic
  • Rotor Radial Bearings: Lubricated Thermoplastic
  • Rotor Thrust Bearings: Sapphire Jewels
  • Rotor Bearing Pivots: Passivated 316 Stainless Steel
  • Calibration Mechanism: Stainless Steel and Thermoplastic
  • Flow Restriction Orifice: Heat Treated Aluminum Alloy
  • Magnet: Ceramic
  • Register Cover: Bronze
  • Trim: Stainless Steel
  • Inlet Screen: Stainless Steel with Elastomer

Dimensions & Weight

  • Overall Lay Length: 37 1/2"
  • Weight: 66 lbs.
  • Height (top of open gate valve to bottom of relief valve): 19"
  • Width: 10"

Certificates & Approvals

  • Meets AWWA C701 meter requirements
  • Meets design requirements of most national standards

FAQs

What is the primary purpose of the AMES 6000HMB-GPM unit?

The primary purpose is to protect drinking water supplies from dangerous cross-connections in non-potable applications, such as irrigation or fireline use, originating from temporary installations like fire hydrants. It also accurately measures water flow.

What type of coupling does the AMES 6000HMB-GPM use for connection?

The unit comes standard with a 2 1/2"-7 NST fire hose swivel coupling on the inlet, designed for connection to standard fire hydrant outlets.

What is the typical operating flow range for this portable hydrant backflow preventer?

The typical operating range for the AMES 6000HMB-GPM is 5 to 660 Gallons Per Minute (GPM) with an accuracy of ±1.5%.

What materials are used in the construction of the AMES 6000HMB-GPM for durability?

The housing is constructed from heat-treated aluminum alloy and stainless steel. The backflow preventer is specifically manufactured from 300 Series stainless steel for corrosion resistance.

Is the AMES 6000HMB-GPM approved for use in all plumbing systems?

While it meets AWWA C701 meter requirements and the design requirements of most national standards, it is illegal to use this product in any plumbing system providing water for human consumption in the United States. Always consult local water authorities before installation.
